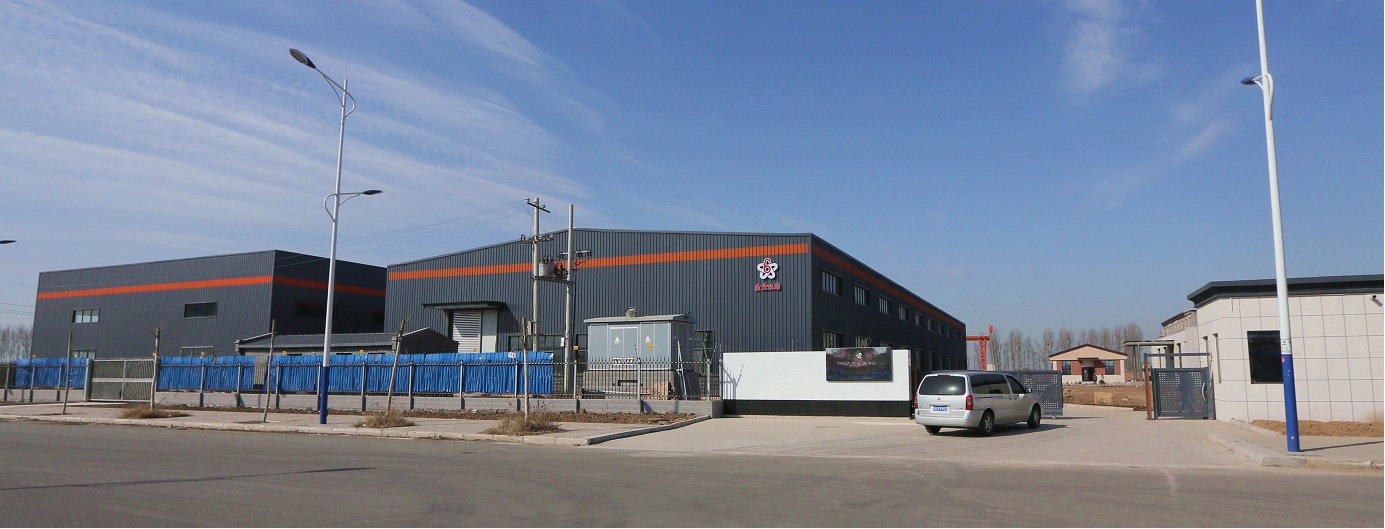

JINHE New Factory Video: https://www.youtube.com/watch?v=rGOYaFf6Ot8

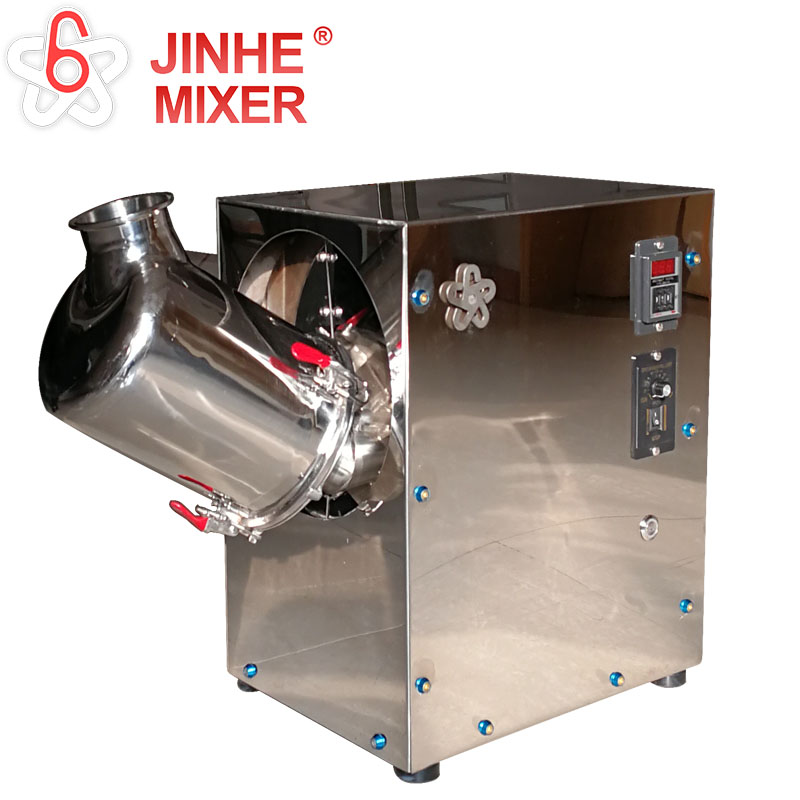

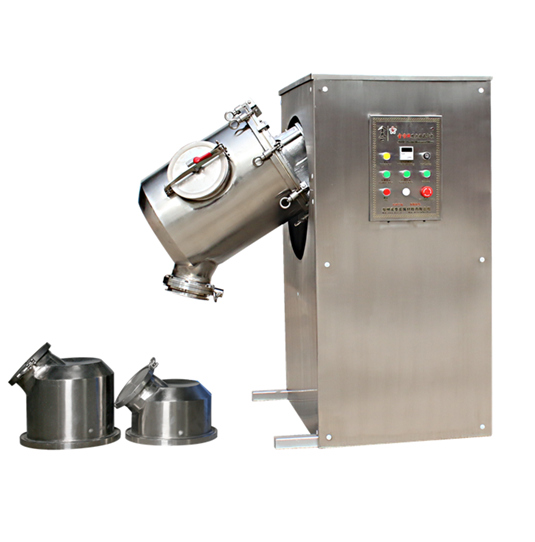

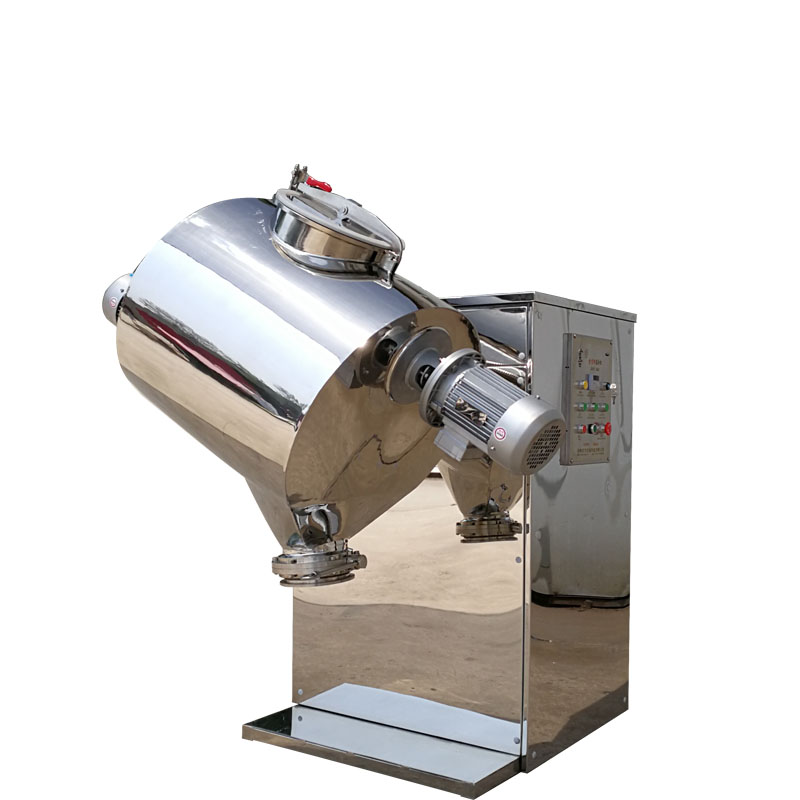

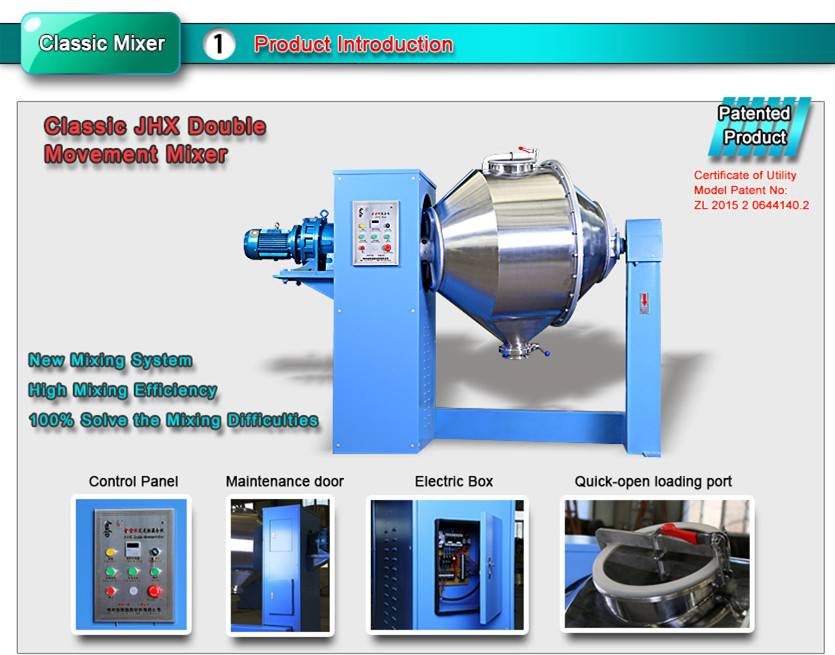

JHX Classic Double Dry Powder Mixing Machine

JINHE® JHX Double Movement Dry Metal Powder Chemical Industrial Mixer Machine is an advanced mixing machine which has proprietary intellectual property rights.

Our principle is make barrel turn around while full scale blade run independently. In addition, the barrel and blades turn around in different speed and different directions.

JHX series double motion Dry Powder Chemical Industrial mixing machine, its mainly acting part is made up of revolving double cones container which is placed declining, plus external revolving axis and internal helical blades components. Components with different revolving speed are driven by one power system. Between the helical blade's revolving axis and container it is sealed by special sealing components. When discharge material, customer can operate positive shake or reverse shake button on the panel to make container local shake and the revolving blade will speed up the discharging. All contact parts of this machine are made of high quality stainless steel.










Model

Barrel Capacity (L)

Max Loading Capacity
(L)

Barrel
Speed
(r/min)

Blades
Speed
(r/min)

Motor
Power
(kw)

Size
Length*Width*Height
(mm)

Weight

(kg)

JHX50 50 37.5 25 50 1.1 1500x620x1000 430
JHX100 100 75 23 46 1.1 1700x720x1200 500
JHX200 200 150 21 42 2.2 2050x830x1400 660
JHX400 400 300 21 42 3.0 2500x1010x1600 910
JHX600 600 450 17/14 34/28 3/5.5 2700x1120x1750 1200
JHX800 800 600 14 28 5.5 2900x1200x1850 2000
  JHX1000 1000 800 11 22 7.5 2550x1350x1900 2300
  JHX1500 1500 1200 8 16 15 2850x1870x2240 2600
  JHX2000 2000 1600 6 12 18.5 3200x1970x2470 2900
  JHX3000 3000 2400 6 12 22 3800x2100x2900 3500
  JHX5000 5000 4000 5.5 11 30 4500x2500x3200 4500
  JHX7000 7000 5600 5 10 37 4750x2650x3800 6000

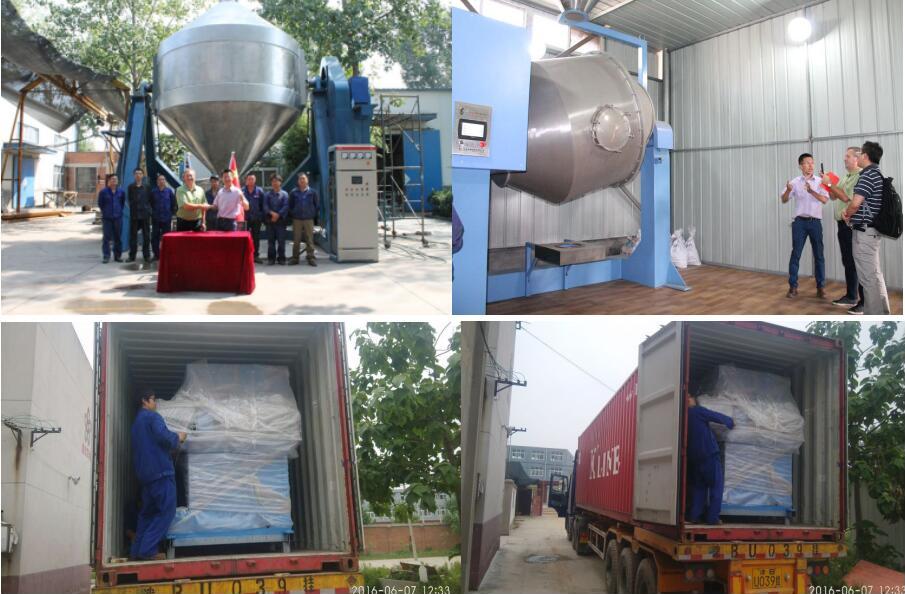

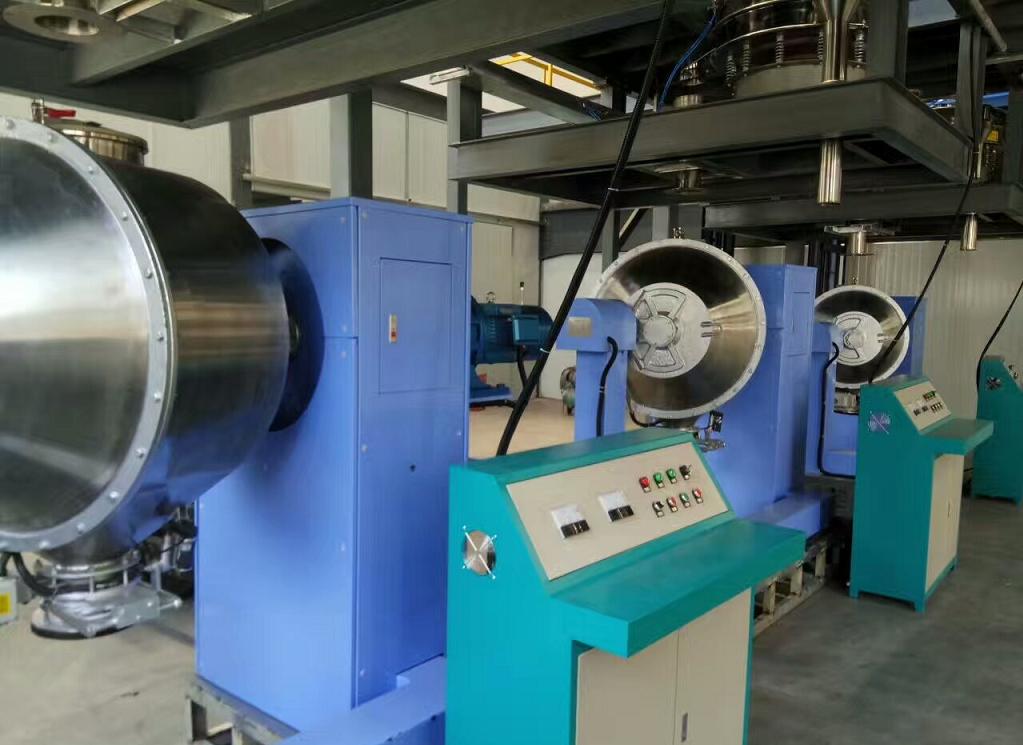

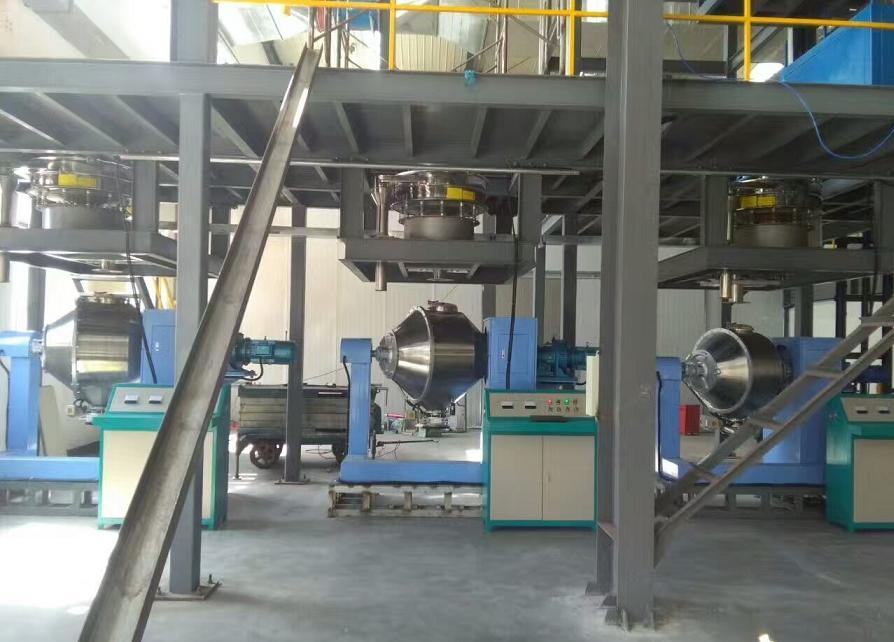

Customer Using Picture

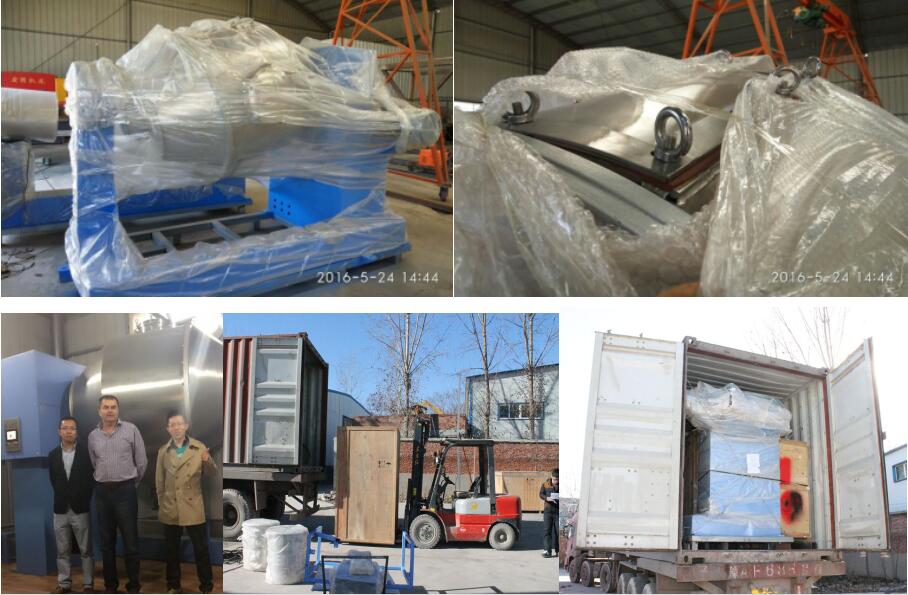

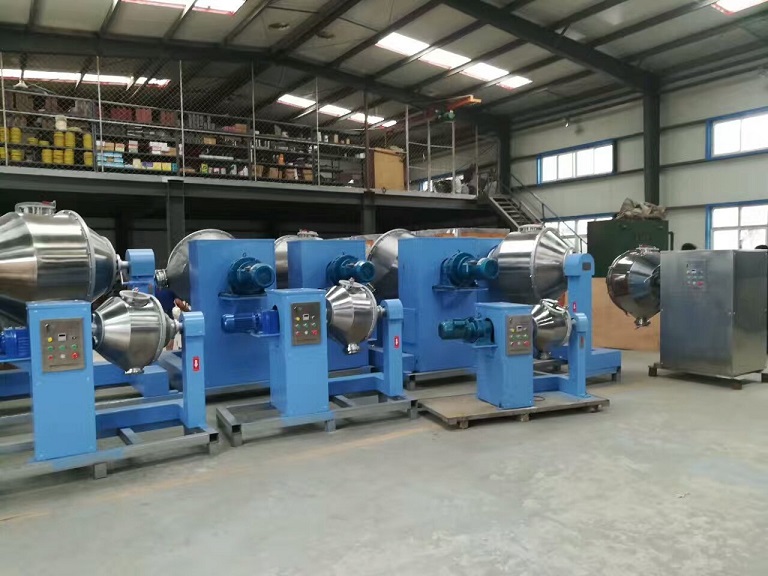

Double Motion Mixer Shipping Picture

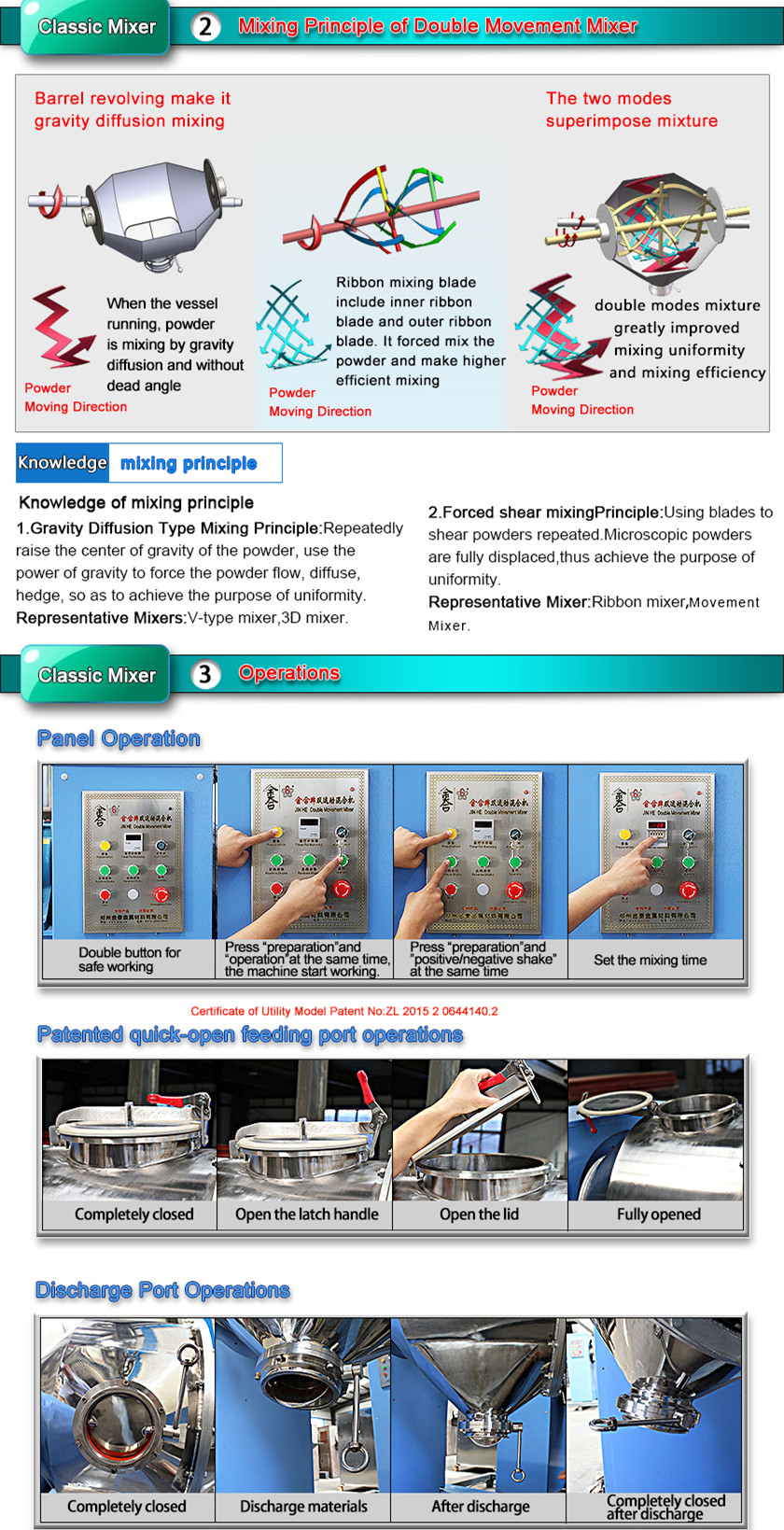

1st The two functions of container revolving around slant axis are completely eliminate dead angle on the bottom of container and make mixtures convected left and right, up and down to participate mixing directly.
2nd Relatively fast speed helical blades play major role in mixing. Moreover the helical blades including inside and outside blades. When inside blades revolving, the mixtures can be stirred in vertical direction meanwhile stirred from middle position to two sides. So our machine can mix materials more uniformly. Furthermore, the functions of helical blades' cutting, striking and so on.  After strict test, in the field of mixing metal alloy powder which has very strict requirement, if customer use traditional V shape mixer, it will take long time(some customer use 24 hours for v type mixer) to meet mixing criterion, but customer who use our mixer will only take half time before meeting standard. If the powders are ordinary type, several minutes will be okay.
3rd This series machine has better mixing effect for powders which has big difference in specific gravity. Because the revolving helical blades inside this machine have down force to powder, floating light powder can be pressed down into the heavy powder and mixed completely.

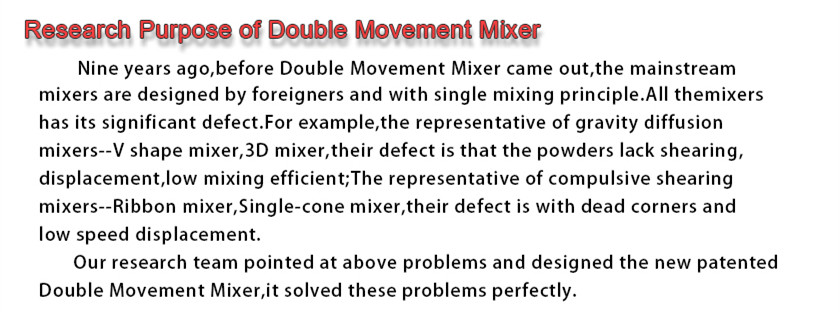

Research Purpose of JHX Double Movement Dry Powder Mixer Machine
Twenty years ago,before Double Movement Powder Mixer Machine came out,the mainstream dry powder  mixers are designed by foreigners and with single mixing principle.All the mixers has its significant defect.For example,the representative of gravity diffusion mixers--V shape mixer machine ,3D mixer machine,their defect is that the powders lack shearing,displacement,low mixing efficient;The representative of compulsive shearing mixers--Ribbon mixer,Single-cone mixer,their defect is with dead corners and low speed displacement.
Our research team pointed at above problems and designed the new patented Double Motion Dry Powder Mixer Machine,it solved these problems perfectly.

Eight Advantages of JHX Series Double Movement Dry Powder Mixer Machine

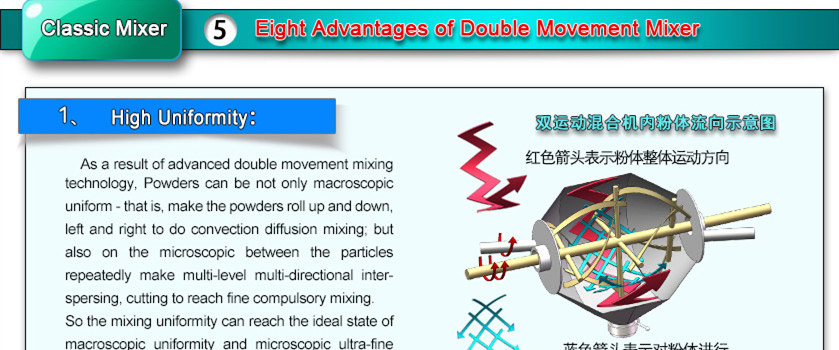

1. High Uniformity
As a result of advanced double movement powder mixing technology, Powders can be not only macroscopic uniform - that is, make the powders roll up and down, left and right to do convection diffusion mixing; but also on the microscopic between the particles repeatedly make multi-level multi-directional interspersing, cutting to reach fine compulsory dry powder mixing.
So the powder mixing uniformity can reach the ideal state of macroscopic uniformity and microscopic ultra-fine mixing uniform.

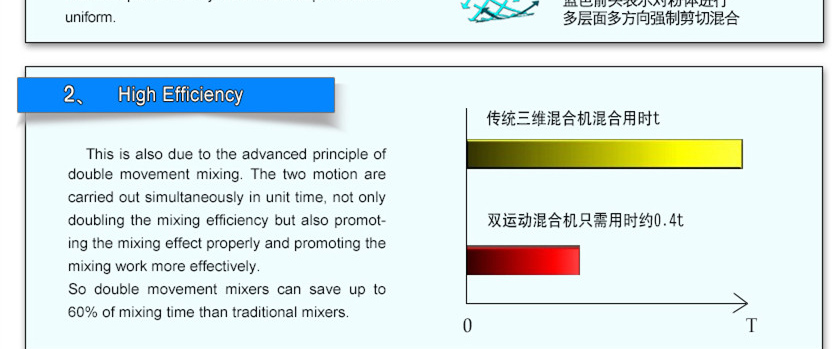

2. High Efficiency
This is also due to the advanced principle of double movement powder granule mixing or blending. The two motion are carried out simultaneously in unit time, not only doubling the powder and graunle mixing efficiency but also promoting the mixing effect properly and promoting the powder mixing work more effectively.
So double movement chemical industrail dry powder mixers can save up to 60% of mixing time than traditional powder blenders.

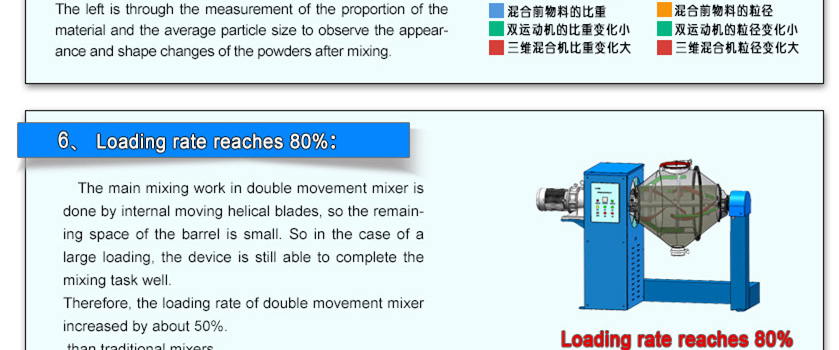

3. Loading rate reaches 80%
The main mixing work in double movement mixer is done by internal moving helical blades, so the remaining space of the barrel is small. So in the case of a large loading, the device is still able to complete the dry powder mixing task well.
Therefore, the loading rate of double movement mixer increased by about 50%.
 than traditional mixers.

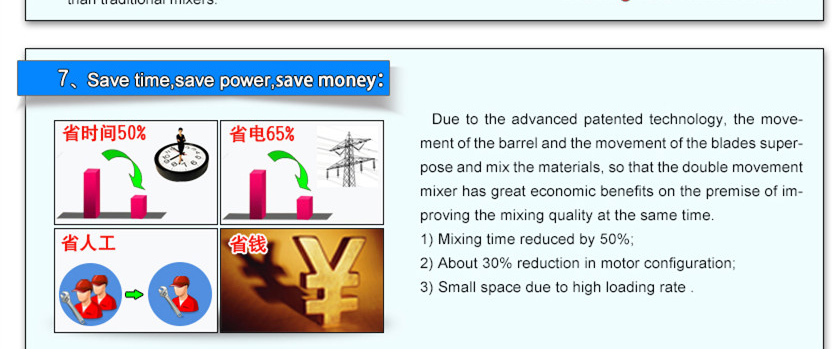

4. Money saving
Due to the advanced patented technology, the movement of the barrel and the movement of the blades superpose and mix the materials, so that the double motion dry powder mixer has great economic benefits on the premise of improving the mixing quality at the same time.
1) Mixing time reduced by 50%;
2) About 30% reduction in motor configuration;
3) Small space due to high loading rate.

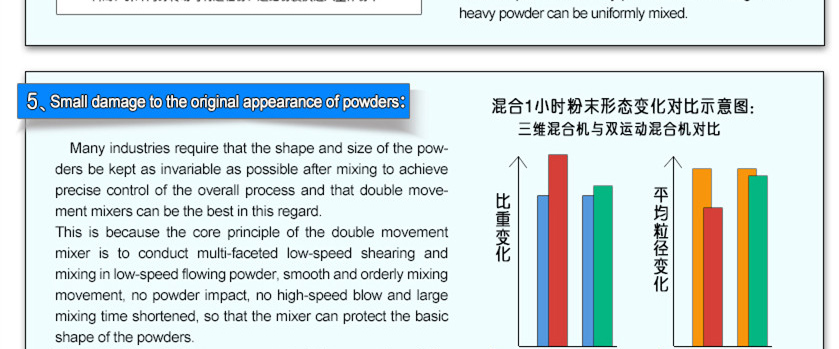

5. Small damage to the original appearance of mixing powders.
Many industries require that the shape and size of the powders be kept as invariable as possible after mixing to achieve precise control of the overall process and that double movement mixers can be the best in this regard.
This is because the core principle of the double movement mixer is to conduct multi-faceted low-speed shearing and mixing in low-speed flowing powder, smooth and orderly mixing movement, no powder impact, no high-speed blow and large mixing time shortened, so that the mixer can protect the basic shape of the powders.
The left is through the measurement of the proportion of the material and the average particle size to observe the appearance and shape changes of the powders after mixing.

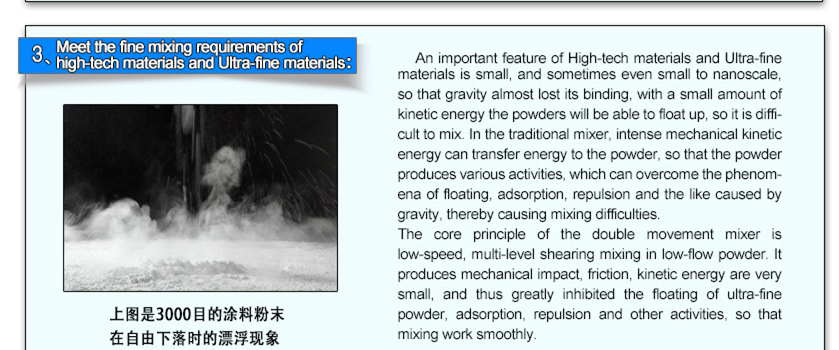

6. Meet the fine mixing requirements of high-tech materials and Ultra-fine materials

An important feature of High-tech materials and Ultra-fine materials is small, and sometimes even small to nanoscale, so that gravity almost lost its binding, with a small amount of kinetic energy the powders will be able to float up, so it is difficult to mix. In the traditional mixer, intense mechanical kinetic energy can transfer energy to the powder, so that the powder produces various activities, which can overcome the phenomena of floating, adsorption, repulsion and the like caused by gravity, thereby causing mixing difficulties.
The core principle of the double movement mixer is low-speed, multi-level shearing mixing in low-flow powder. It produces mechanical impact, friction, kinetic energy are very small, and thus greatly inhibited the floating of ultra-fine powder, adsorption, repulsion and other activities, so that mixing work smoothly.

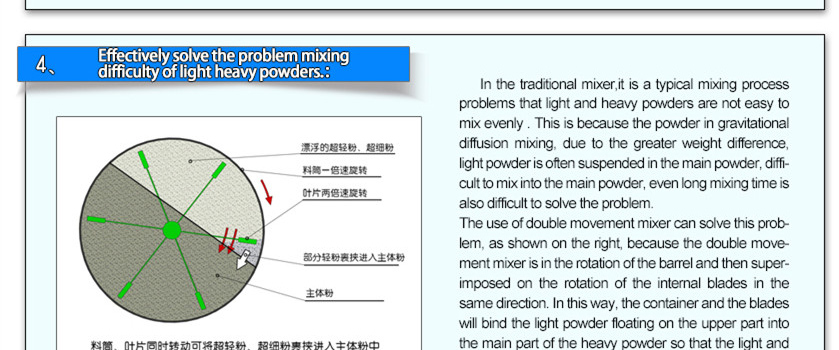

7. Effectively solve the problem mixing difficulty of light heavy powders.

In the traditional mixer,it is a typical mixing process problems that light and heavy powders are not easy to mix evenly . This is because the powder in gravitational diffusion mixing, due to the greater weight difference, light powder is often suspended in the main powder, difficult to mix into the main powder, even long mixing time is also difficult to solve the problem.
The use of double movement mixer can solve this problem, as shown on the right, because the double movement mixer is in the rotation of the barrel and then superimposed on the rotation of the internal blades in the same direction. In this way, the container and the blades will bind the light powder floating on the upper part into the main part of the heavy powder so that the light and heavy powder can be uniformly mixed.

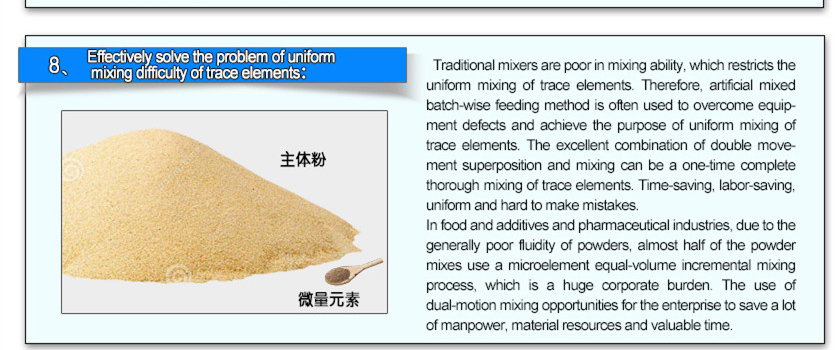

8. Effectively solve the problem of uniform powder mixing difficulty of trace elements

Traditional mixers are poor in mixing ability, which restricts the uniform mixing of trace elements. Therefore, artificial mixed batch-wise feeding method is often used to overcome equipment defects and achieve the purpose of uniform mixing of trace elements. The excellent combination of double movement superposition and mixing can be a one-time complete thorough mixing of trace elements. Time-saving, labor-saving, uniform and avoid making mistakes.
In food and additives and pharmaceutical industries, due to the generally poor fluidity of powders, almost half of the powder mixes use a microelement equal-volume incremental mixing process, which is a huge corporate burden. The use of dual-motion mixing opportunities for the enterprise to save a lot of manpower, material resources and valuable time.
