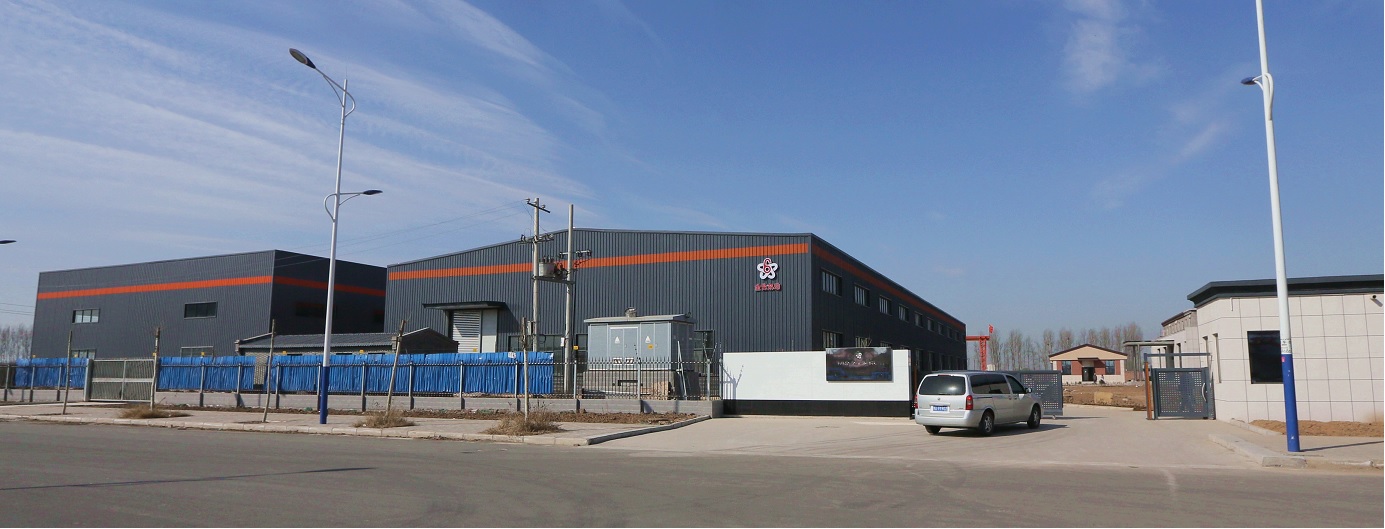

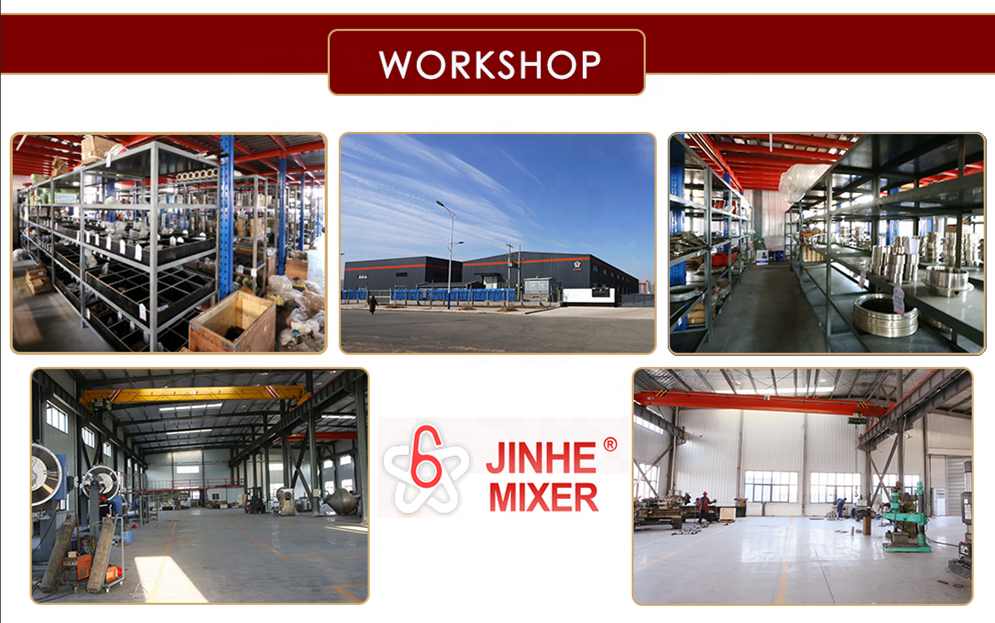

JINHE NEW factory Show

\
JINHE New Factory Video: https://www.youtube.com/watch?v=rGOYaFf6Ot8

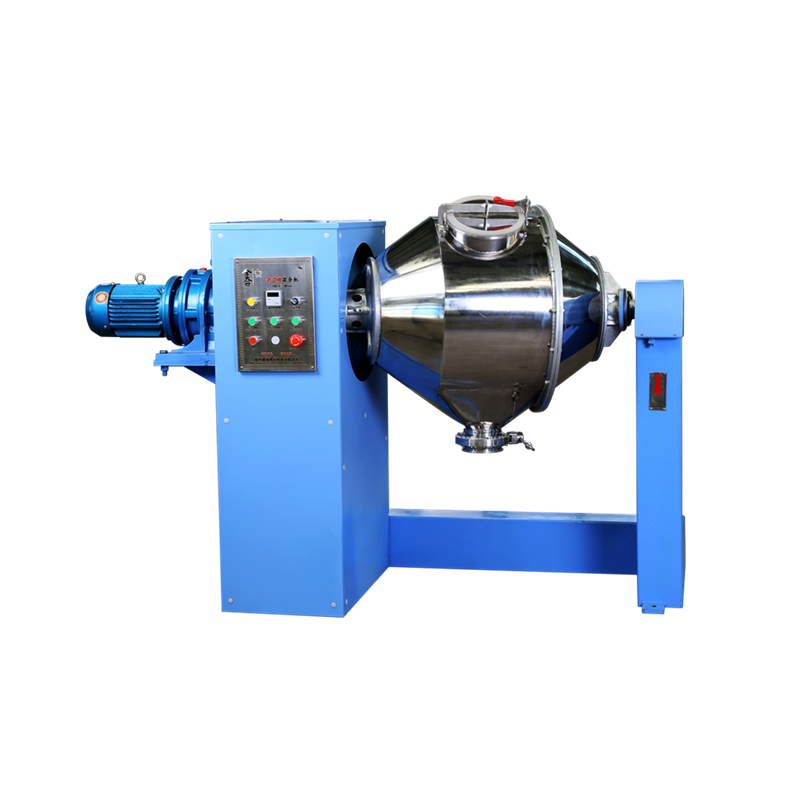

JINHE® JHN Series One machine Multiple Containers Double Movement Three Dimentional Vee shaped tumbler Powder Mixer machine.

Zhengzhou Jinhe Machinery Manufacture CO., LTD. had a good dream that one machine could install different volume containers as people pleases in one double movement Powder Three Dimentional Vee shaped tumbler Mixer machine and let the container and its inside blade revolving simultaneously. Thus in this way, one machine can be used as several machines which was just an extravagant hopes before the year 2012. However, the dream becomes true now!
\




\


Youtube Address:    www.youtube.com/user/asiamixer


\

\

\
\


Model

Barrel Capacity

(L)

Max Loading  Weight(kg)

Barrel Speed

(r/min)

Blades Speed

(r/min)

Motor Power

(kw)

Size
Length*Width*Height(mm)

JHN-15

11、15、18

35

23

60

0.37

1045*600*990

JHN-55

30~55L can be customized

60

22

55

1.1

1200*780*1250

JHN-110

60~110Lcan be customized

100

20

49

1.5

1300*820*1400

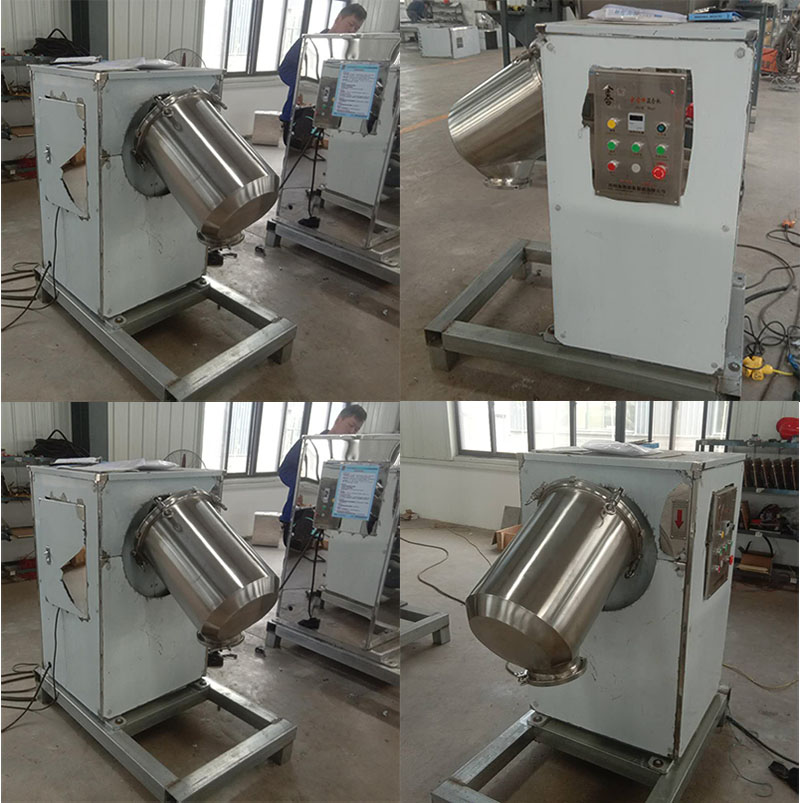

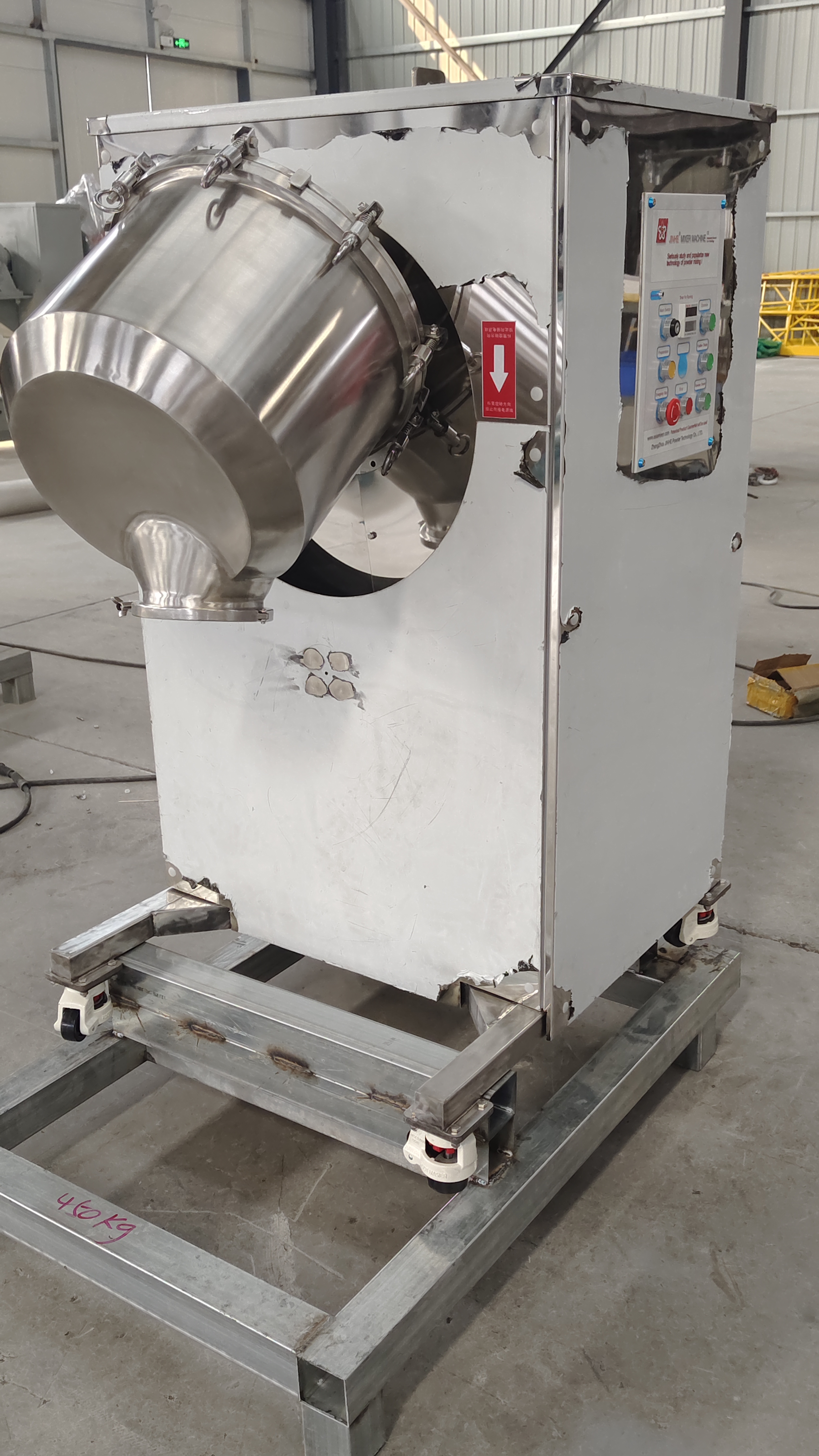

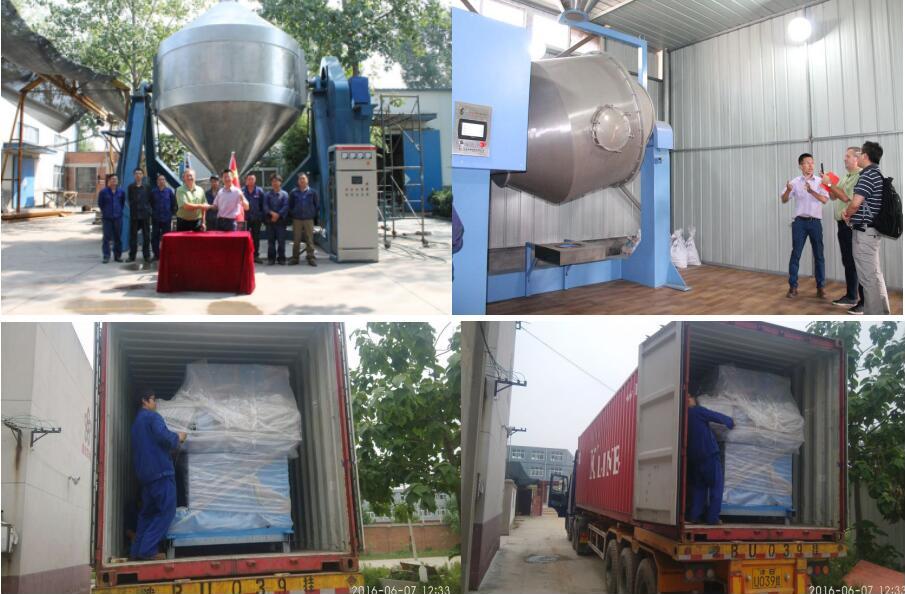

\\\\\\\\\\Customer Using Picture


\\\

Double Motion Mixer Shipping Picture

\
\\\
\\\

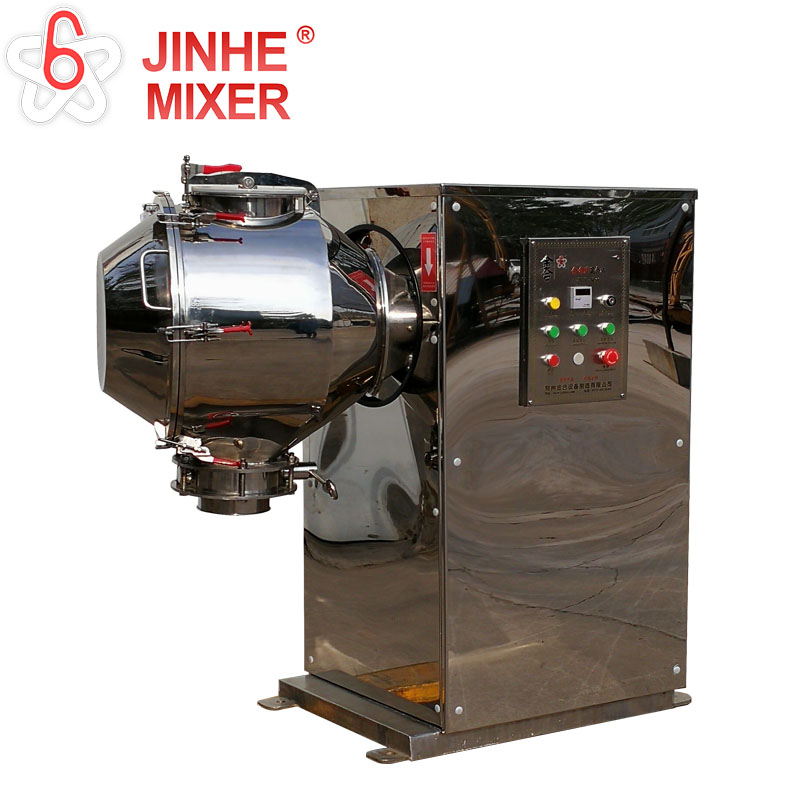

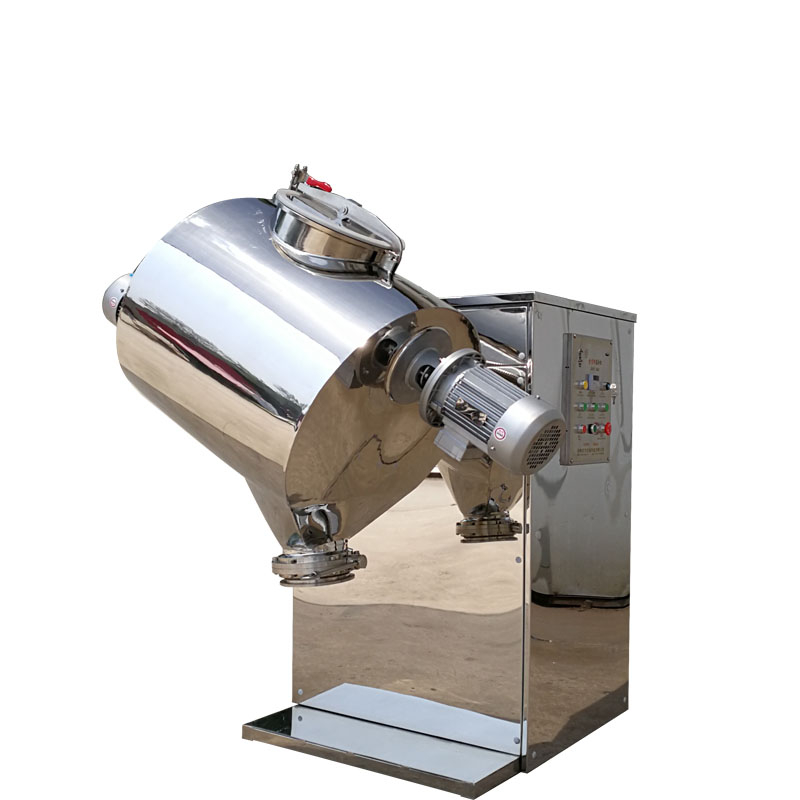

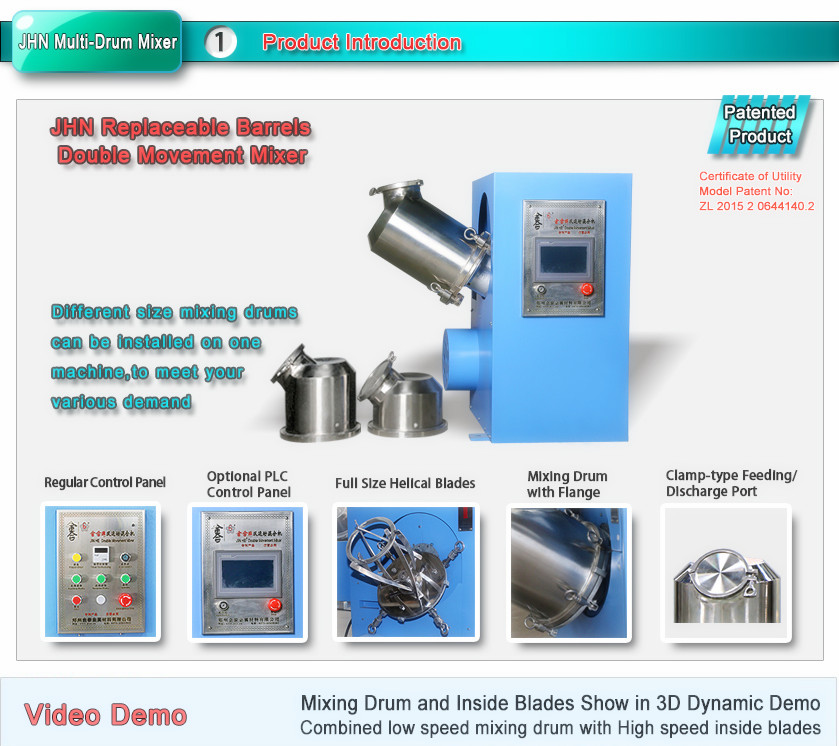

JHN series 3D drum tumble Powder Mixer is an excellent equipment which bears extraordinary imagination of our designers. It combine double movement mixing principle and complicate mixing task perfectly.

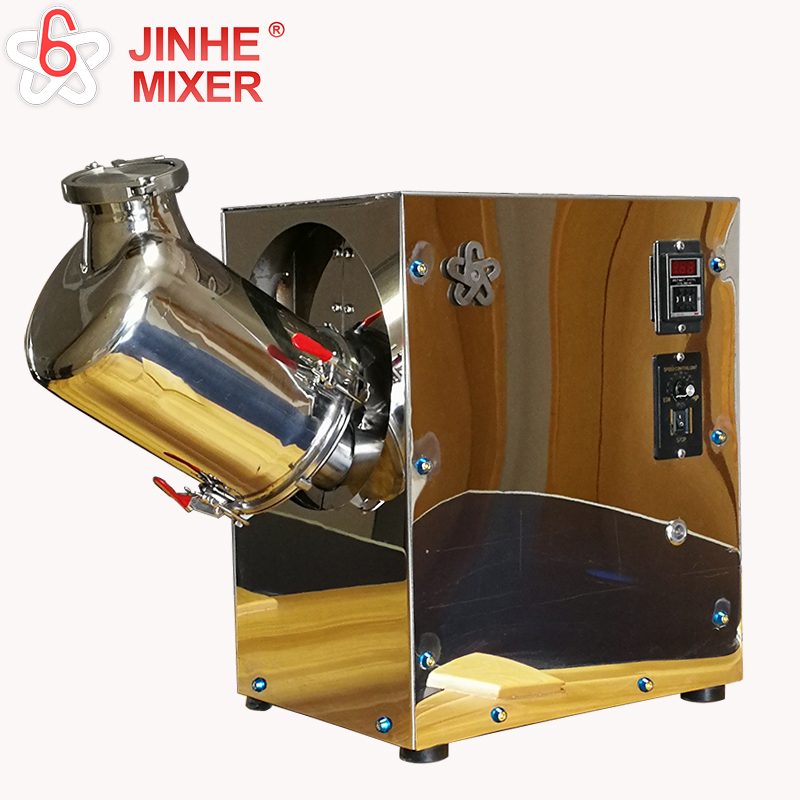

1st Different volume containers can be installed whenever needed. When customer install one 3 L container, it can be used as test for mini mixing. If install one 15L  container, it can finish small batch mixing task, fully develop the vast potential of the machine. In addtion, JHN55 three dimentional 3D tumbler mixer could load 20liters to 55liters vessel.

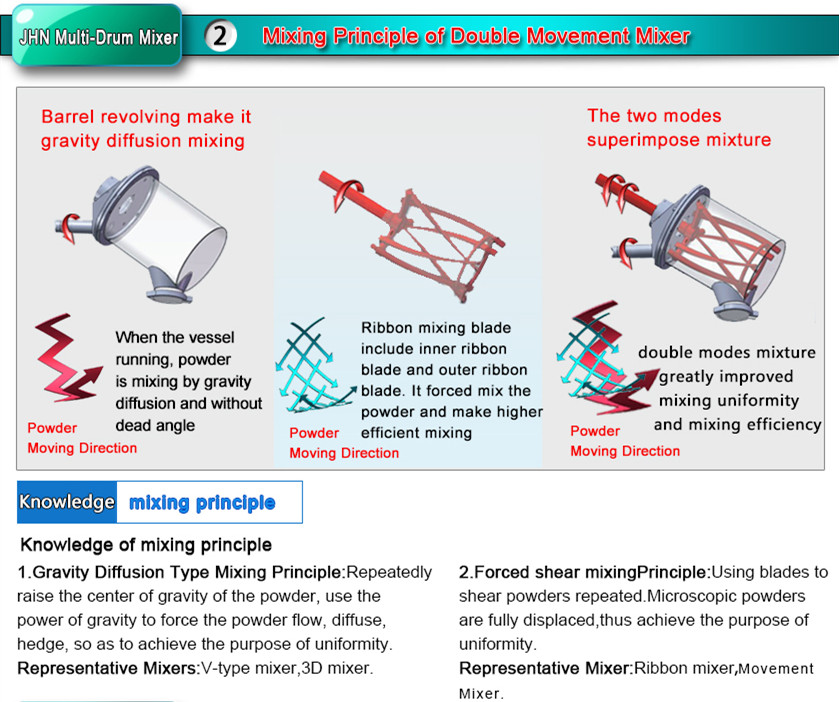

2nd Inherited the advantage of double movement mixing principle, this utility V type machine not only realize cross revolving shaft double movement, but also has its inherent advantages such as ideal mixing effect, large loading ratio, cost less time, saving electricity and money.

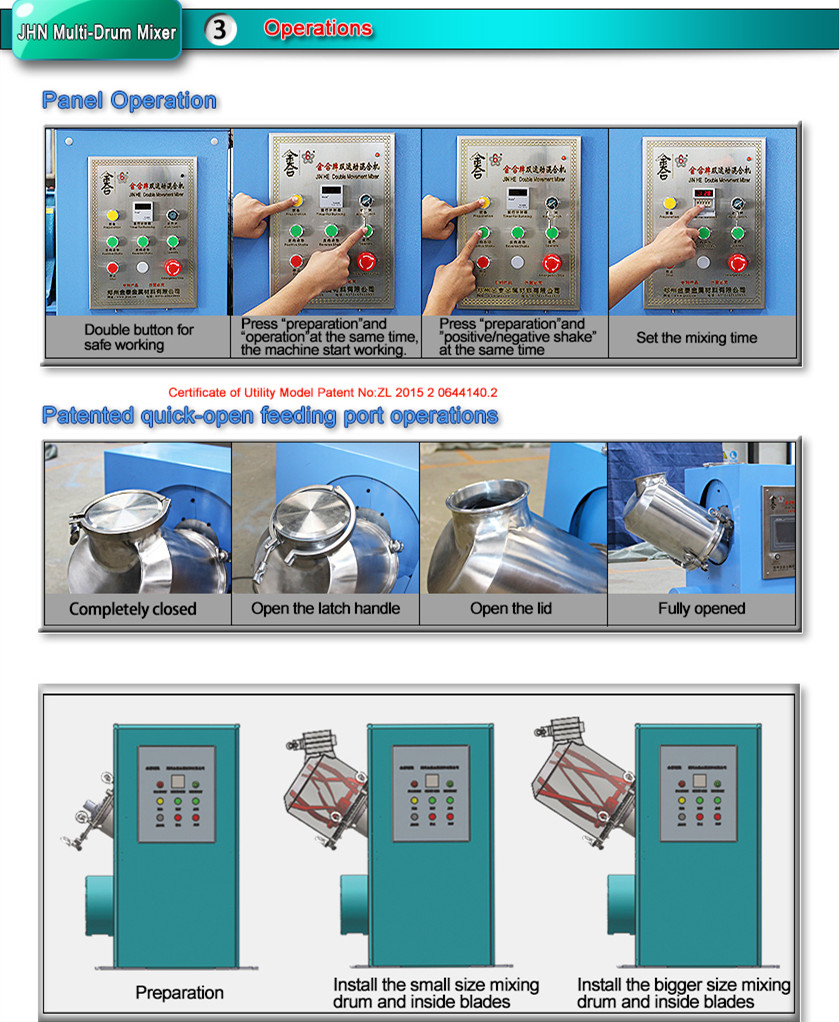

3rd Convenient installation: A skillful worker only needs 5 minutes to change and install containers.

4th Dismountable installation: containers can be used as special purpose, dismounted and cleaned whenever needed, so this machine can effectively prevent cross-contamination between batches.

JHN series three dimentional 3D shaped mixer machine Advantage Specialty:
1st One machine can be used as multiple machines. Different volume containers (3L-18L),(20L-55L),(50L-110L)can be installed whenever needed.

2nd Prevent cross-contaminations between batches. Easy loading and unloading. Convenient to clean the container.

3rd JHN V shaped 3D mixer machine Run more smoothly than others. Owing to the cantilever structure, the room of this equipment is shrink.

4th JHN 3D powder mixer machine also has advantage like "Ideal mixing effect" "High loading rate" "Time saving" and "Money saving" double movement advantage.

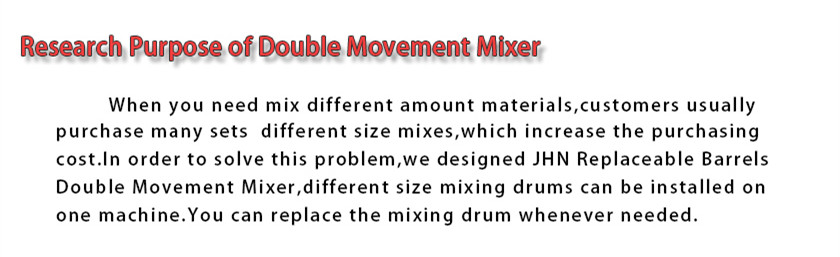

Research Purpose of JHN Double Movement Tumbler Blending Machine

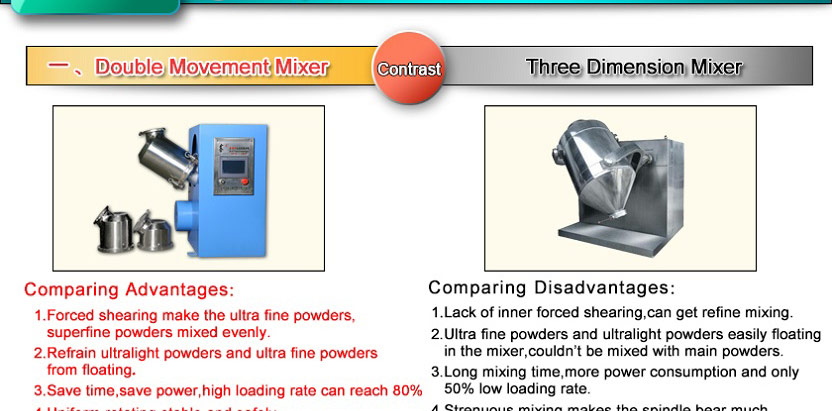

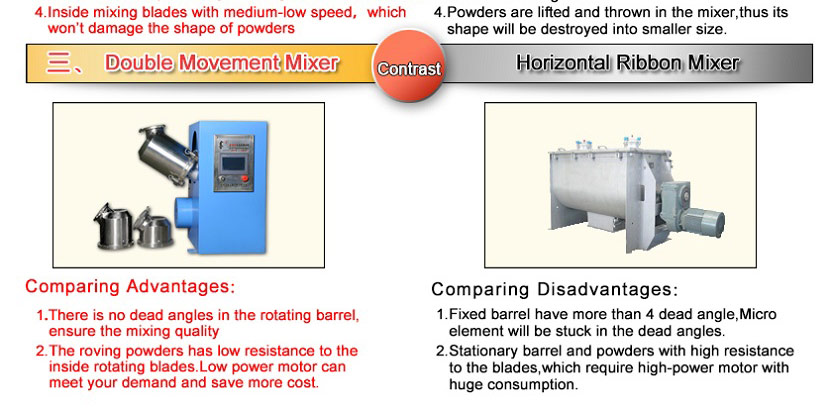

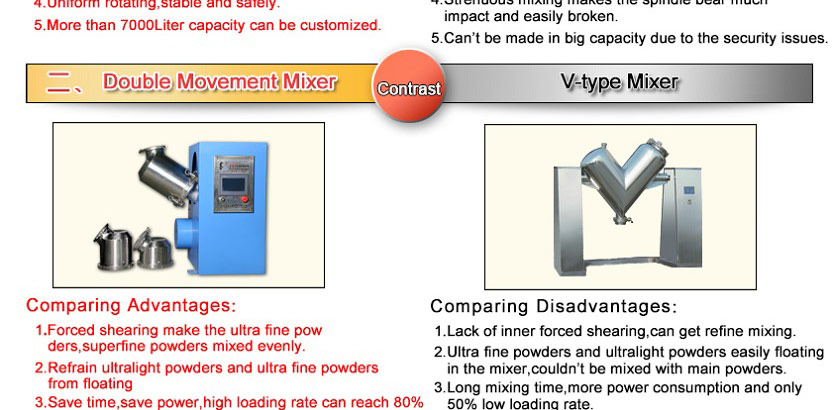

Nine years ago,before Double Movement 3D Mixer came out,the mainstream mixers are designed by foreigners and with single mixing principle.All the mixers has its significant defect.For example,the representative of gravity diffusion mixers--V shape mixer,3D mixer,their defect is that the powders lack shearing,displacement,low mixing efficient;The representative of compulsive shearing mixers--Ribbon mixer,Single-cone mixer,their defect is with dead corners and low speed displacement.
Our research team pointed at above problems and designed the new patented Double Movement Mixer,it solved these problems perfectly.

Eight Advantages of JHN Series Double Movement V type Mixing Machine

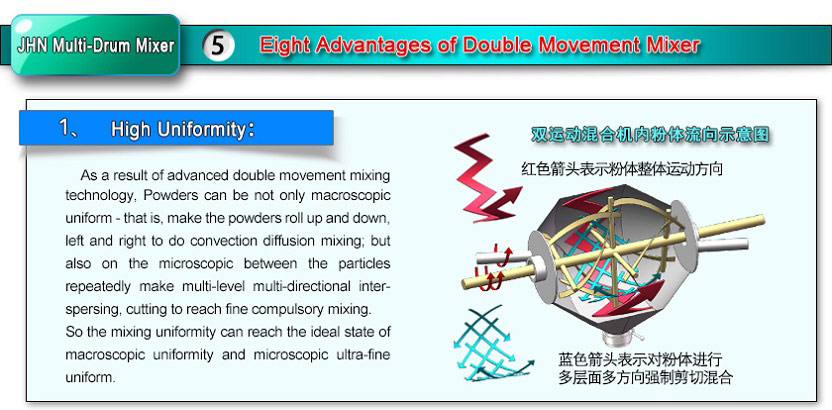

1. High Uniformity

As a result of advanced double movement mixing technology, Powders can be not only macroscopic uniform - that is, make the powders roll up and down, left and right to do convection diffusion mixing; but also on the microscopic between the particles repeatedly make multi-level multi-directional interspersing, cutting to reach fine compulsory mixing.
So the mixing uniformity can reach the ideal state of macroscopic uniformity and microscopic ultra-fine uniform.

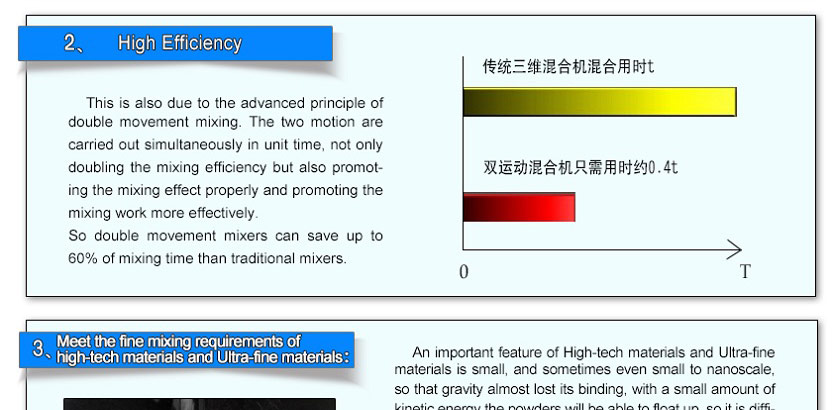

2. High Efficiency
This is also due to the advanced principle of double movement mixing. The two motion are carried out simultaneously in unit time, not only doubling the mixing efficiency but also promoting the mixing effect properly and promoting the mixing work more effectively.
So double movement mixers can save up to 60% of mixing time than traditional mixers.

3. Loading rate reaches 80%
The main mixing work in double movement mixer is done by internal moving helical blades, so the remaining space of the barrel is small. So in the case of a large loading, the device is still able to complete the mixing task well.
Therefore, the loading rate of double movement mixer increased by about 50%.
 than traditional mixers.

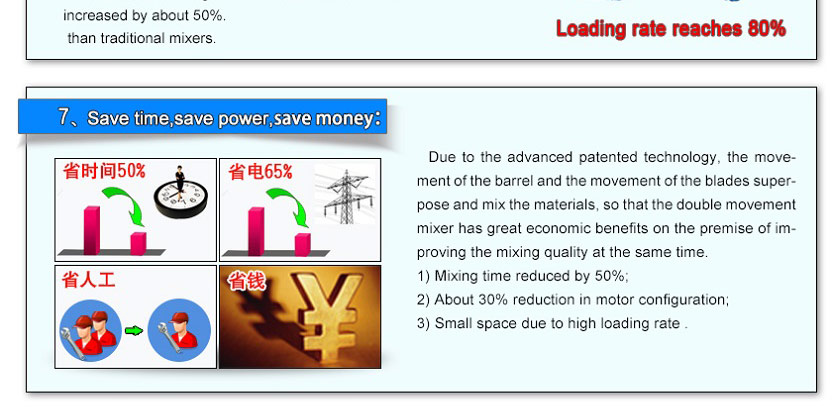

4. Money saving
Due to the advanced patented technology, the movement of the barrel and the movement of the blades superpose and mix the materials, so that the double movement V-mixer has great economic benefits on the premise of improving the mixing quality at the same time.
1) Mixing time reduced by 50%;
2) About 30% reduction in motor configuration;
3) Small space due to high loading rate .

5. Small damage to the original appearance of powders.
Many industries require that the shape and size of the powders be kept as invariable as possible after mixing to achieve precise control of the overall process and that double movement mixers can be the best in this regard.
This is because the core principle of the double movement mixer is to conduct multi-faceted low-speed shearing and mixing in low-speed flowing powder, smooth and orderly mixing movement, no powder impact, no high-speed blow and large mixing time shortened, so that the mixer can protect the basic shape of the powders.

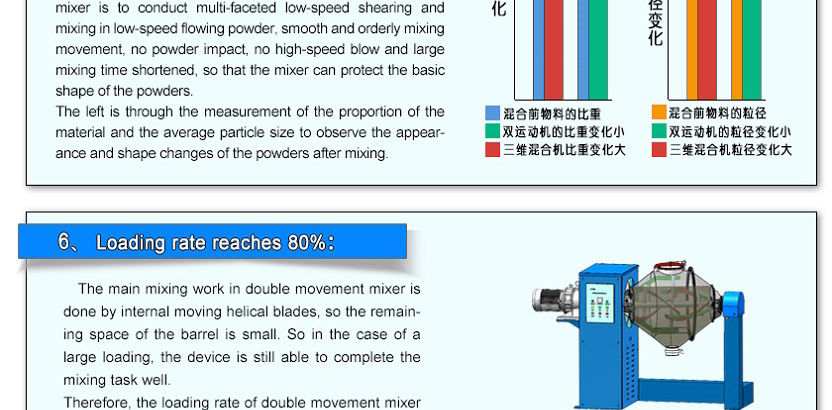

The left is through the measurement of the proportion of the material and the average particle size to observe the appearance and shape changes of the powders after mixing.

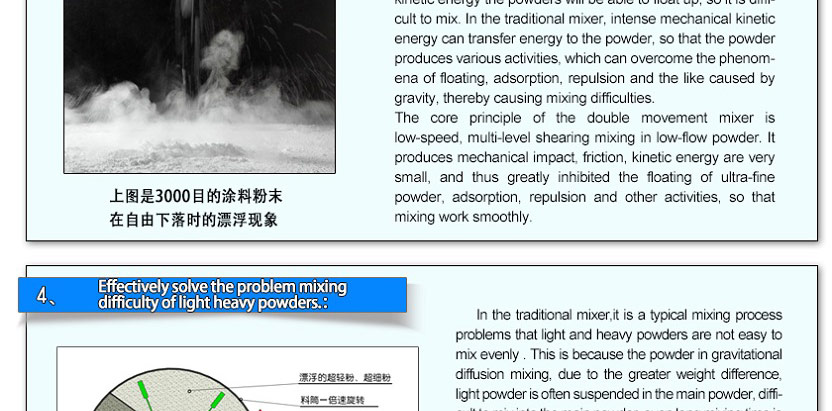

6. Meet the fine mixing requirements of high-tech materials and Ultra-fine materials

An important feature of High-tech materials and Ultra-fine materials is small, and sometimes even small to nanoscale, so that gravity almost lost its binding, with a small amount of kinetic energy the powders will be able to float up, so it is difficult to mix. In the traditional mixer, intense mechanical kinetic energy can transfer energy to the powder, so that the powder produces various activities, which can overcome the phenomena of floating, adsorption, repulsion and the like caused by gravity, thereby causing mixing difficulties.
The core principle of the double movement mixer is low-speed, multi-level shearing mixing in low-flow powder. It produces mechanical impact, friction, kinetic energy are very small, and thus greatly inhibited the floating of ultra-fine powder, adsorption, repulsion and other activities, so that mixing work smoothly.

7. Effectively solve the problem mixing difficulty of light heavy powders.

In the traditional mixer,it is a typical mixing process problems that light and heavy powders are not easy to mix evenly . This is because the powder in gravitational diffusion mixing, due to the greater weight difference, light powder is often suspended in the main powder, difficult to mix into the main powder, even long mixing time is also difficult to solve the problem.

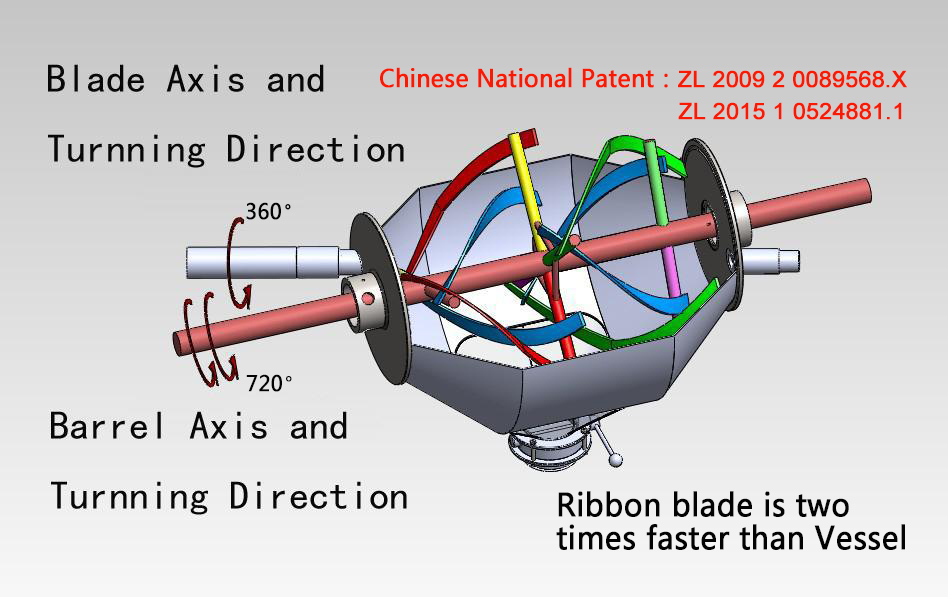

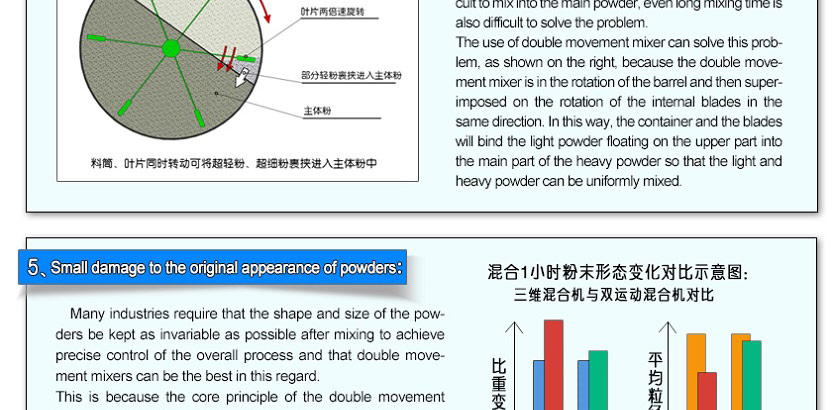

The use of double movement mixer can solve this problem, as shown on the right, because the double movement mixer is in the rotation of the barrel and then superimposed on the rotation of the internal blades in the same direction. In this way, the container and the blades will bind the light powder floating on the upper part into the main part of the heavy powder so that the light and heavy powder can be uniformly mixed.

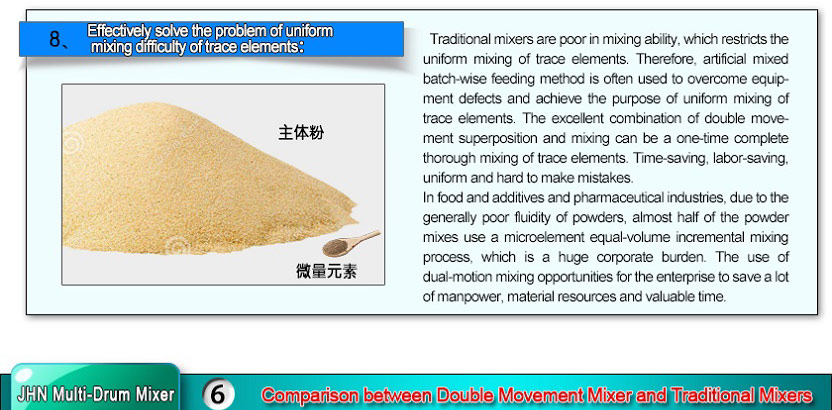

8. Effectively solve the problem of uniform mixing difficulty of trace elements

Traditional v-mixers are poor in mixing ability, which restricts the uniform mixing of trace elements. Therefore, artificial mixed batch-wise feeding method is often used to overcome equipment defects and achieve the purpose of uniform mixing of trace elements. The excellent combination of double movement superposition and mixing can be a one-time complete thorough mixing of trace elements. Time-saving, labor-saving, uniform and hard to make mistakes.
In food and additives and pharmaceutical industries, due to the generally poor fluidity of powders, almost half of the powder mixes use a microelement equal-volume incremental mixing process, which is a huge corporate burden. The use of dual motion V-mixing opportunities for the enterprise to save a lot of manpower, material resources and valuable time.\
