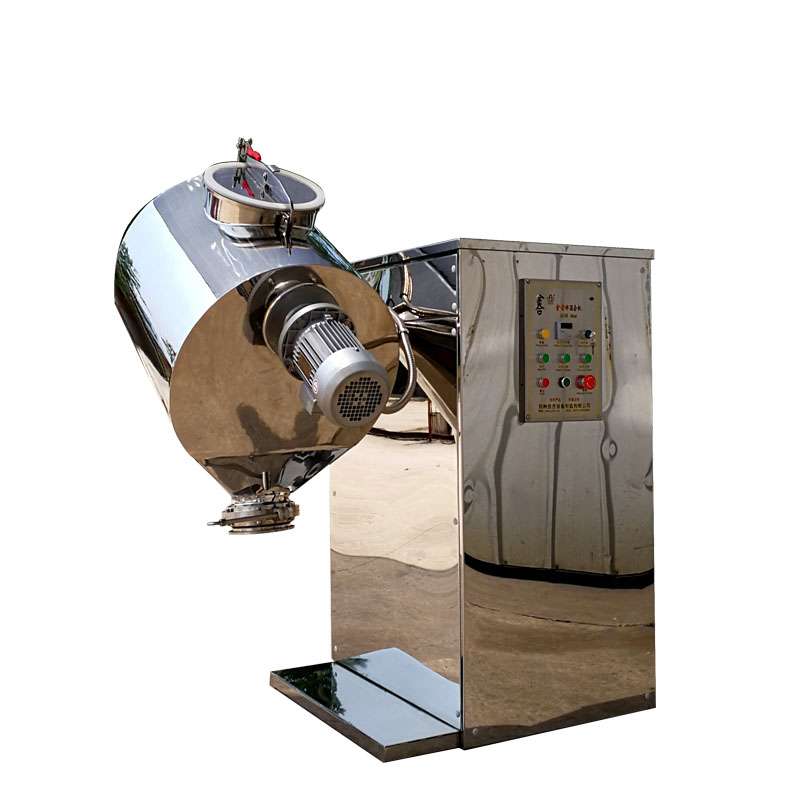

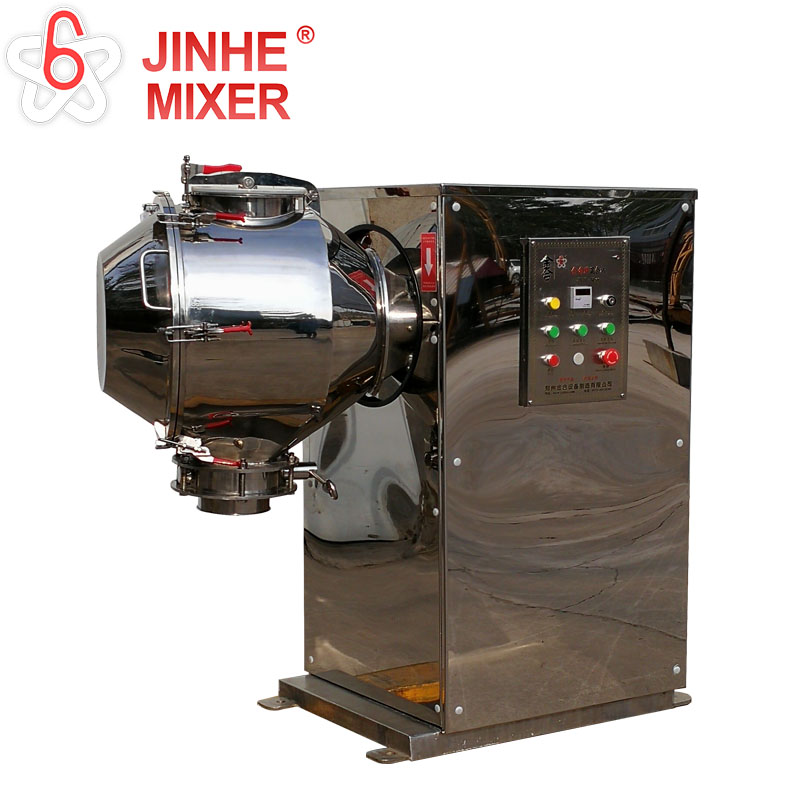

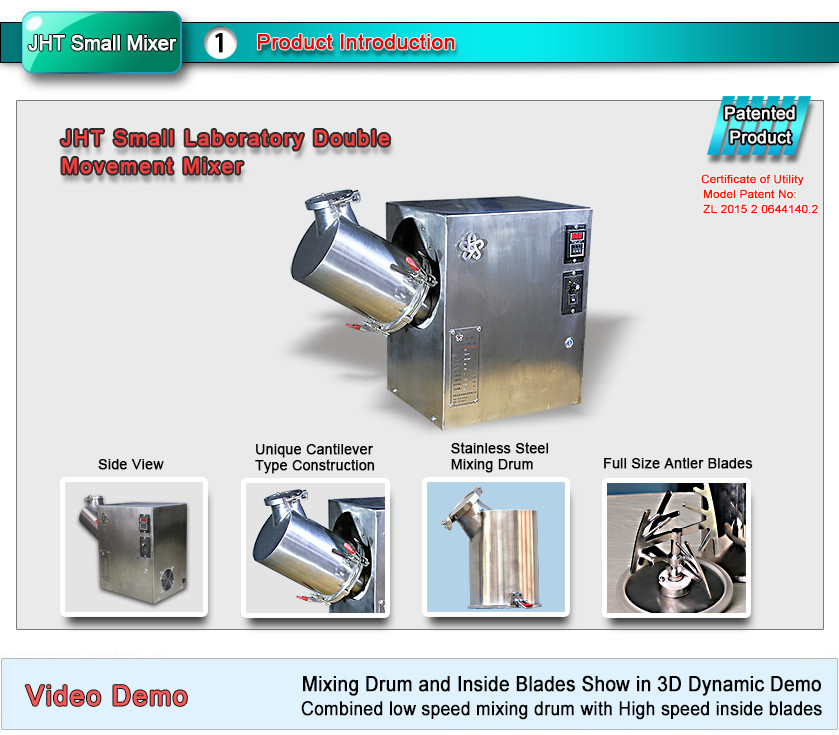

JHT Small lab usding Laboratory Drum Mixer Machine

This small table-top laboratory using drum mixer can be installed in different sizes of the vessel(2L~5L)(5L~10L)(12~20L).It's convenient to remove and clean up the whole vessel and blades,prevent cross-contamination materials and meet your multiple small batch mixing experiment tasks.

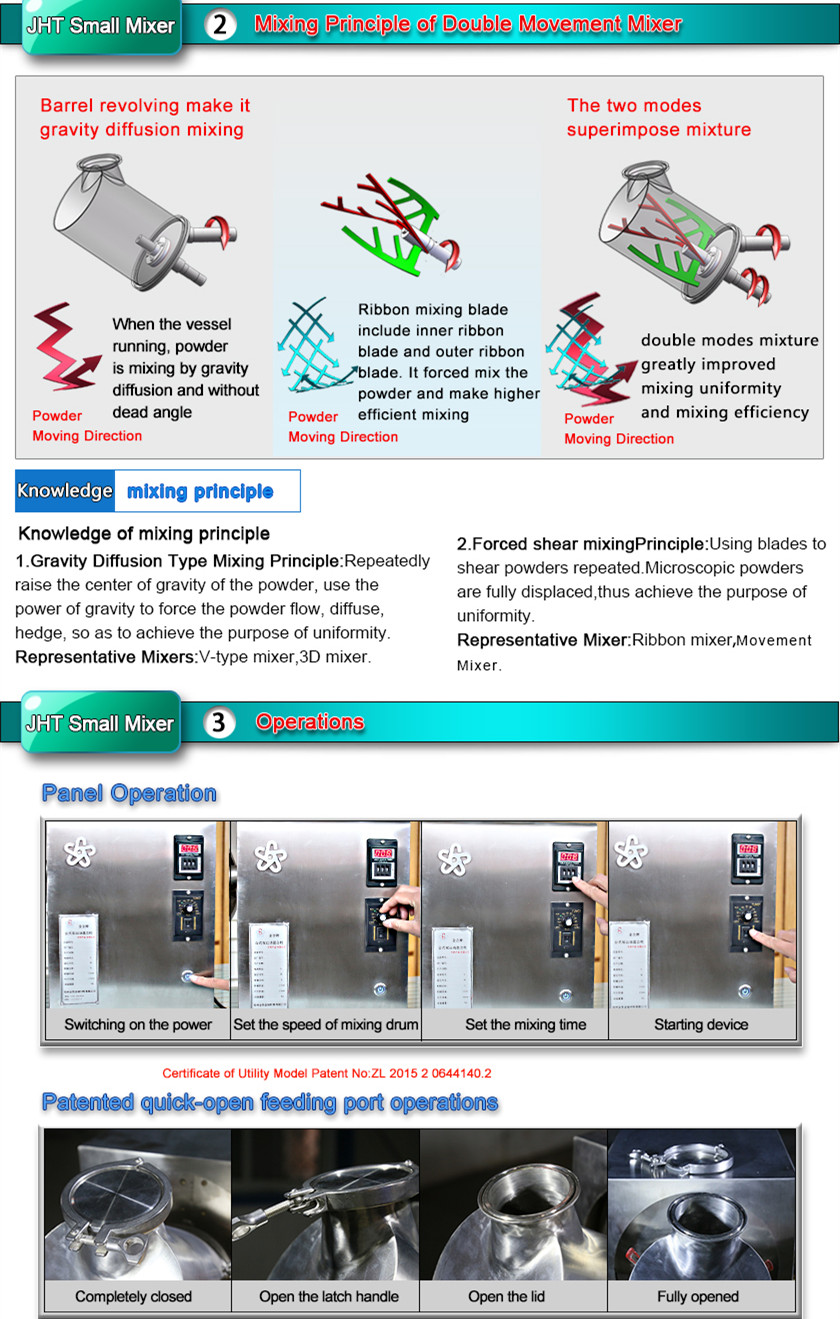

  This kind of lab using drum mixer has special antler shaped blades and the speed of the blades is 1.5 times as the vessel.During the material up and down or convection in the vessel,high evenness of mixing task can be completed because of the bidirectional shear and toggle of the antler shaped blades .
\




​Youtube Address:    www.youtube.com/user/asiamixer


\
\



\

Model

Barrel Capacity(L)

Max Loading Weight(kg)

Barrel Speed(r/min)

Blades Speed(r/min)

Motor Power(kw)

Size
Lenghth*Width*Height(mm)

JHT-5

2~5L

5

0~35

0~52

0.25

540*325*390

JHT-10

6~12L

10

0~28

0~39

0.55

550*325*390

 JHT-20

       15~20L        20       0~25        0~63        0.55         890*450*650

\\\\\\\\\

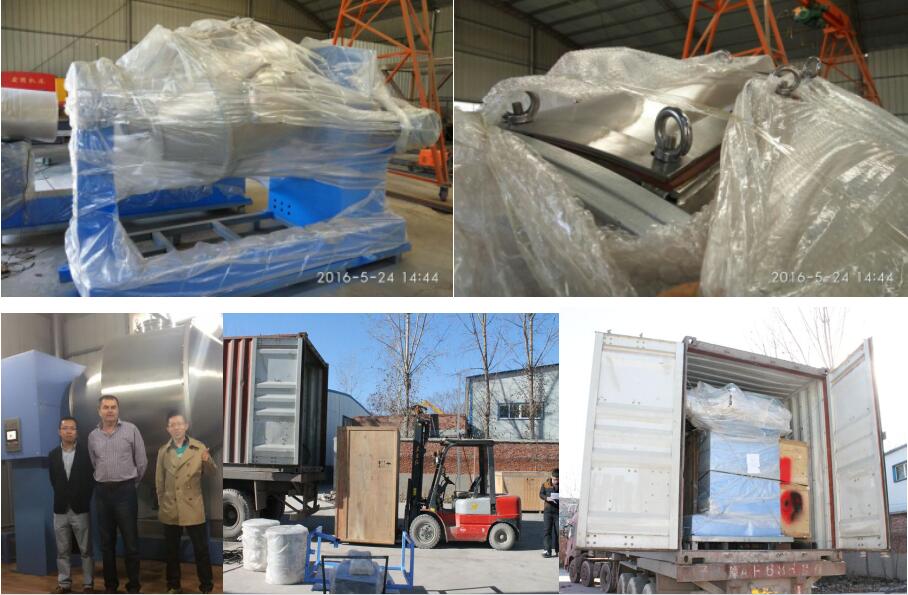

Double Motion Mixers Shipping Picture

\
\\\
\\\

 This is a speed (2~35r/min) of the double movement of energy efficient mixing machine and it can meet your a variety of hybrid experiment.
Small-sized:
  The out-form  dimensions are 540*300*390mm and the single-phase electric power is 220V. So you can put it on the laboratory desk and it can be handled easily.

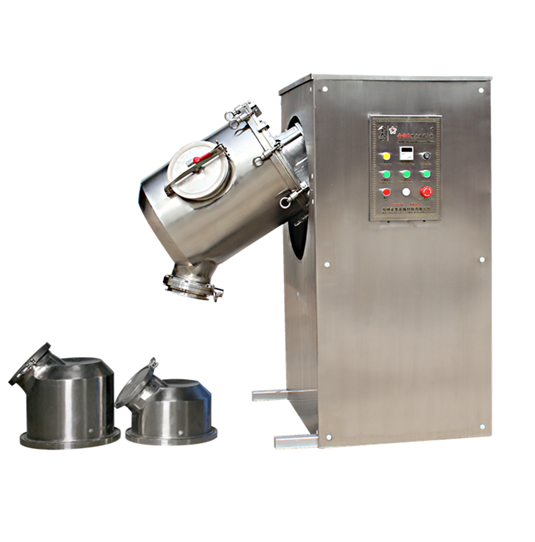

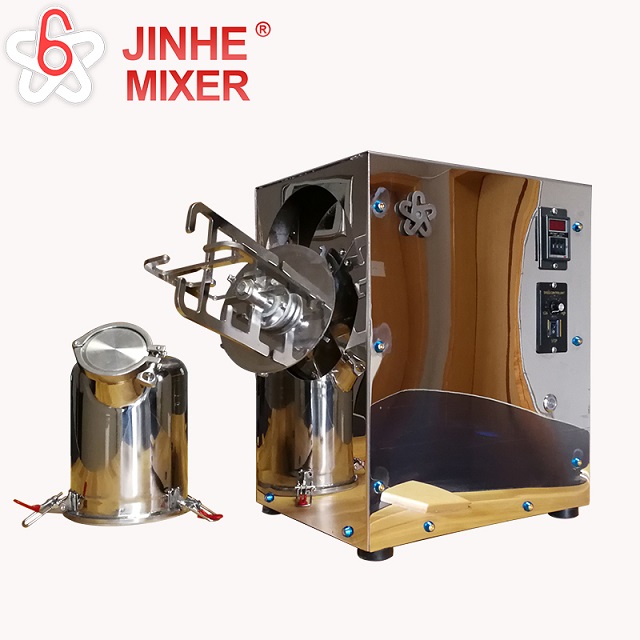

One Machine Multiple Containers
  One machine can be used as multiple machines. Different volume containers
(2L~5L)(5L~10L)(12~20L)can be installed whenever needed.

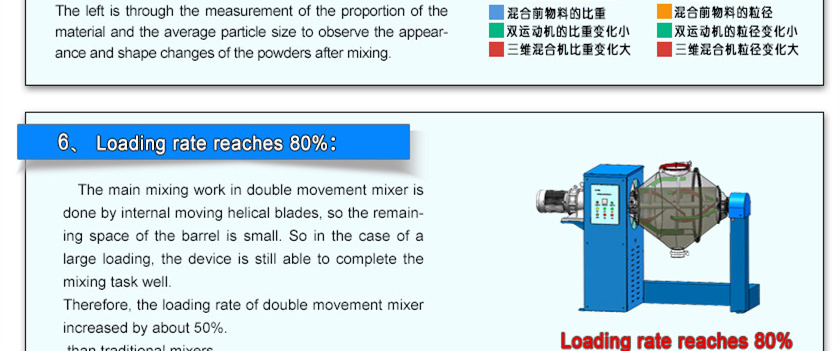

High Loading Ratio:

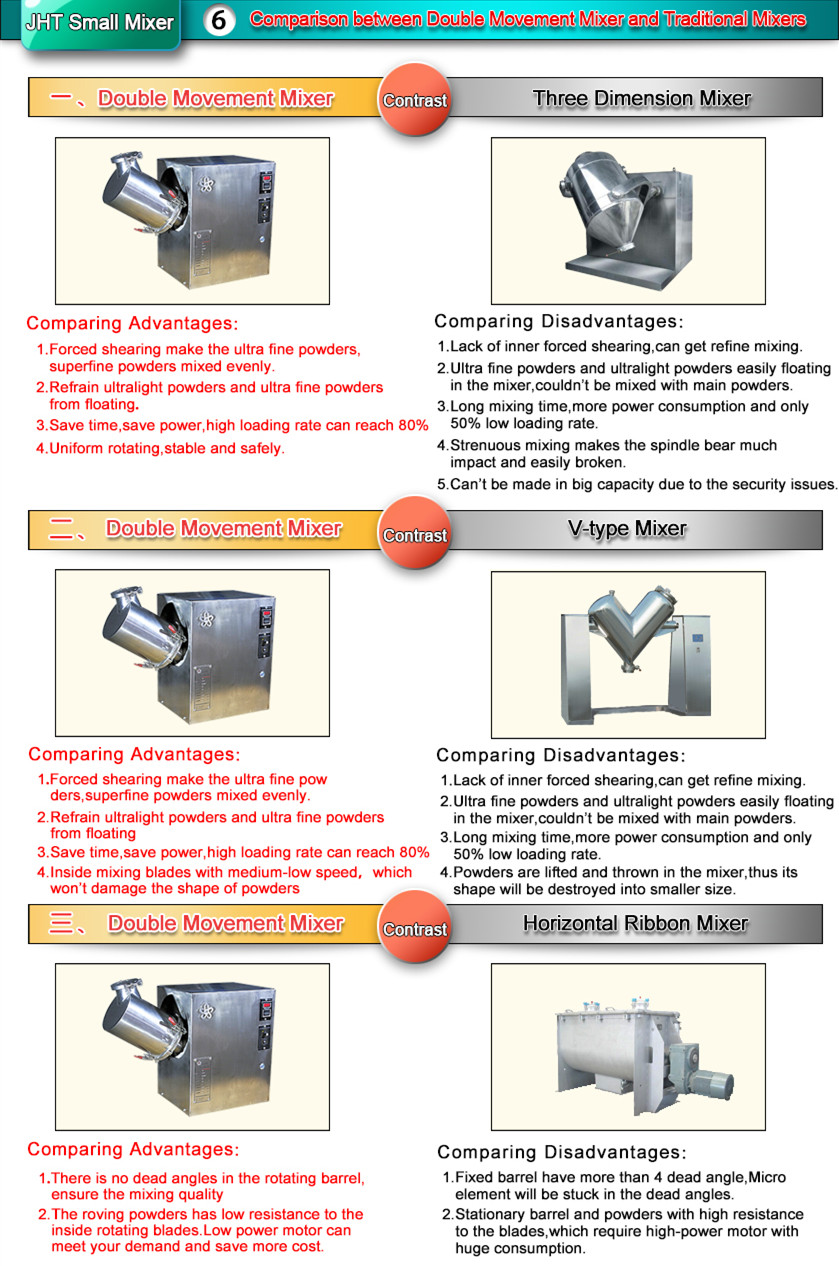

  Compared with ordinary 3D mixer, ours' loading ratio is much higher. Because blades take major role in machine working. That is why our double movement mixer's loading ratio is high, max. Loading rate can reach 80% of barrel. For the same volume, the loading capacity of our one machine is almost equivalent to two 3D mixers.

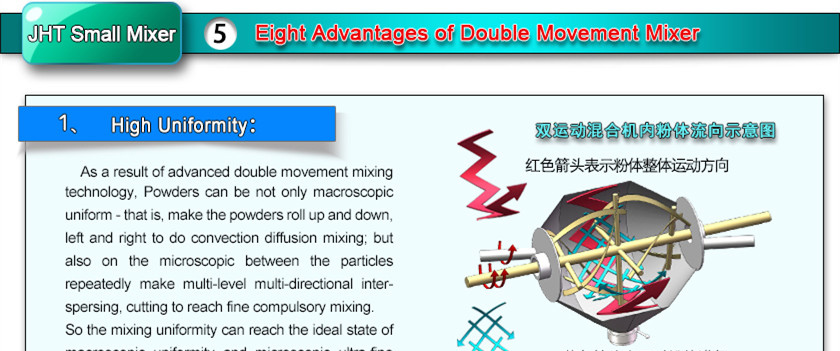

Ideal Mixing Effect:
  100% no dead corner. Due to the barrel revolving, the machine can mix more evenly in general points. While blades stirring, the machine can mix more meticulously and completely in detail points.

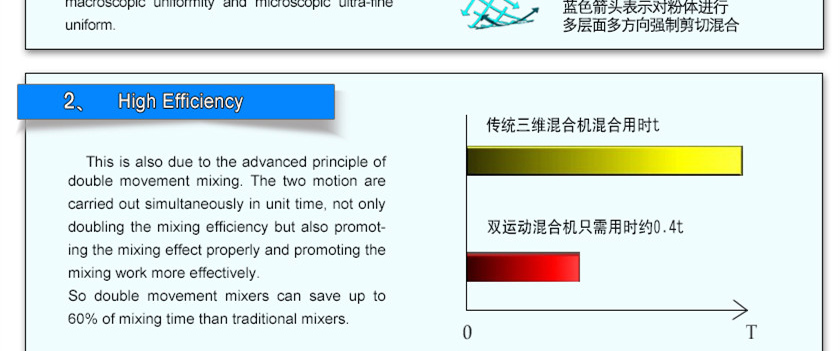

Time-saving:
  The mixing way of our double movement mixer is two mixing ways superposed together, that is why our machine has high efficiency. Compared with 3D mixer, ours can save 60% time to meet mixing standard.

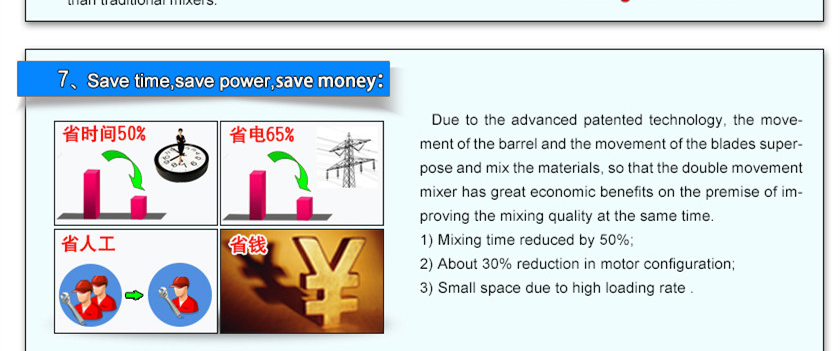

Money-saving:
   Compared with traditional mixer, ours can save time above 50%, save electricity about 70%, save space about 50%, money saving about 30%.
\
