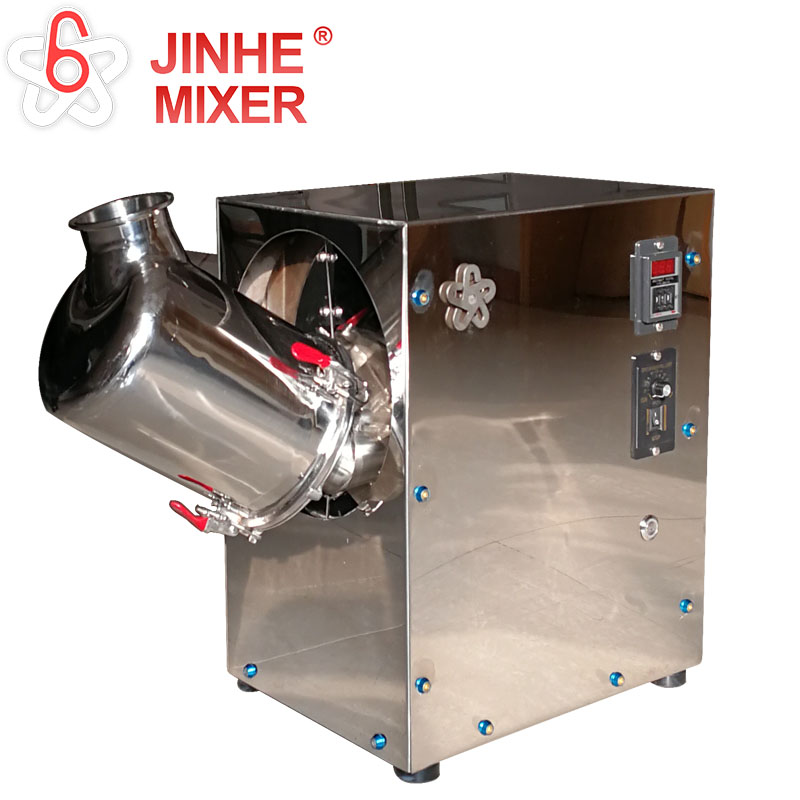

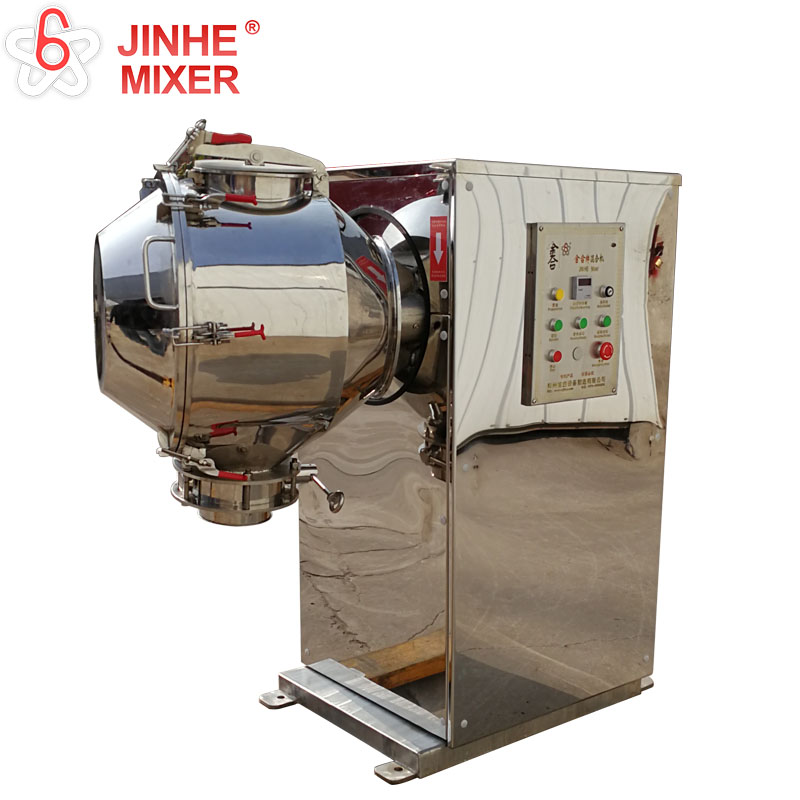

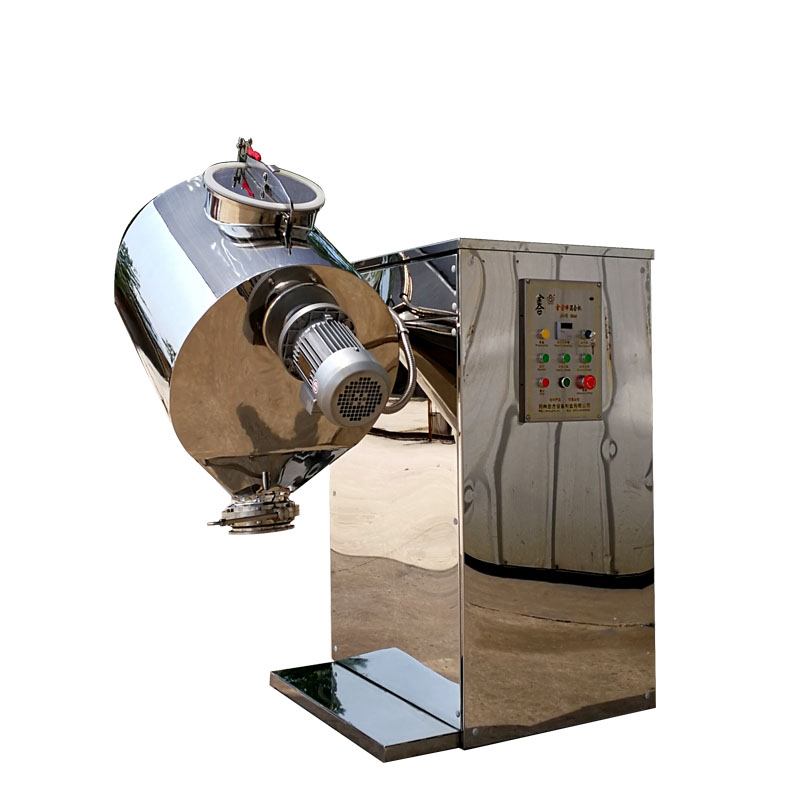

JHN Replaceable Barrels V type 3D Mixer

JINHE® JHN Series One machine Multiple Containers Double Movement Three Dimentional Vee shaped tumbler Powder Mixer machine.

Zhengzhou Jinhe Machinery Manufacture CO., LTD. had a good dream that one machine could install different volume containers as people pleases in one double movement Powder Three Dimentional Vee shaped tumbler Mixer machine and let the container and its inside blade revolving simultaneously. Thus in this way, one machine can be used as several machines which was just an extravagant hopes before the year 2012. However, the dream becomes true now!







Youtube Address:    www.youtube.com/user/asiamixer



Model

Barrel Capacity

(L)

Max Loading  Weight(kg)

Barrel Speed

(r/min)

Blades Speed

(r/min)

Motor Power

(kw)

Size
Length*Width*Height(mm)

JHN-15

11、15、18

35

23

60

0.37

1045*600*990

JHN-55

30~55L can be customized

60

22

55

1.1

1200*780*1250

JHN-110

60~110Lcan be customized

100

20

49

1.5

1300*820*1400

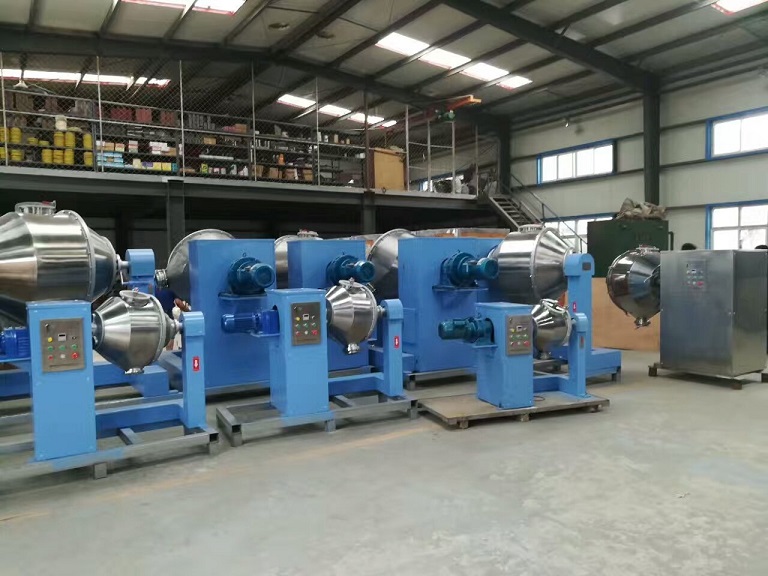

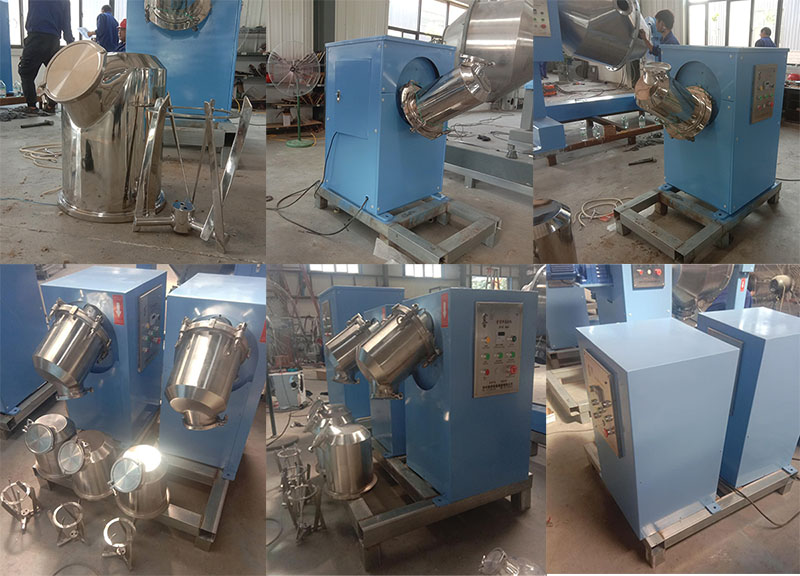

Customer Using Picture

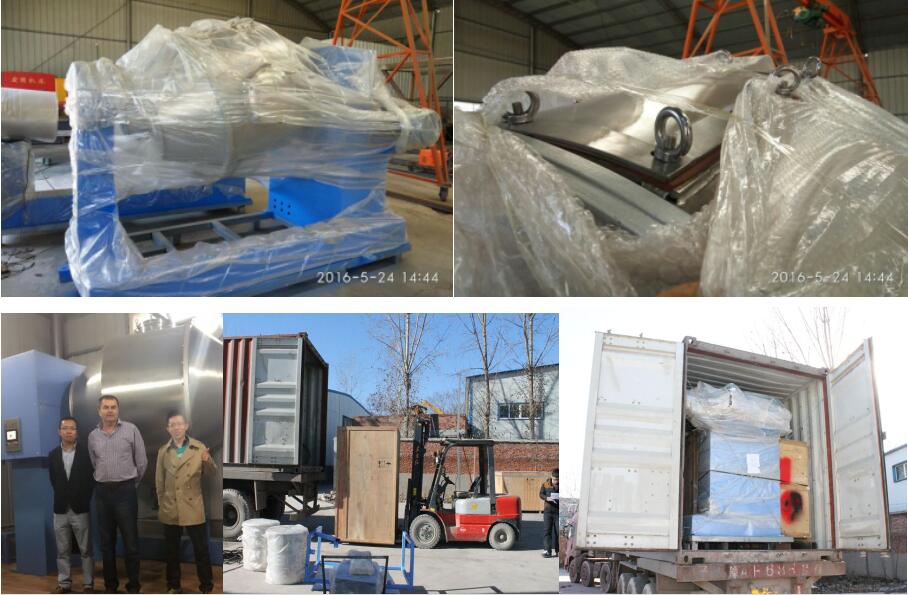

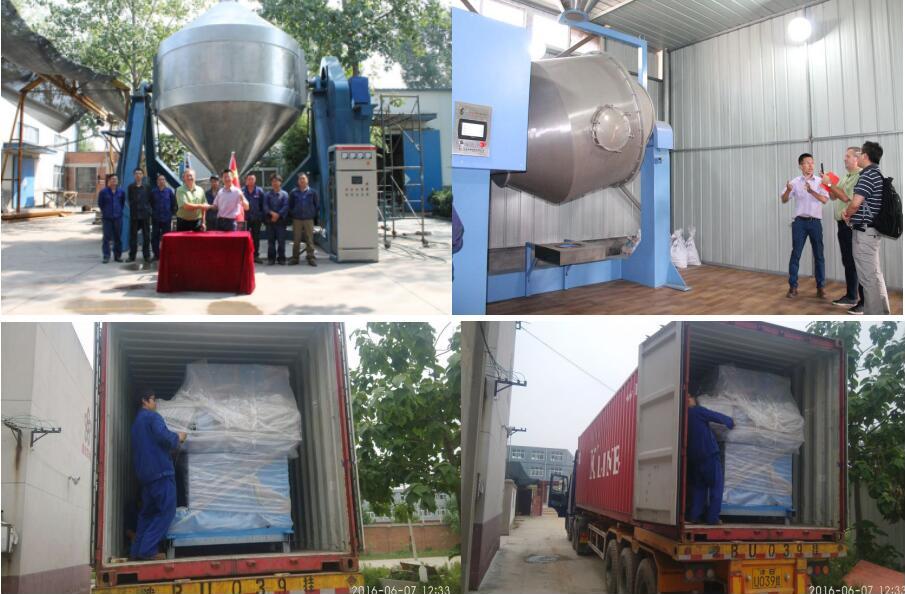

Double Motion Mixer Shipping Picture


JHN series 3D drum tumble Powder Mixer is an excellent equipment which bears extraordinary imagination of our designers. It combine double movement mixing principle and complicate mixing task perfectly.
1st Different volume containers can be installed whenever needed. When customer install one 3 L container, it can be used as test for mini mixing. If install one 15L  container, it can finish small batch mixing task, fully develop the vast potential of the machine. In addtion, JHN55 three dimentional 3D tumbler mixer could load 20liters to 55liters vessel.

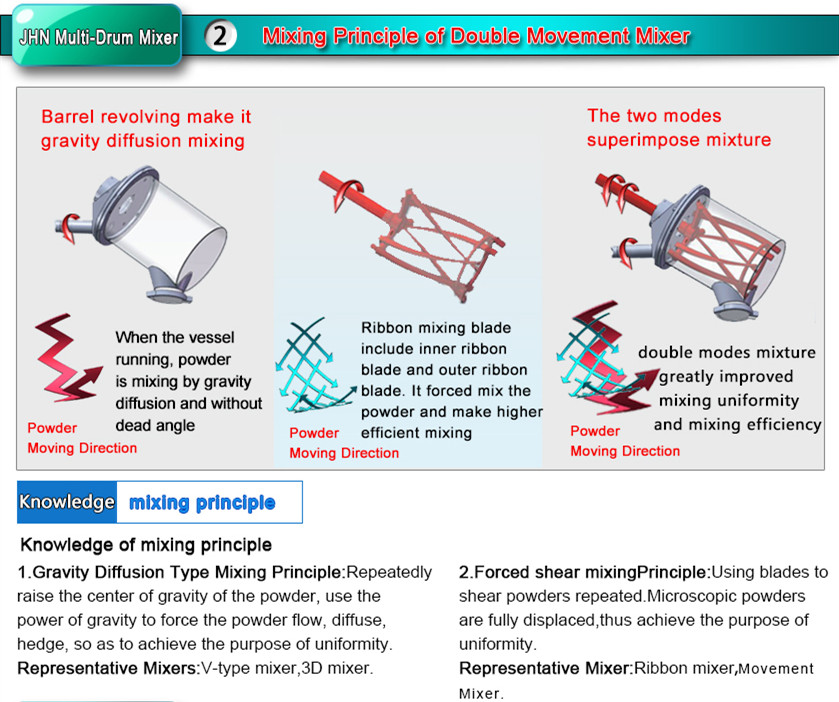

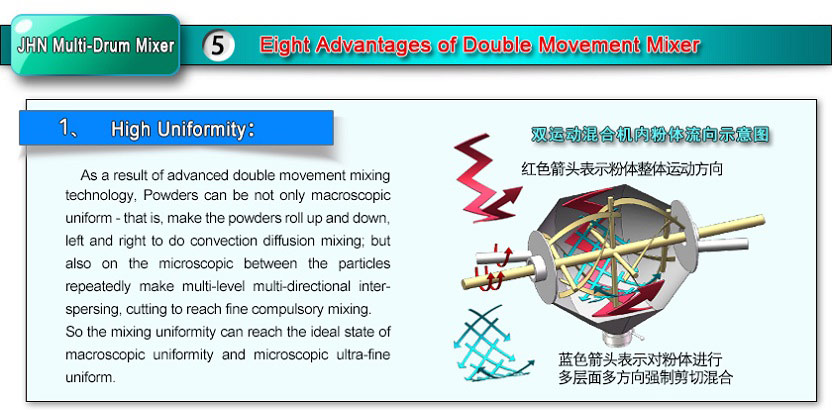

2nd Inherited the advantage of double movement mixing principle, this utility V type machine not only realize cross revolving shaft double movement, but also has its inherent advantages such as ideal mixing effect, large loading ratio, cost less time, saving electricity and money.

3rd Convenient installation: A skillful worker only needs 5 minutes to change and install containers.

4th Dismountable installation: containers can be used as special purpose, dismounted and cleaned whenever needed, so this machine can effectively prevent cross-contamination between batches.

JHN series three dimentional 3D shaped mixer machine Advantage Specialty:
1st One machine can be used as multiple machines. Different volume containers (3L-18L),(20L-55L),(50L-110L)can be installed whenever needed.

2nd Prevent cross-contaminations between batches. Easy loading and unloading. Convenient to clean the container.

3rd JHN V shaped 3D mixer machine Run more smoothly than others. Owing to the cantilever structure, the room of this equipment is shrink.

4th JHN 3D powder mixer machine also has advantage like "Ideal mixing effect" "High loading rate" "Time saving" and "Money saving" double movement advantage.
