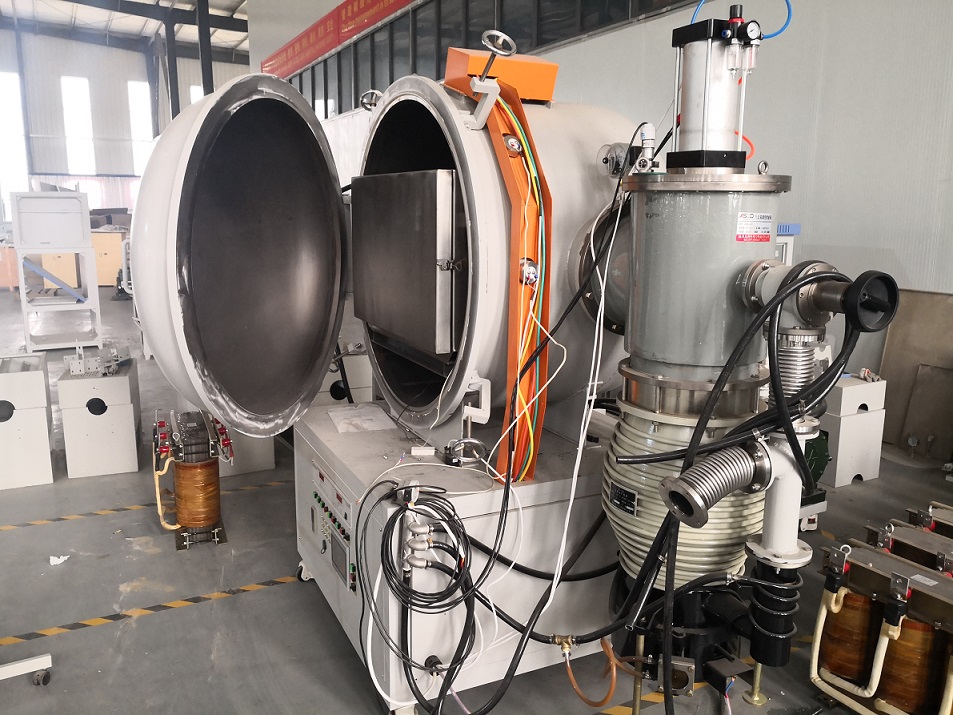

1200℃ high Working Temperature vaccum furnace ship to France



Inside Chamber Size
800(W)x800(H)x800(D)mm    512L
Furnace size 3800(W)*2300(H)*2000mm(D)
Machine GW 10t
Standard Working Temperature 1100℃
Maximum Working Temperature 1200℃
Furnace Structure ●Doule layers carbon steel casing with water cooling system to ensure the surface below 30℃
● Furnace door inside is polished stainless steel
Furnace Shell High intensity carbon steel with electrostatic spraying
Heating Element Fe-Mo-Cr spiral wire
Furnace Chamber Two layers of ceramic fiber insulation materials
● First layer: 1430°C ceramic fiber board
● Second layer: 1260°C ceramic fiber board
Working Voltage 220V  60HZ  3P
Max. Power 70 kW
