Inert Atmosphere Furnace

\

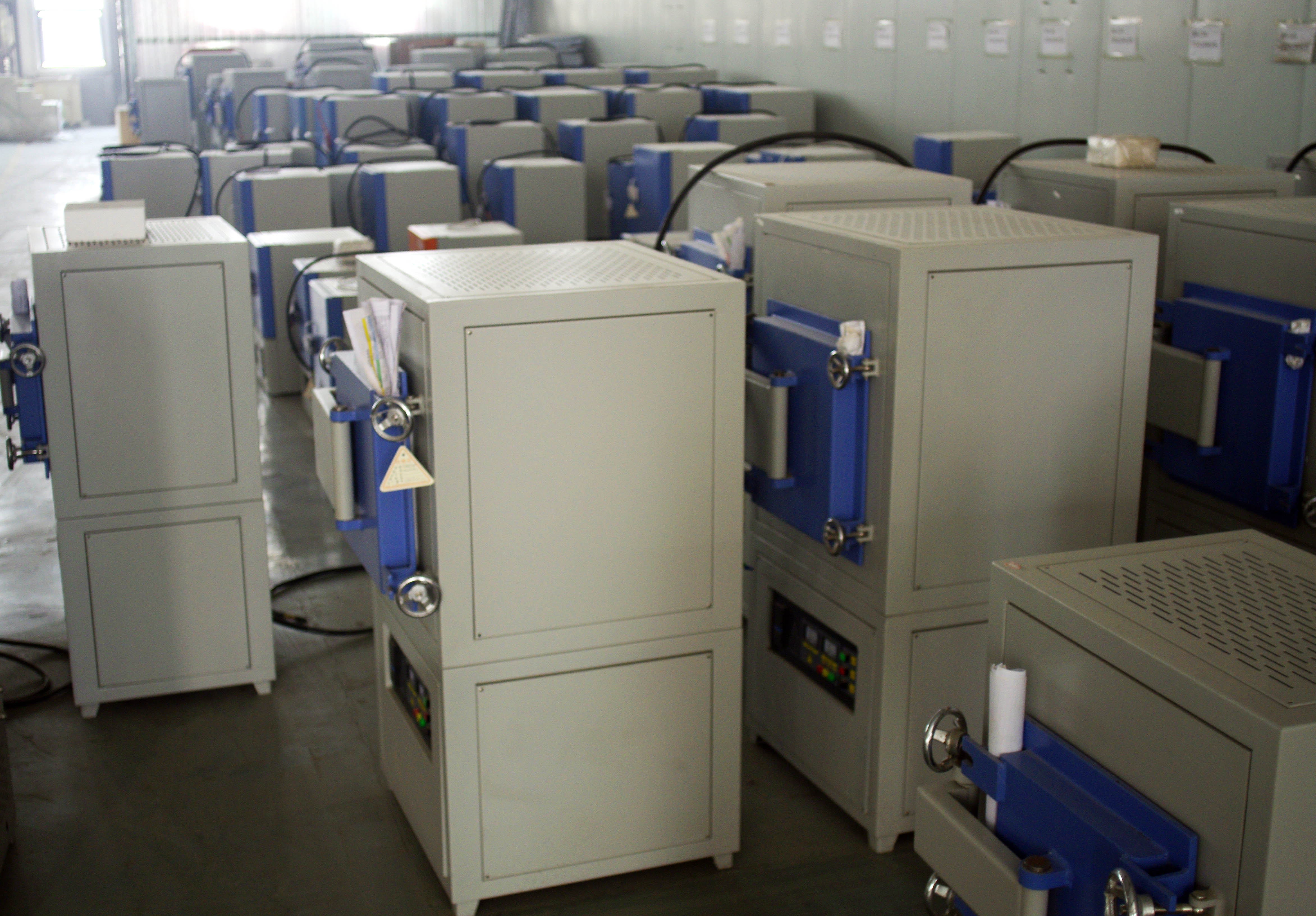

High Temperature Inert Atmosphere Furnace up to 1700°C

This controlled inert atmosphere heat treatment furnace is pre-vacuumed to ensure that the oxygen content in the furnace is minimized, and then nitrogen, argon is introduced to obtain the desired heating treatment under the protection of the atmosphere. Due to its excellent atmosphere and compactness, it has been widely used in material laboratories or small batch production of semiconductors, silicon nitride, and other products.

Features:

  • Max temperature:
    1200℃ (HRE Fe-Cr-Al-Mo wire)
    1400℃ (SiC Heater)
    1700℃ (MoSi2 Heater)
  • This Inert Atmosphere Furnace is made of alumina polycrystalline fiber, and the temperature field is balanced and pollution-free.
  • Fully enclosed structural furnace, double-layer thickened steel plate, can bear 0.1 Mpa pressure
  • The top, left, right, and back are made of 12mm solid square steel for reinforcement, and the vacuum is not deformed. The maximum vacuum can be up to -0.08MPa.
  • Temperature controlling system of this argon atmosphere furnace adopts industrial precision 0.2-level intelligent instrument, PID adjustment, 50-segment programming.

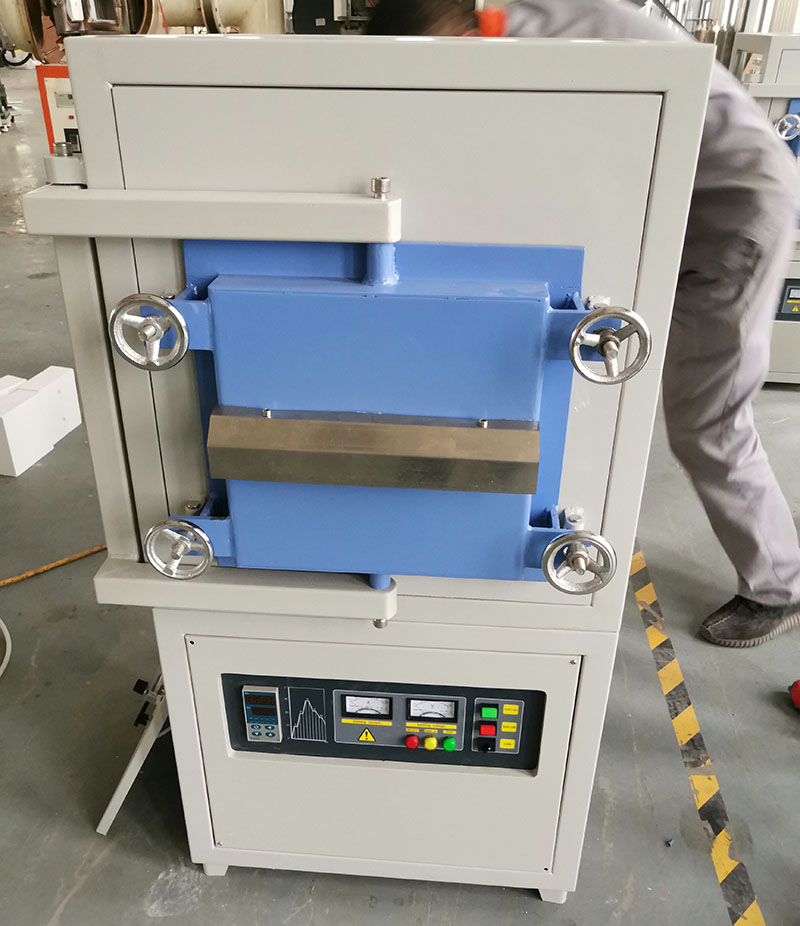

  • The furnace door has the good sealing performance. Four hand wheels lock the furnace door and use the silicone ring to seal.

Standard spares:

  • Furnace door fire brick (except 1200 type)
  • High temperature gloves; tongs; manual
  • Two pcs heating elements (except 1200 type)
  • Rotary vane vacuum pump

Additional spares:

  • Direct-connected vacuum pump
  • Touch screen/computer connection software
  • Crucible (multi-layer kiln furniture)
  • Heating element (Sic and MoSi2)
  • Air system (float/proton flow meter, 2 / 3 channels of gas)
  • \

    Ⅰ. Technical Specifications

    Max. temperature 1700℃ (<2hour)
    Working temperature 1600℃
    Standard Temperature controlling ●  PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.
    ●  51 programmable segments for precise control of heating rate, cooling rate and dwell time.
    ●  Built in PID Auto-Tune function with overheating & broken Thermocouple broken protection.
    ●  Over temperature protection and alarm allows for operation without attendant
    Optional of Temperature controlling ●  Software (Furnace can be operated by PC by installing a control software)
    ●  Touch screen temperature controller
    Temperature accuracy ±1℃
    Temperature Uniformity ±5℃ over 120mm @ 1600℃
    ±3℃ over 80mm @ 1600℃
    Heating rate 0-15℃ /min
    Thermocouple B type (Pt-Rh) with 99.7% purity Alumina tube
    Heating element U type MoSi2 heating element
    Furnace Chamber Three layers of ceramic fiber insulation materials
    ●  First layer: 1800℃ ceramic fiber board.
    ●  Second layer: 1600℃ ceramic fiber board.
    ●  Third layer: 1430℃ ceramic fiber board.
    Furnace structure Double layer steel casing with dual cooling fan, surface temperature below 60℃
    Furnace door ●  Power cutting off when furnace door open
    Warranty ●  One year limited warranty with life time support. (Consumable parts such as heating elements and crucibles are not covered by the warranty, please order the replacement at related products)
    ●  ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty.
    Certifications CE

    Ⅱ. Application Notes

    Using Attentions ●  Cooling rate shall also not exceed 10℃/min.
    ●  Toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision.
    ●  Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
    ●  Refractory door block must be inserted before closing door.

Inert Atmosphere Furnace up to 1200°C

Model Max. Temp. Chamber size Voltage Power
JH-AS-1 1200℃ 100*100*100mm 220V 0.8kW
JH-AS-2 1200℃ 120*120*130mm 220V 1.2kW
JH-AS-3 1200℃ 150*150*150mm 220V 2.5kW
JH-AS-5 1200℃ 150*150*200mm 220V 3kW
JH-AS-8 1200℃ 200*200*200mm 220V 5kW
JH-AS-12 1200℃ 200*200*300mm 220V 6kW
JH-AS-27 1200℃ 300*300*300mm 380V 8kW
JH-AS-36 1200℃ 300*300*400mm 380V 10kW
JH-AS-64 1200℃ 400*400*400mm 380V 16kW

Inert Atmosphere Furnace up to 1400°C

Model Max. Temp. Chamber size Voltage Power
JH-14AS-1 1400℃ 100*100*100mm 220V 1kW
JH-14AS-2 1400℃ 120*120*130mm 220V 2kW
JH-14AS-3 1400℃ 150*150*150mm 220V 3kW
JH-14AS-5 1400℃ 150*150*200mm 220V 4kW
JH-14AS-8 1400℃ 200*200*200mm 220V 5kW
JH-14AS-12 1400℃ 200*200*300mm 220V 7kW
JH-14AS-27 1400℃ 300*300*300mm 380V 9kW
JH-14AS-36 1400℃ 300*300*400mm 380V 11kW
JH-14AS-64 1400℃ 400*400*400mm 380V 18kW

Inert Atmosphere Furnace up to 1700°C

Model Max. Temp. Chamber size Voltage Power
JH-17AS-1 1700℃ 100*100*100mm 220V 1kW
JH-17AS-2 1700℃ 120*120*130mm 220V 3kW
JH-17AS-3 1700℃ 150*150*150mm 220V 4kW
JH-17AS-5 1700℃ 150*150*200mm 220V 5kW
JH-17AS-8 1700℃ 200*200*200mm 220V 7kW
JH-17AS-12 1700℃ 200*200*300mm 220V 8kW
JH-17AS-27 1700℃ 300*300*300mm 380V 10kW
JH-17AS-36 1700℃ 300*300*400mm 380V 12kW
JH-17AS-64 1700℃ 400*400*400mm 380V 20kW
Note: This inert atmosphere heat treatment furnace can not be used in hydrogen.
\
