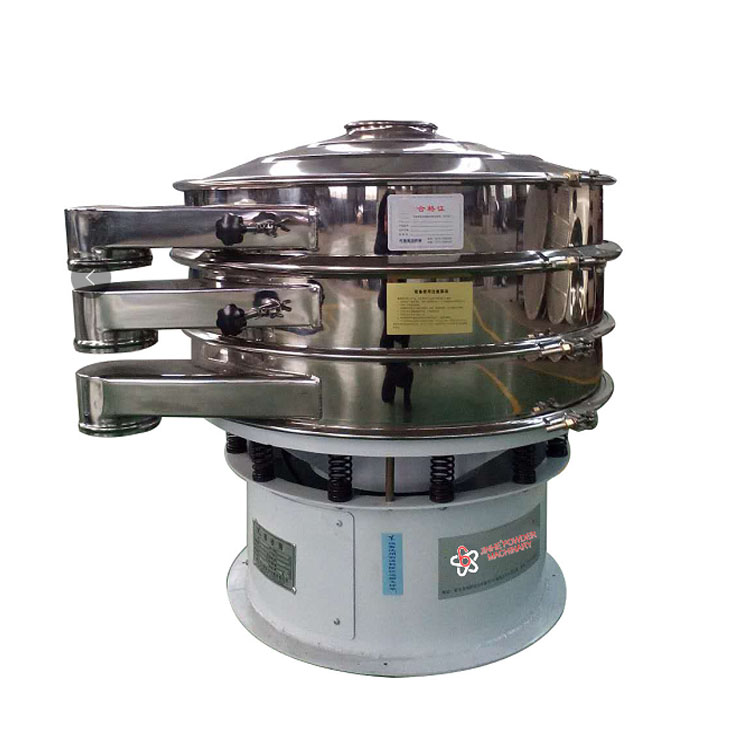

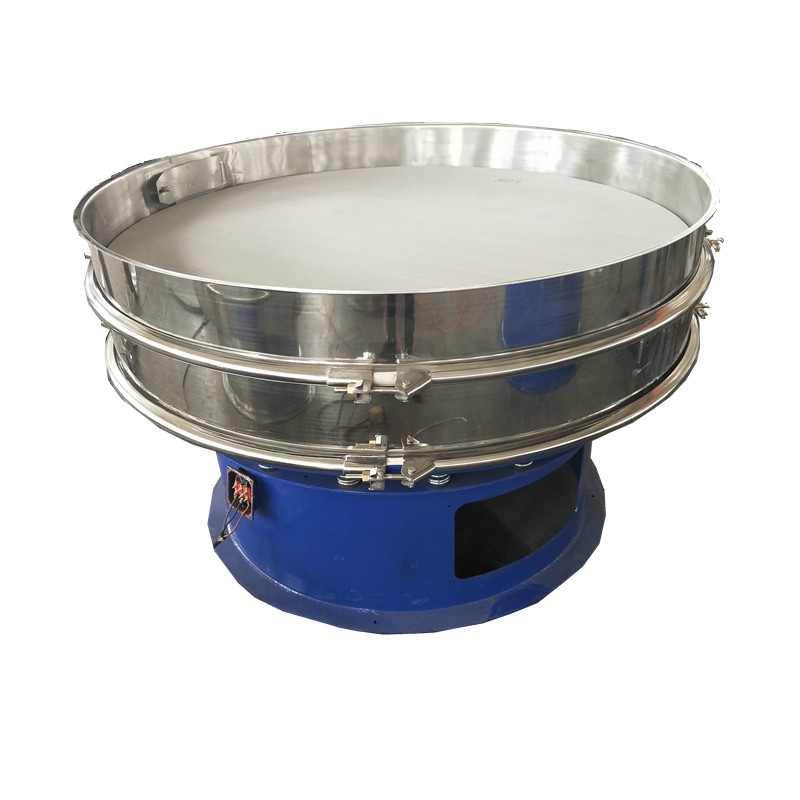

\Ultrasonic vibrating sieve machine for materials grading or impurities remove

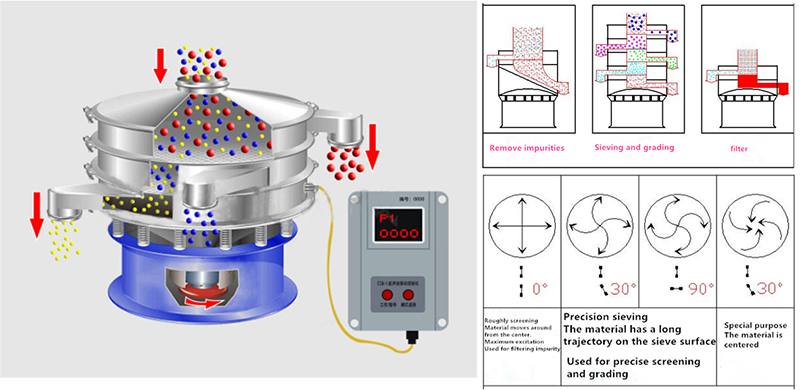

The utrasonic vibrating wave(machanic  wave) added on the sieve mesh makes superfine powder accept the giant ultrasonic acceleration which restrains blockage factors which includes adhesion,friction,wedging ect and improve sieving and cleaning efficiency.




Technical Parameters:

Model Effective diameter
 (mm)
Effective sieving area
            (m2)
Screen mesh Layer Powder(KW)
Vibration
motor
Common
motor
JHVF-400 Φ340 0.0907 2-500 1-5 0.18 --
JHVF-600 Φ540 0.2289 0.25 0.75
JHVF-800 Φ730 0.4183 0.55 1.1
JHVF-1000 Φ900 0.6359 1.1 1.5
JHVF-1200 Φ1100 0.949 1.1 1.5
JHVF-1500 Φ1400 1.5386 1.5 2.2
JHVF-1800 Φ1700 2.2687 4 3
JHVF-2000 Φ1886 2.7922 4 3.0


1.Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder,
    sauce, syrup.

3. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder,
    welding rod powder.
4. Medicinal industry: all kinds of medicine.
5. Waste treatment: disposed oil, disposed water, disposed dye waste water, active
    carbon.

Quotation of factors

 Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.

Packing and Delivery
7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.


Quality of products

Generally, our equipments are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
After-sale service
In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include .

Features
1) High efficiency, refined design, duration,any powders and mucilage are suitable for          using.
2) Easily to replace the screen, simple operation and convenience washing.
3) Never jam the hole meshwork, no powder flying, filter size of the powder between 500      mesh and 0.028 mm.
4) Discharge the impurity and coarse materials automobile and operates continuously.
5) Unique screen flame design, long duration of screen, only 3-5 to replace the screen.
6) Small volume, move easily.
7) The highest layers of the screen are about 5 layers. But 3 layers are suggested.

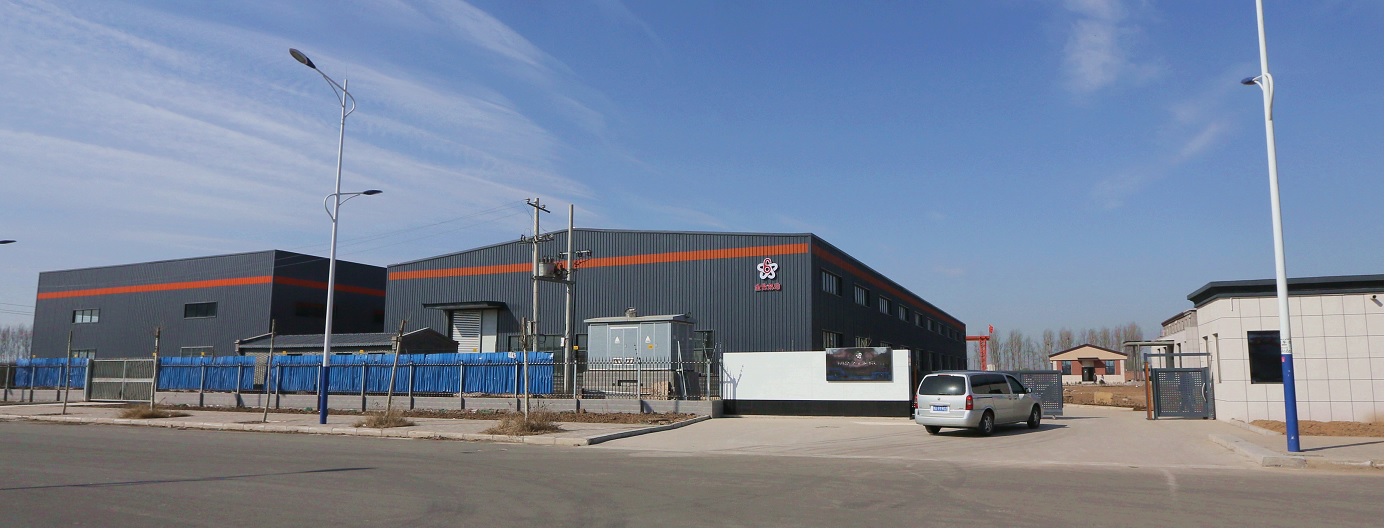

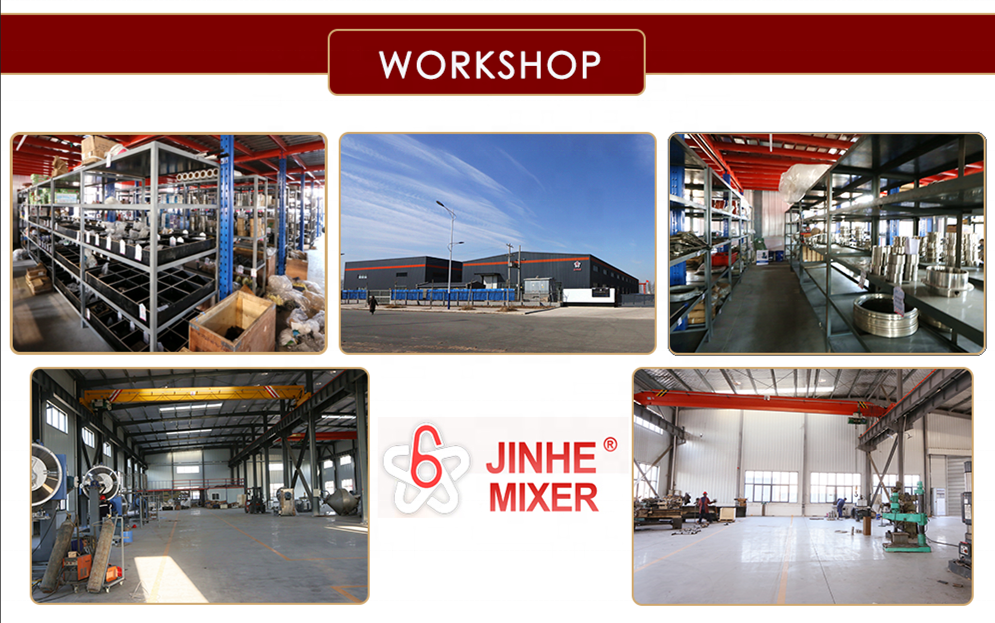

About Our Company
