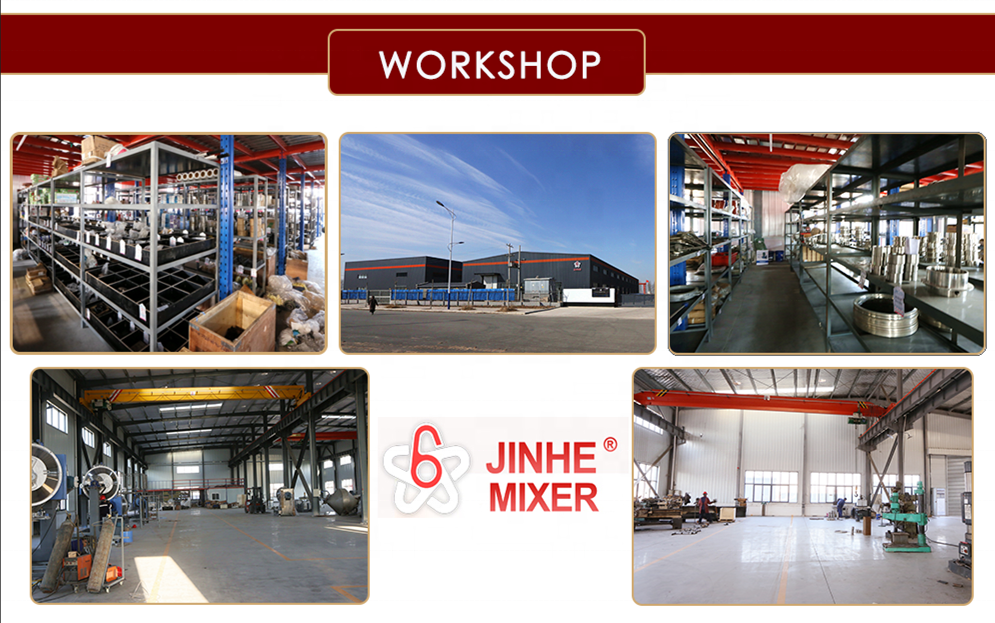

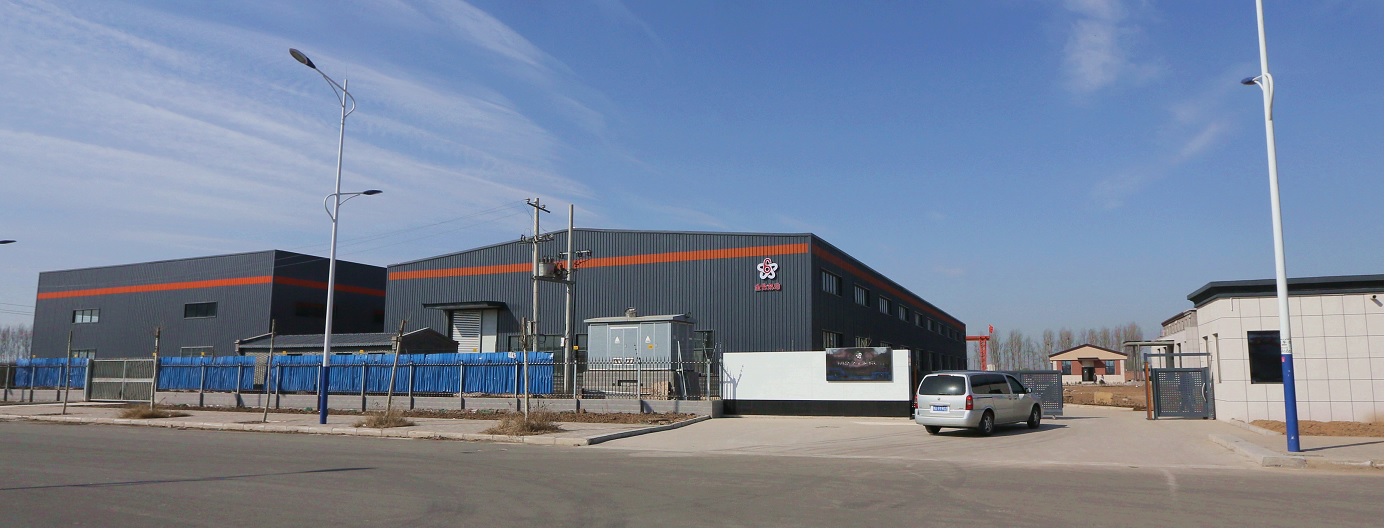

JINHE NEW factory Show \
JINHE New Factory Video: https://www.youtube.com/watch?v=rGOYaFf6Ot8

?Youtube Address:    www.youtube.com/user/asiamixer

Introduction:

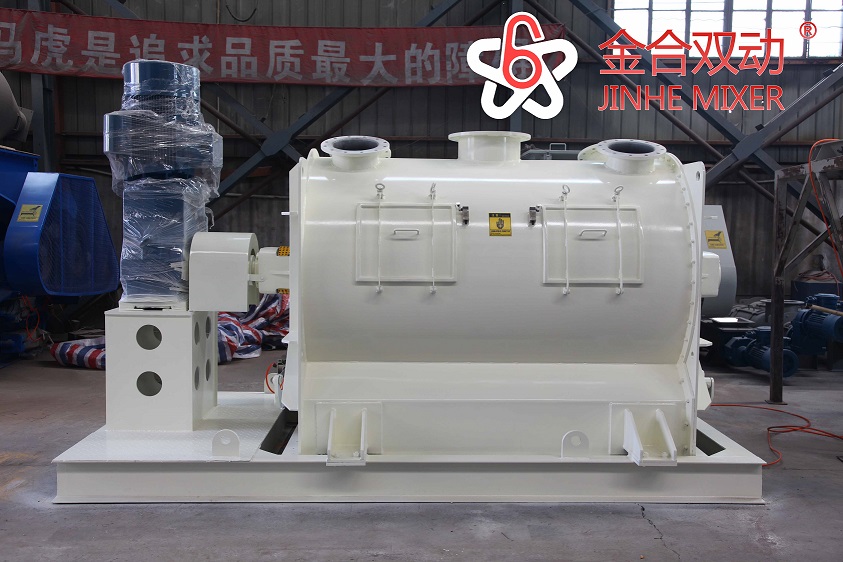

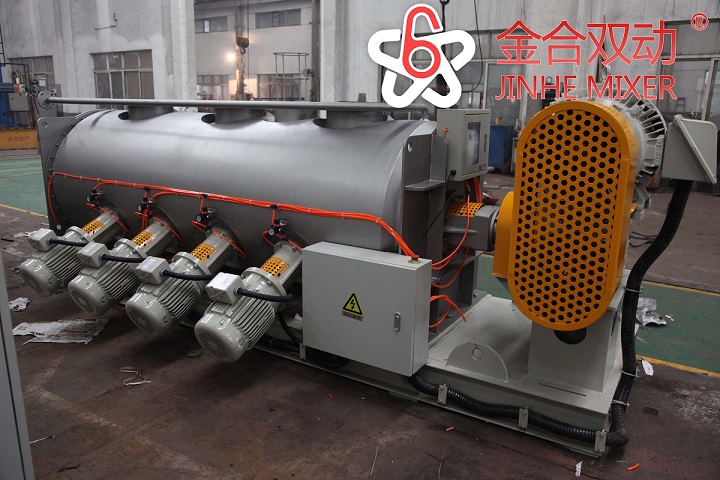

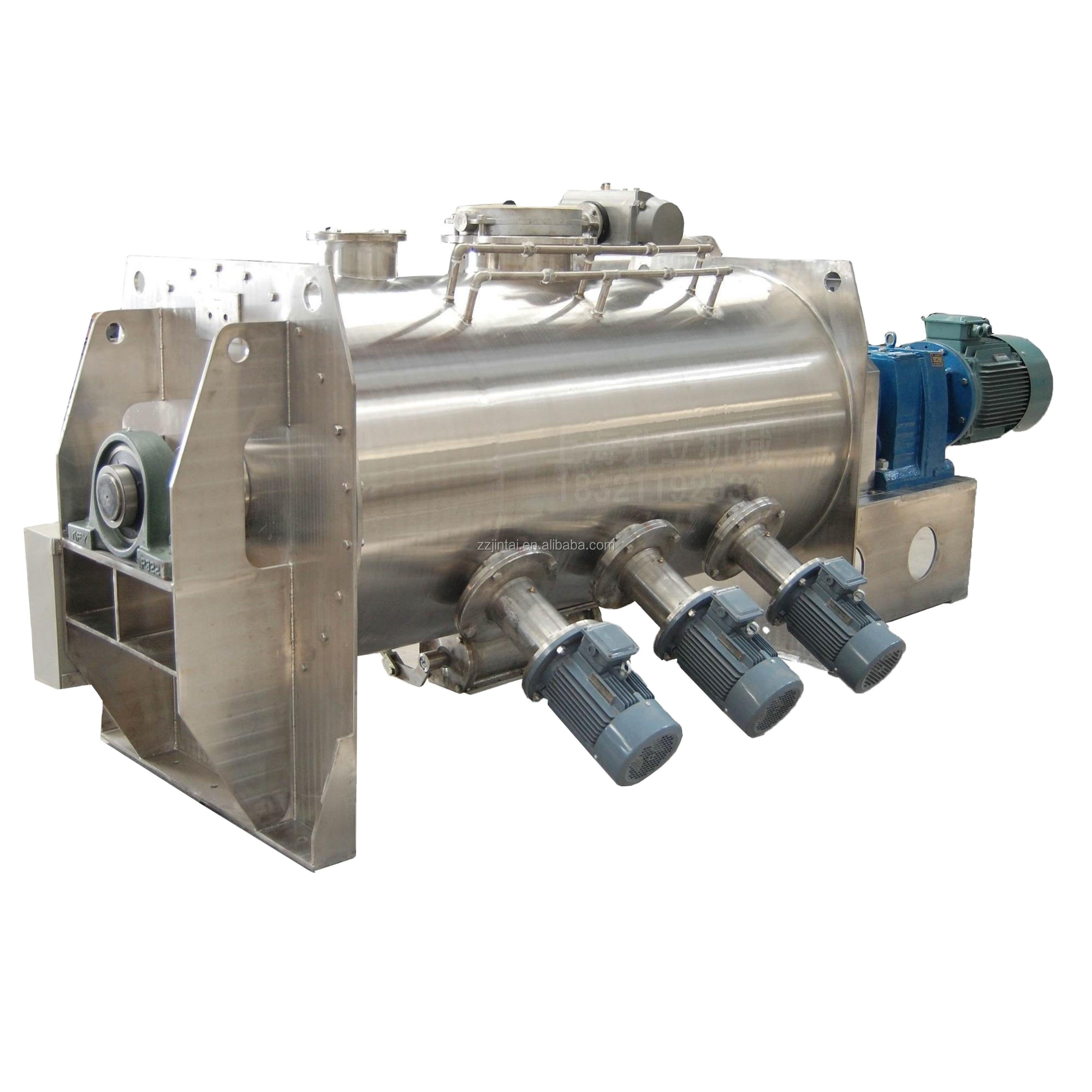

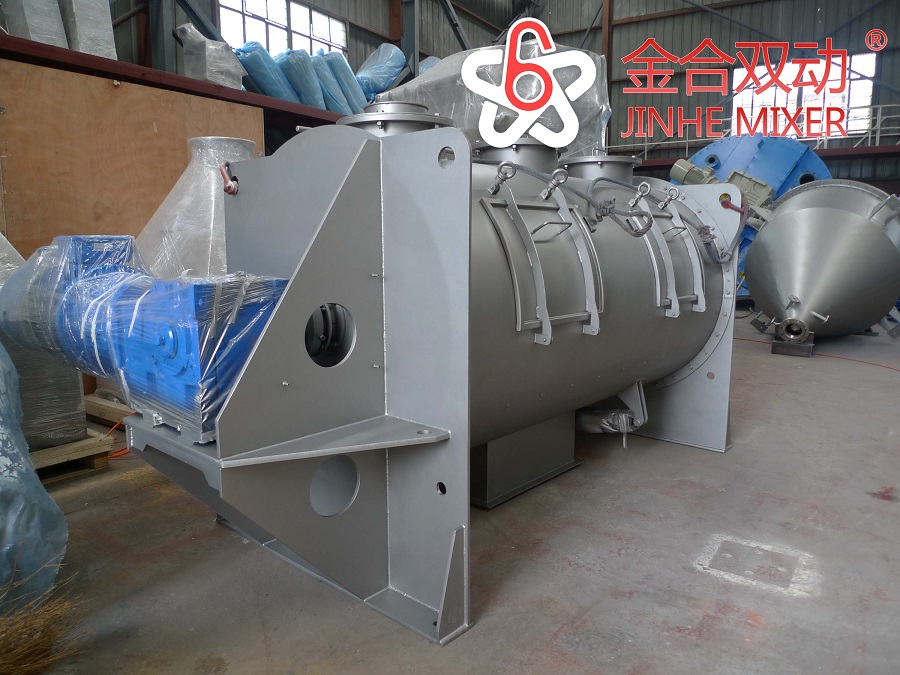

JHG plough blades continuous mixer machine

     The plough powder mixer comprises transmission mechanism, horizontal cylinder, coulter and flying cutter. Under the coulter’s role, the material makes convection movement along with the cylinder and cast by flying cutter with high speed rotation when passing by it, achieving uniform mixing in the shorter time. It can apply to much mix of solid and liquid and some compound process such as creating wet powder and drying, especially to the mix of viscosity or colloid additive. As a ruesult, this JHG plough mixer is your best choice because it could make the Viscous powder mixer very well !
\


\
\

\
\
\
\\

Technical Parameters:
MODEL
Capacity(M³)
Loading Rate
Motor Power(KW)
Size(mm)
weight(kg)
JHG-100
0.1
0.4-0.6
3
1270×865×850
430
JHG-300
0.3
0.4-0.6
4
2070×1050×1150
950
JHG-500
0.5
0.4-0.6
5.5
2180×1200×1300
1100
JHG1000
1
0.4-0.6
11
2830×1620×1550
1800

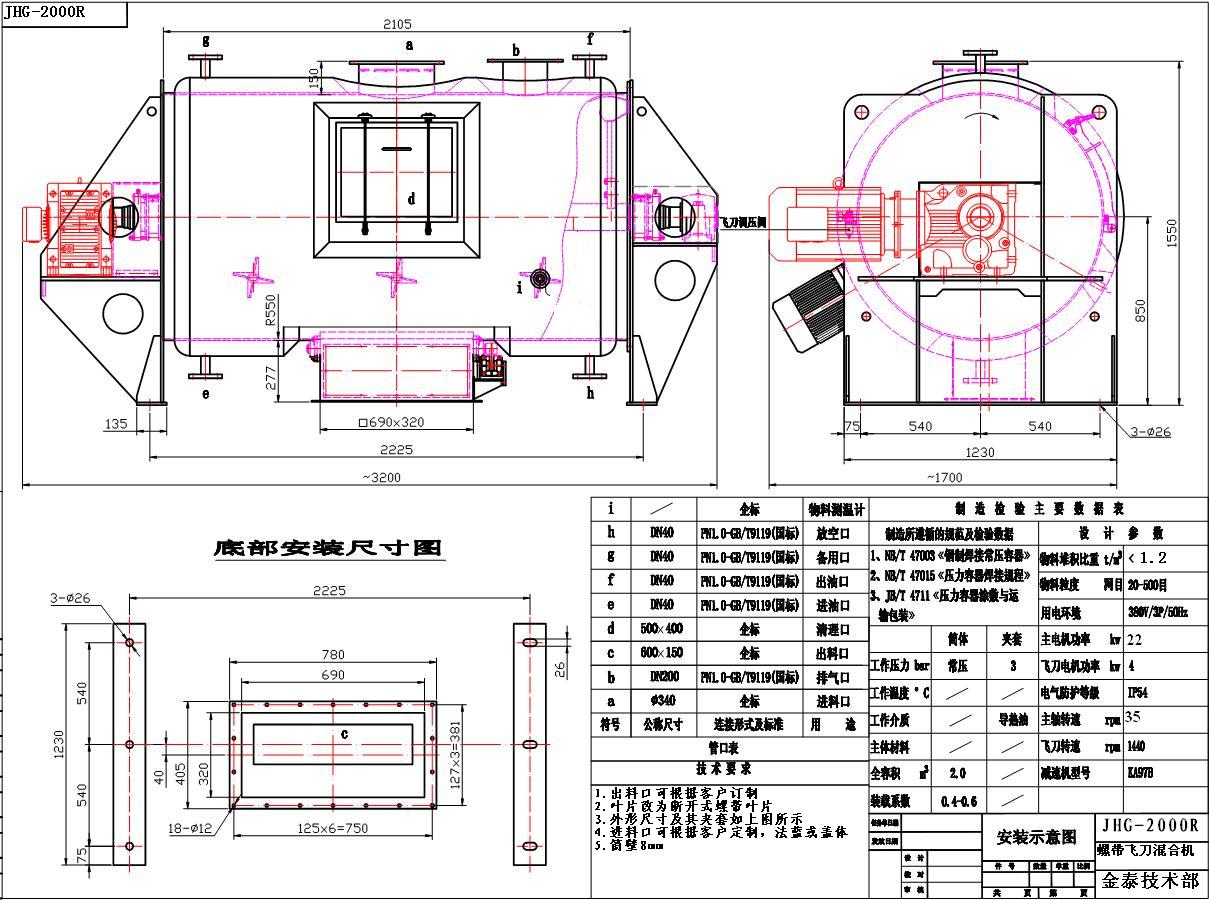

JHG2000
2
0.4-0.6
18.5
3420×1810×1758
2520
JHG3000
3
0.4-0.6
18.5
3420×2045×1983
3200
JHG4000
4
0.4-0.6
22
4200×2140×2123
4836

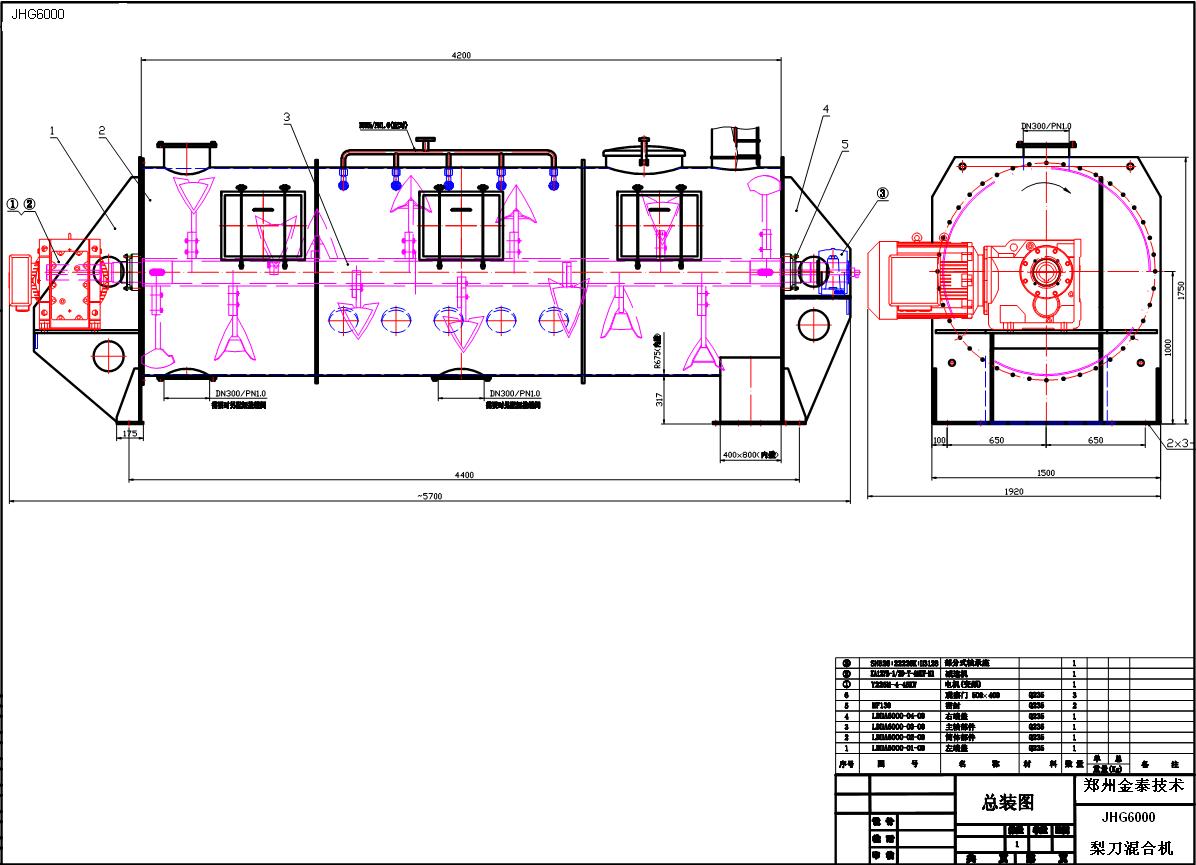

JHG6000
6
0.4-0.6
30
4680×2290×2448
8775
JHG8000
8
0.4-0.6
45
5560×2390×2608
9360
JHG10000
10
0.4-0.6
55
5140×2390×2850
9750
JHG12000
12
0.4-0.6
55
5720×3110×2960
10660
JHG15000
15
0.4-0.6
75
5920×3280×3140
11050
\\\\
\\
