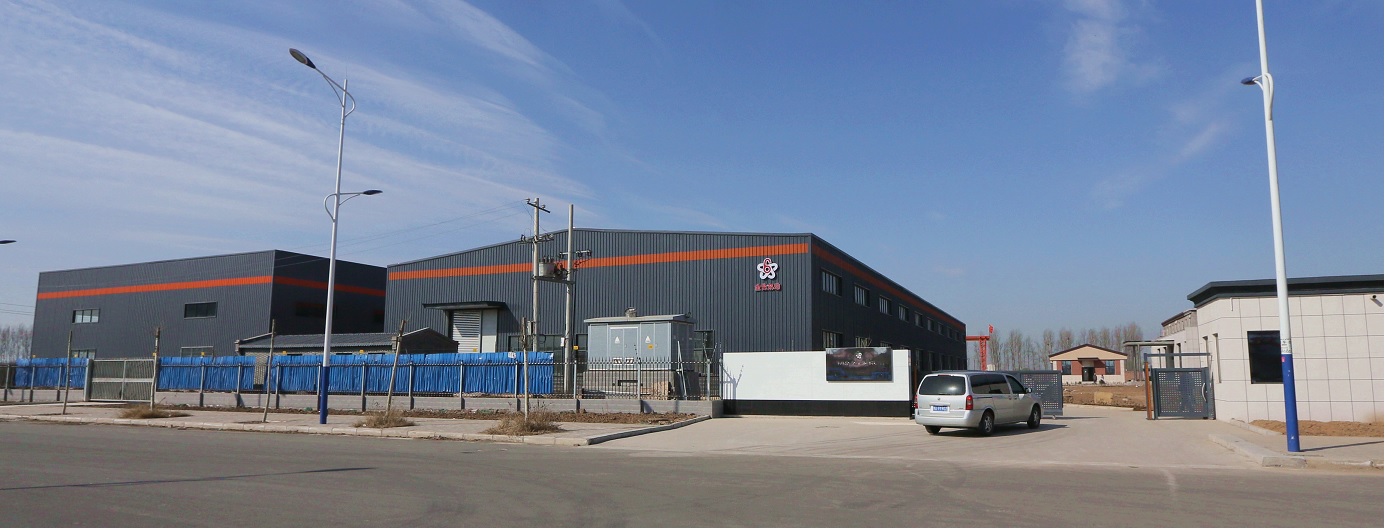

JINHE New Factory Video: https://www.youtube.com/watch?v=rGOYaFf6Ot8

\




\

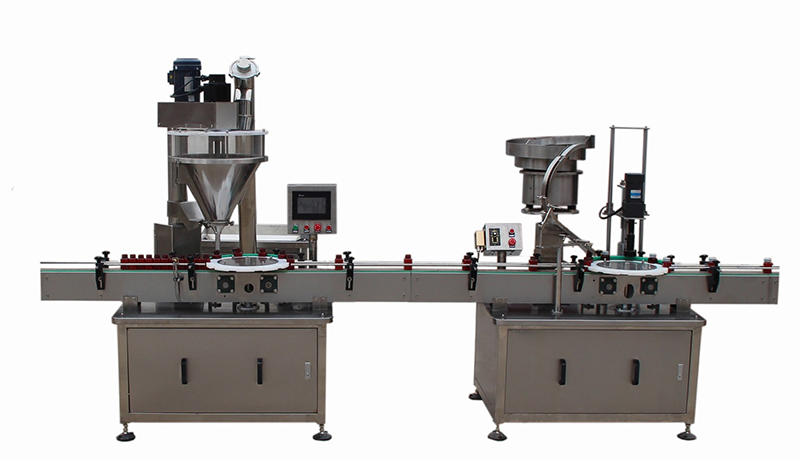

Description:
This type can do measuring and filling work. Due to the special design, so it fits more to the fluidic or low-fluidity materials, like milk powder, gourmet powder ,solid drink, white sugar, dextrose, coffee, fodder , solid medicine, agriculture pesticide, granularity additive, dyestuff, and so on. LCD or touch screen control( in Chinese or English), Servo-motor driving screw. The surface of whole machine is made by stainless steel material except of motor. Knockdown Transparent hopper, which could be washed without tooling.
Features:

*Dexterous and flexible, easy removal. There is no limit of packaged container. It is widely used invariable materials and package-weight specifications.

*High speed response(exclusive in china)on-off or servo motor drive screw.High precision,high speed, big torsional moment, long life to use.

*LCD or LED,simply visual supervisory.Stepless adjust the net weight.Change the working parameter at any time,easy to control.Change the working parameter at any time, easy to control.

*Save the parameter of each product to later use.10 sets of magistral fomula save at the most.

*Fit for lots of material range from fine-powder to coarse-granule,if change the screw attachment.Dust- collector set on dust material situation to absorb dust spout out.

Technical Parameters:

Metering       Model

Auger rotation filling traced by weighing feedback

Packaging Weight

10 - 5000g(The screw attachment is to be changed)

Packaging Accuracy

±3‰

Motor

AC Servo motor

Control

Touch screen & PLC control

Free scale precision

1g

Filling Rate

40 - 120 times/min

Power Supply

3P /220-415V 50/60Hz

Total Power

1.4KW(enlarged type is 1.9KW)

Total Weight

280kg

Overall Dimensions

1140*710*2200mm

Hopper Volume

50L(Enlarged size 70L)
\
