JHYB Square Bin Mixer IBC System
\
JINHE New Factory Video: https://www.youtube.com/watch?v=rGOYaFf6Ot8

\

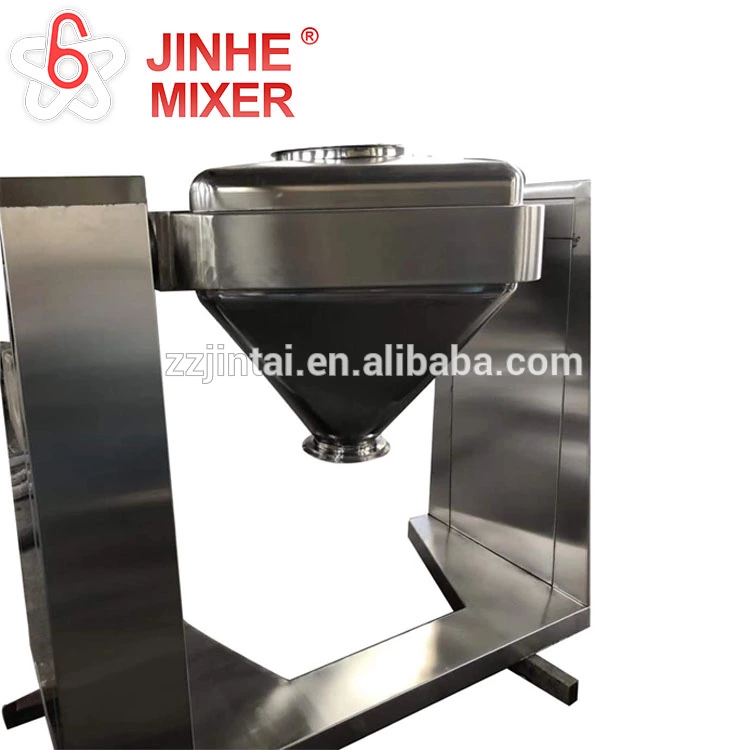

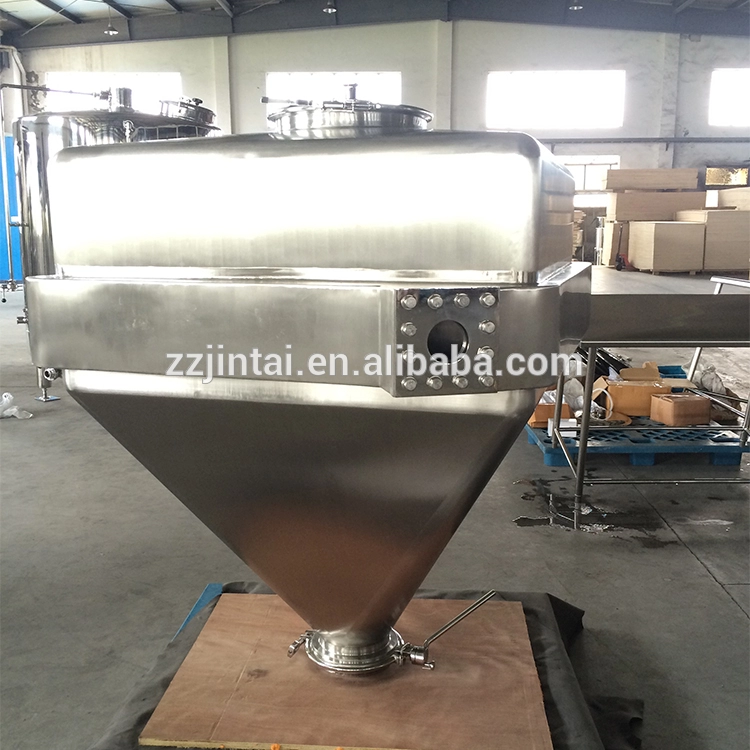

The machine has such features as reasonable structure, stable performance, convenient operation, no dead corners, and no exposed bolts. The gyrator (mixing hopper) forms an included angle of 30° with the rotation axis. The materials in the mixing hopper rotate along with the gyrator and make tangential movement along the hopper walls, producing strong turning and high-speed tangential movement and achieving the best mixing effect. PLC automatic control is adopted. It is provided with the infrared safety device and the discharging butterfly valve with the misoperation preventer to ensure safe production. The materials can go through different working procedures in the same vessel without the need of frequent material transferring, material charging, etc. The machine effectively controls dust pollution and cross contamination, reduces loss of materials, controls material layering, optimizes production processes, and fully meets the requirements for medicine production in GMP.

The machine can automatically complete all actions including lifting, clamping, mixing, lowering, etc. An automatic lifting hopper mixer and several mixing hoppers of different specifications can meet the mixing requirements of large batches and diversified varieties of products. It is an ideal machine for mixing in pharmaceutical plants. It is also widely used in such industries as medicine, chemical industry, food, etc.

The machine is composed of machine base, gyrator, driving system, lifting and lowering system, braking system and control system. When it works, push the mixing hopper into the gyrator. Enter the automatic operation program, and input the set parameter group program code. Press the "confirm" button on the touch screen to automatically lift the mixing hopper to the designated position and automatically clamp it. After the PLC control system receives the clamping signal, the driving system works and carries out mixing according to the set time and rotation speed. After the set parameters are reached, the gyrator will automatically stop vertically. At the same time, the braking system works and the mixing is finished. Then enter the manual operation program, press the "lower" button, the mixing hopper in the gyrator will fall to the designated position and stop automatically, and process data will be printed. Then the mixing hopper is pushed out and transferred to the next procedure.


\\\

                                                                           Technical parameters
Model                                         Main structural dimensions Net load Speed Power Weight
L A B W H HA HB HC L KG RPM KW T
JHYB400 2650 1200 275 2270 1670 2450 2810 720 320 240 3~20 5.5 1.8
JHYB600 2800 1300 300 2400 1570 2520 2770 720 480 360 3~20 5.5 2
JHYB-800 3000 1400 340 2600 1730 2640 2810 720 640 480 3~15 7 2.4
JHYB-1000 3300 1400 400 2760 1760 2760 3140 720 800 600 3~15 7 2.8
JHYB-1200 3400 1400 420 2860 1820 2800 3250 720 960 720 3~15 7 3
JHYB-1500 3400 1400 430 3040 1930 3110 3450 720 1200 900 3~15 7 3.5
JHYB-1800 3560 1600 450 3200 1960 3180 3560 720 1440 1080 3~15 9.7 3.6
JHYB-2000 3560 1600 450 3300 2080 3380 3880 720 1600 1200 3~15 9.7 4
