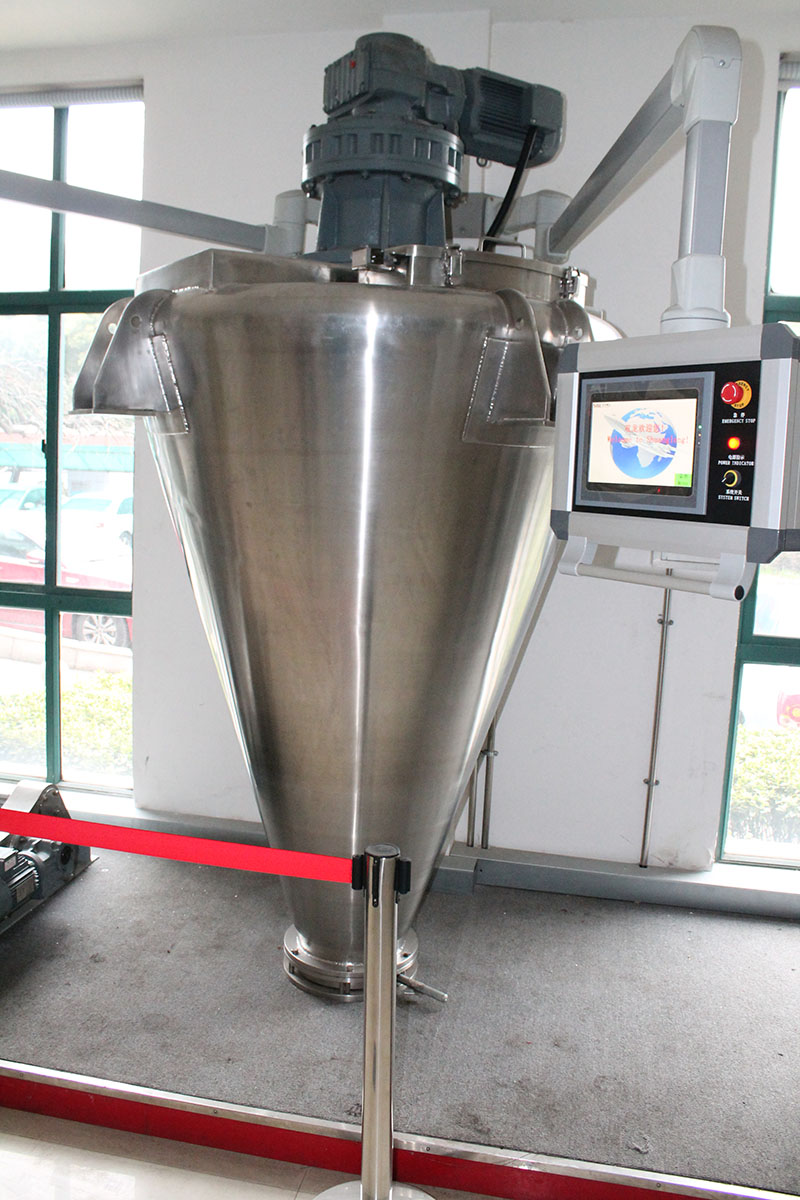

JHCS vertical screw nauta mixer machine

​Youtube Address:    www.youtube.com/user/asiamixer

JHCS series Nauta vertical mixer means Conical twin-screw mixer is a new and efficient, high-precision vertical particle mixing equipment, it is widely used in chemical, pesticides, dyes, medicines, food, feed, petroleum, metallurgy, mining and other industries a variety of powder particles mixed.
First, the main features of

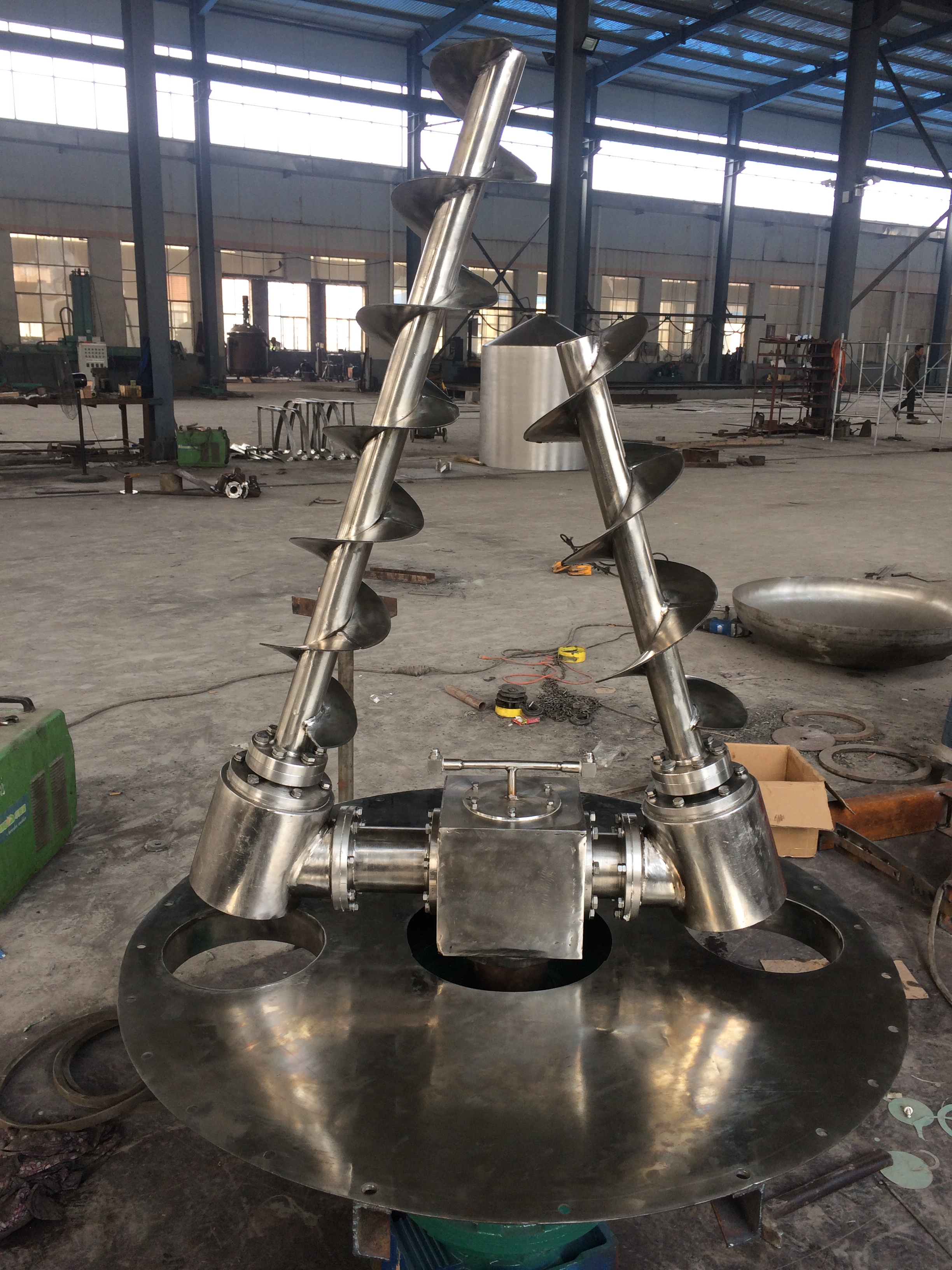

(1) Advanced structure, convenient operation, safe and reliable operation, cantilevered double helix axis has no bottom bearing, because it eliminates the infiltration of powder and bottom bearing failure caused.
(2) mixing speed and uniform quality. This machine is asymmetric double helix arranged one large and one small mixing expanded scope, and thus the proportion of the poor mixed than the gap is more appropriate mix of materials.
(3) energy-saving effect is remarkable, the unit energy consumption compared with the drum mixer is only one-tenth.
(4) on the particulate material wear and pressure fed tiny, heat-sensitive materials without overheating mixed reactions.
(5) mixed formulations stable stratification and segregation does not occur.
(6) The machine seals clean, simple operation, easy maintenance, suitable for long life. In addition, also according to user requirements, will cone into the pressure vessel is pressurized or vacuum operation.

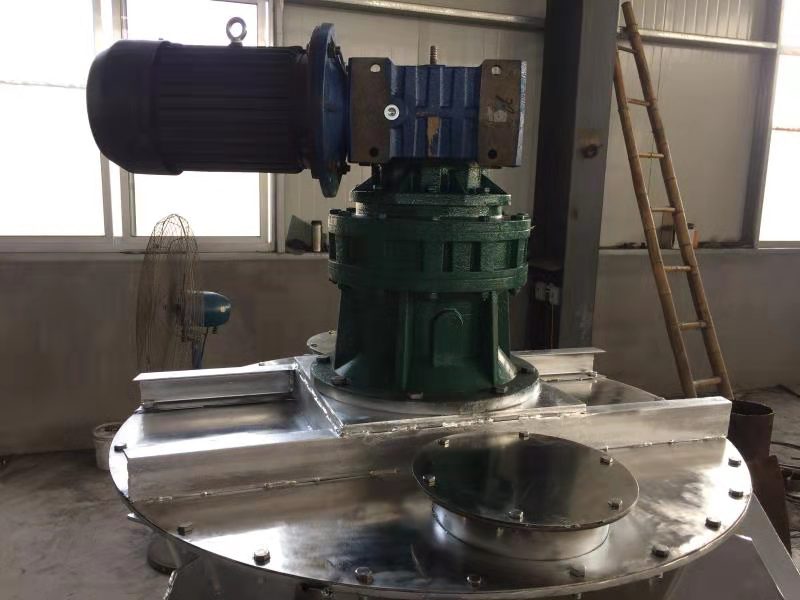

(7) The machine's autobiography, the revolution has lost a motor and cycloidal reducer complete.
Second, the principle
(1) Since the turn of the double helix to the public for the particles along the wall surrounding the cone operation.
(2) As the spiral blade autobiography, so that the powder to the central discharge cone for radial movement.
(3) powder from the conical bottom to spiral upward flow to the outer peripheral surface of the discharge, for material mixing.
(4) spiral rotation due to the decrease silt flow, because of the spiral in the public switched turn mixer combination, forming a powder form of the four flow: the convection, shear, diffusion, permeation bonded composite motion . Thus, the powder in the mixer can rapidly achieve uniform mixing.

\
\
\



\

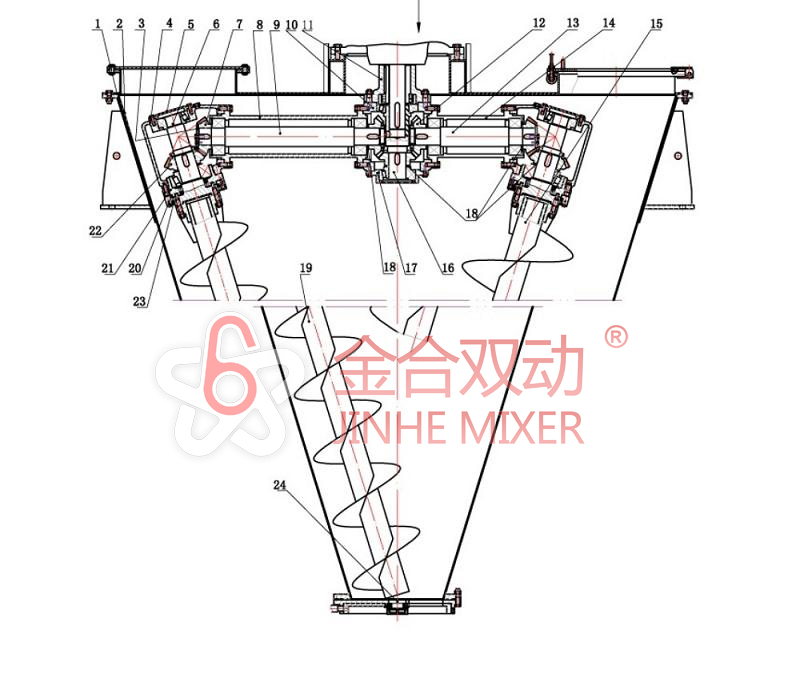

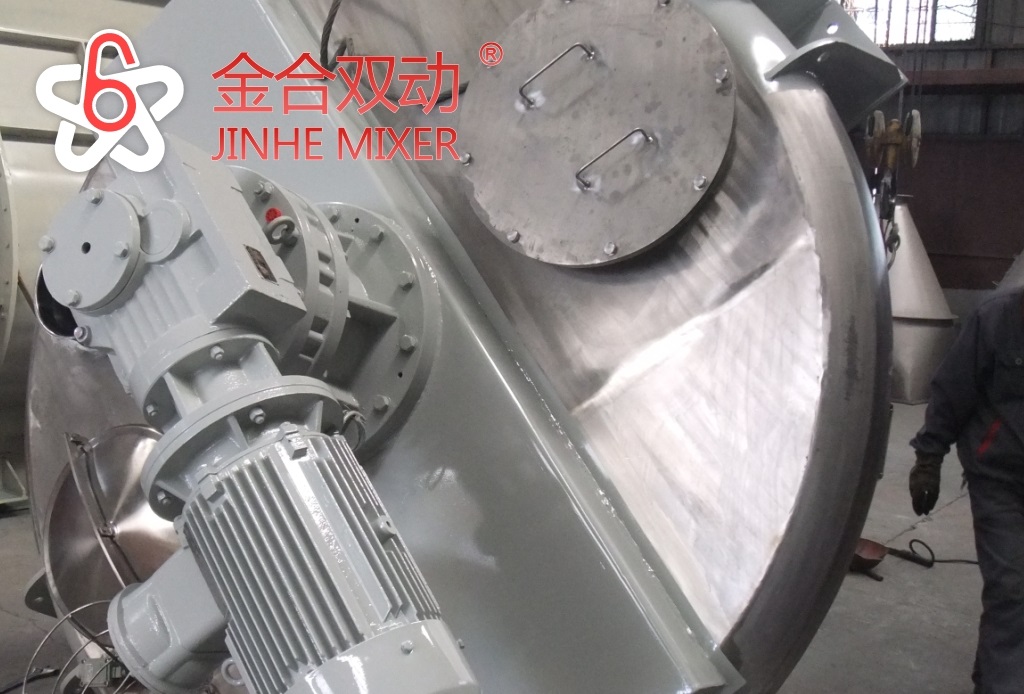

EQUIPMENT AND CONSTITUTION PICTURE
Model\Project
Total Volume(M³)
Loads coefficient
Electrical machiney power(Kw)
Size(mm)× Max-diameter ×High
Equipment weight(Kg)
JHLS-60
0.06
0.4-0.6
1.5
φ630×1451
150
JHCS-100
0.1
0.4-0.6
1.5
φ715×1569
250
JHCS-300
0.3
0.4-0.6
2.2
φ920×1960
550
JHCS-500
0.5
0.4-0.6
3
φ1140×2320
600
JHCS-1000
1
0.4-0.6
4
φ1480×2895
1200
JHCS-1500
1.5
0.4-0.6
5.5
φ1633×3210
1350
JHCS-2000
2
0.4-0.6
5.5
φ1816×3495
1500
JHCS-3000
3
0.4-0.6
7.5
φ2040×3760
2300
JHCS-4000
4
0.4-0.6
11
φ2250×4425
2520
JHCS-6000
6
0.4-0.6
15
φ2548×4940
3000
JHCS-8000
8
0.4-0.6
18.5
φ2780×5360
4500
JHCS-10000
10
0.4-0.6
22
φ3018×5815
5500
JHCS-12000
12
0.4-0.6
22
φ3204×6100
5900
JHCS-15000
15
0.4-0.6
30
φ3442×6540
6600
JHCS-20000
20
0.4-0.6
37
φ3805×7420
9800
JHCS-25000
25
0.4-0.6
37
φ4086×7800
10200
JHCS-30000
30
0.4-0.6
45
φ4330×8200

11500
\
\
\
\
\
\
