\\\Operation:

1) Turn on the power switch and pour materials into the hopper.

2) Turn on the switches of the vibrator and the turntable.

3) Put bottles on the pallet and the machine starts to work.

4) Take out the filled bottle and replace it with a new one. Repeat this step for continuous counting.

Describtion:

1.The number of pellet counted can be arbitrarily set up among 0-9999.
2.Stainless steel material for whole machine body can meet with GMP specification.
3.Easy to operate and no special training required .
4.Precision pellet count with special electrical eye protection.
5.Rotary counting design with fast and smooth operation.
6.The rotary pellet counting speed can be adjusted with stepless according to the bottle putting speed manually .
7.The interior of the machine is quipped with dust cleaner to avoid the dust effect on the machine.
8.Vibration feeding design, the vibration frequency of the particle hopper can be adjusted with stepless based on the needs of the medical pellet out put .

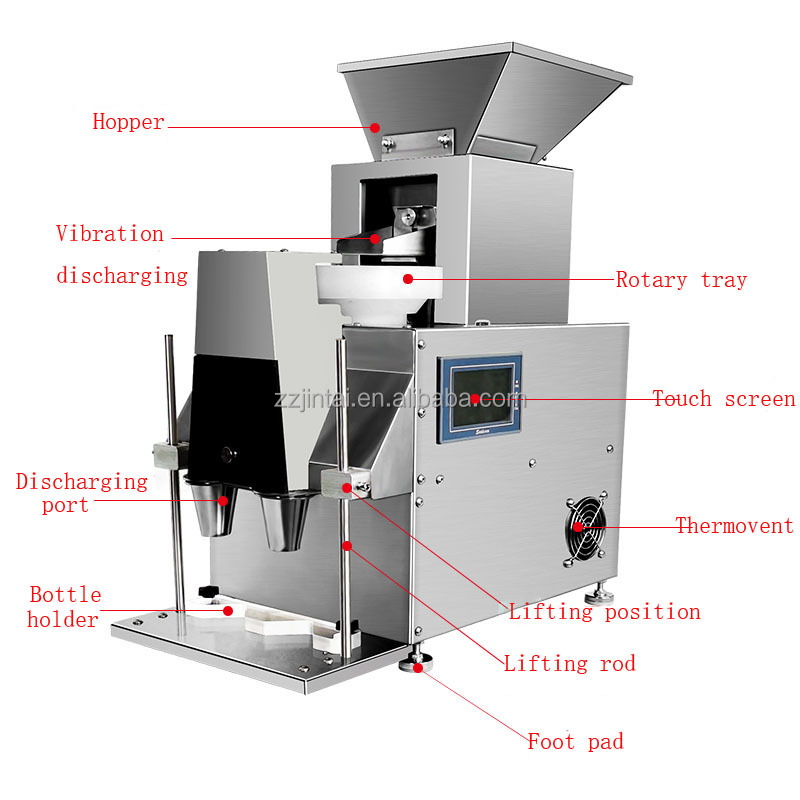

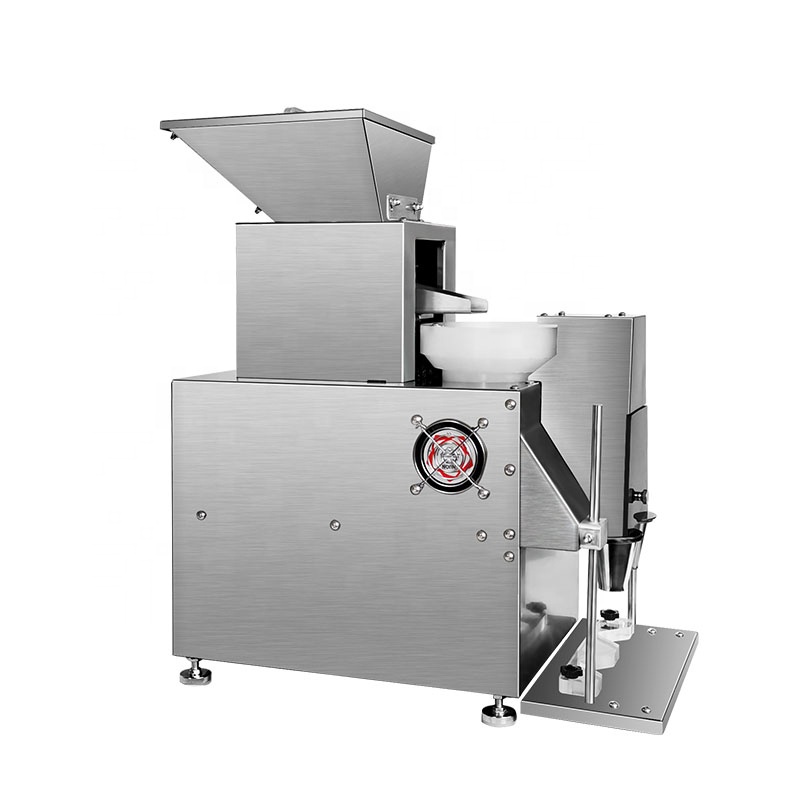

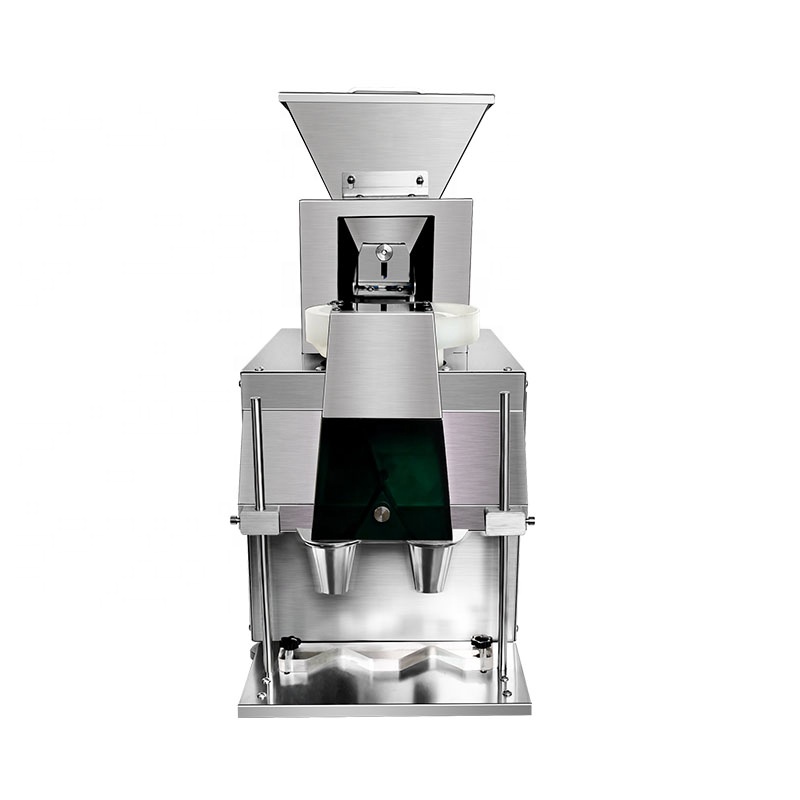

Parameter of NPJ-300 Automatic counting machine:

Model NPJ-300
Power 200W(Voltage customize)
Suitable size #00~#5 capsule and 4mm-18mm tablet.
Filling range 1~999pcs
Counting speed 500~1500pcs/min
Application This machine is mainly used for counting and bottling of various types of capsules, tablets, soft capsules, honey pills and other articles with regular shapes.
Machine size 570*300*660mm
Machine weight 30kg

\\

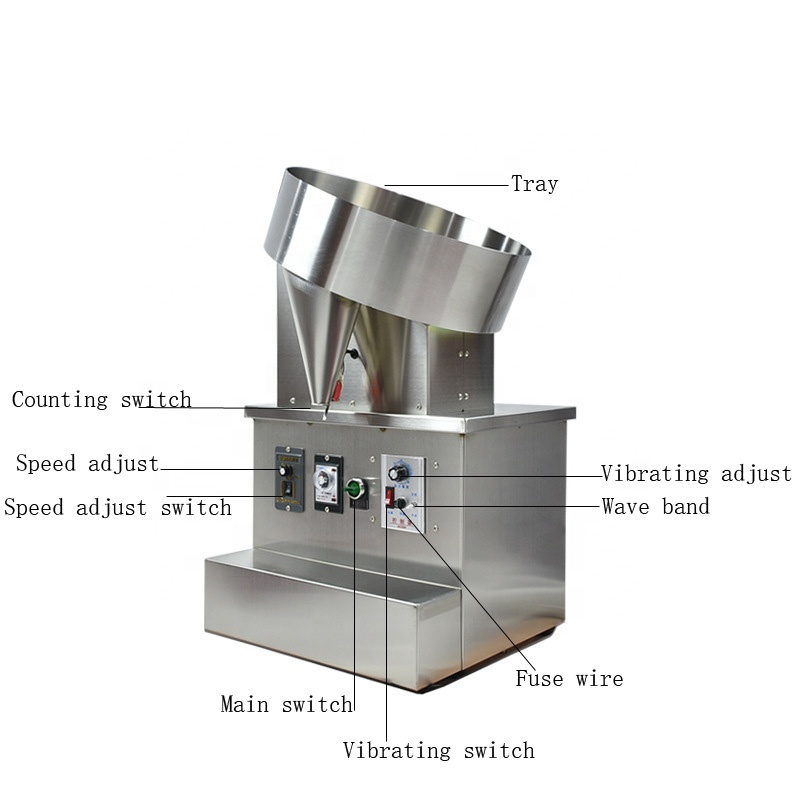

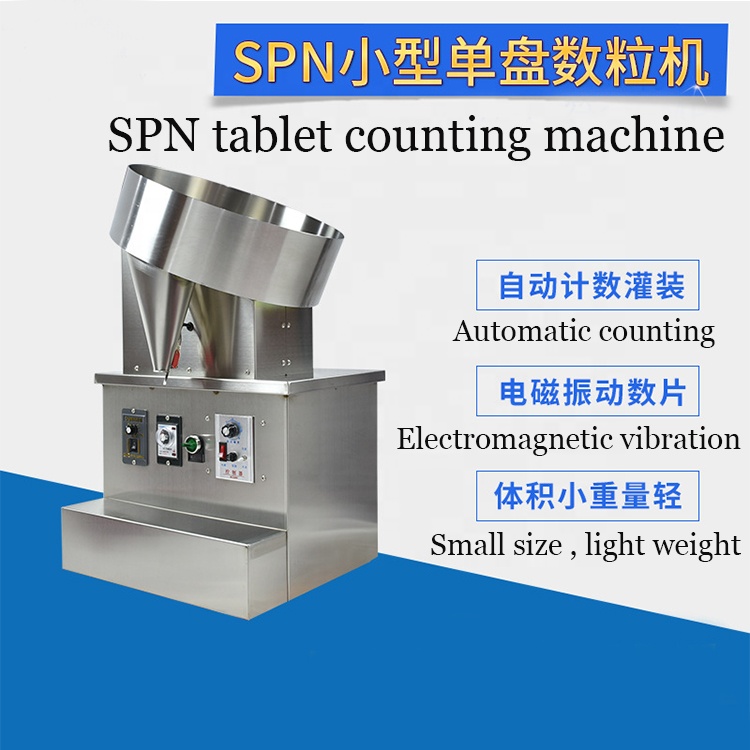

Parameter of SPN single plate counting machine:
Model SPN400
Power 80W(Voltage customize)
Counting range #00 and #0 Capsules Max. 100pcss/bottle;#1 Capsule Max. 150pcs/bottle;Tablet 10-500pcs/bottle according to tablet size(diameter 12mm and thickness 5mm circle tablet can be 500pcs/bottle one time, can filling 2botlles one rotary)
Holes of tray #00 Max. 200holes; #0 Max. 240holes; #1 Max. 280holes; Tablet or other pill according to size.
Application This machine is mainly used for counting and bottling of various types of capsules, tablets, soft capsules, honey pills and other articles with regular shapes.
Machine size 420*420*780mm
Machine weight 45kg

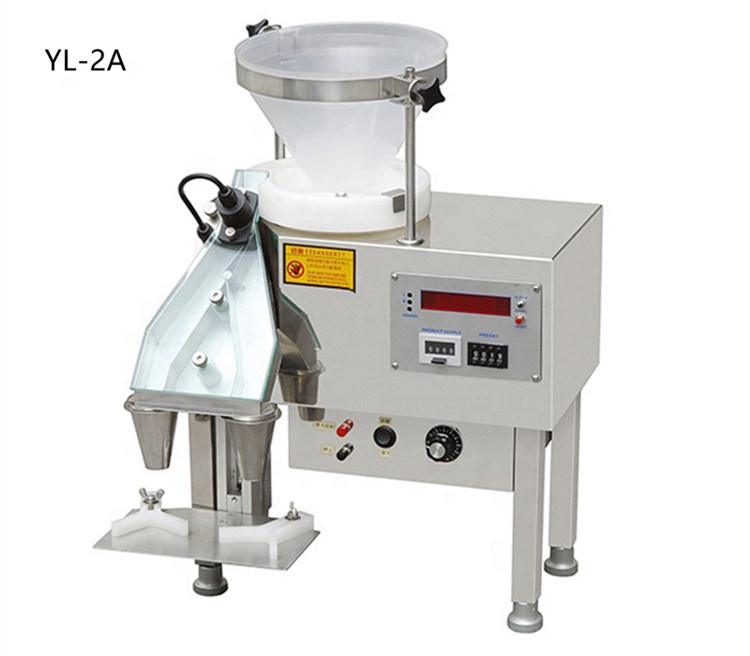

\\Parameter of YL Automatic counting machine:
Model YL-2A  YL-2  YL-4
Voltage  110-220V 50hz-60hz 110-220V 50hz-60hz 110-220V 50hz-60hz
Power 0.1KW  0.15KW  0.15KW
Output  500-1000 pcs/min  1000-1800 pcs/min  2000-3500 pcs/min
Size 440*370*580mm  810*720*840mm  920*740*880mm
Weight  20kg  65kg  78kg
