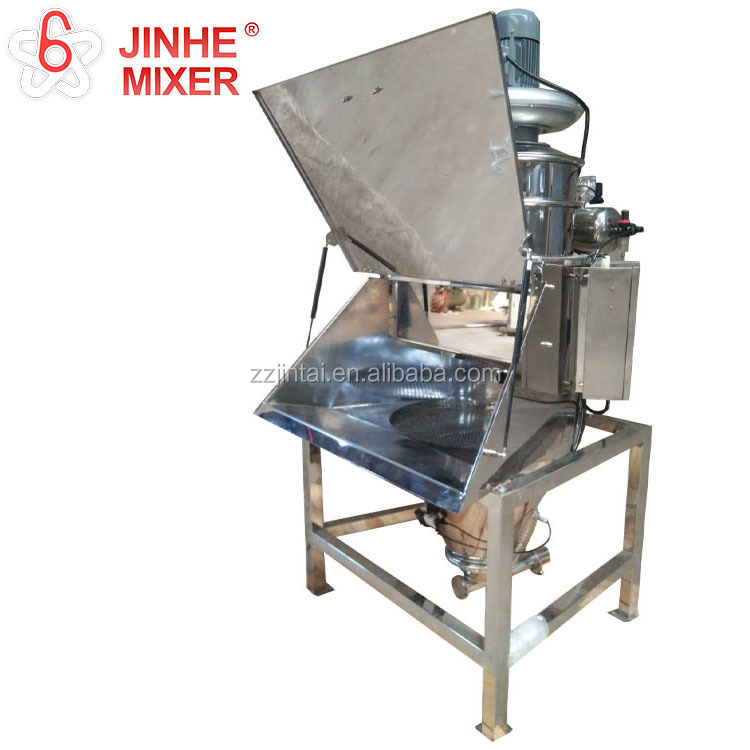

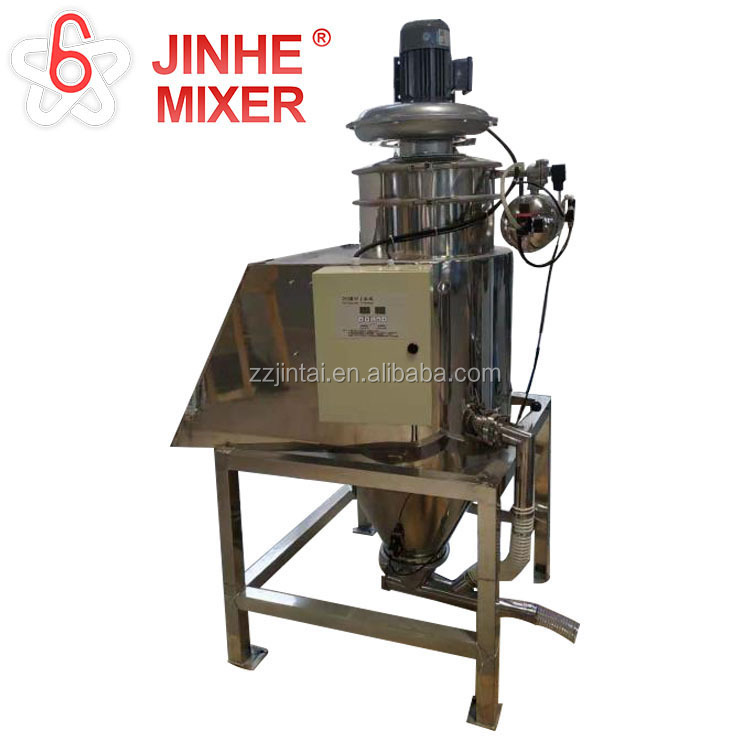

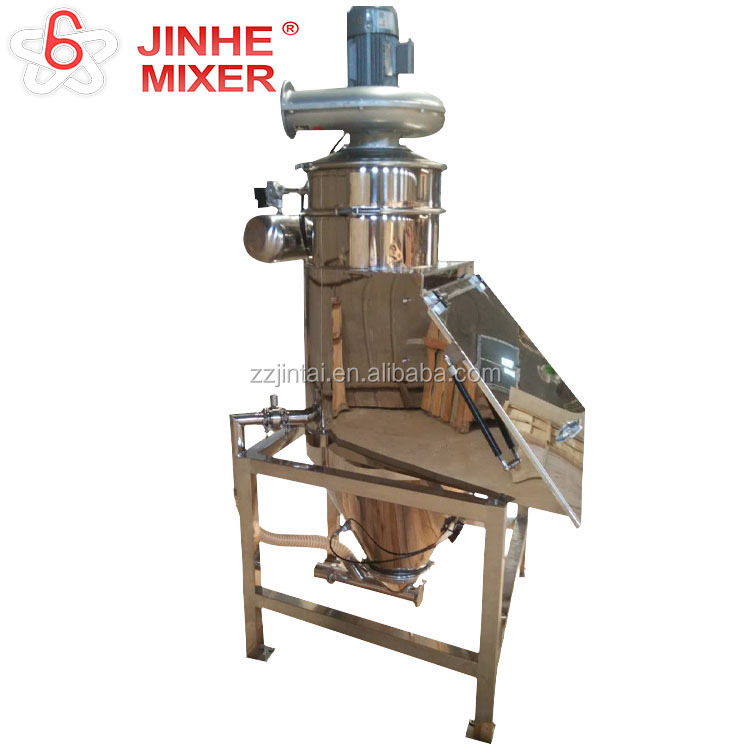

JINHE brand Vacuum feed station


\\\

Brief Introduction
Bag dump stations (also known as bulk material dumping station or manual dumping station ) are used for solve dust polllution when dumping powder,pellets,particles,flakes,fiber,or bulk solids .
Different quantitative feeder can be selected according to the different capacity and process reuqirements.
It can be used to positive pressure feeding as well as negative pressure feeding.

Model

  JHVC-200

   JHVC-300

     JHVC-800

    JHVC-1500



Maximum static pressure (Kpa)

30

34

            40

              42



Work stress (Kpa)

<20

<22

           <28

             <31



Maximum volume (m3/h)

300 330

            370

             480



Motor power(Kw)

3

4

             4

7.5

Electrical source

                                               Customized

Transmission capacity 5(m)

350

500

         1000

           1500



10(m)

250

350

          800

           1200



(Kg/h)15(m)

150

250

           600

            1000



Transporting pipe diameter

 (mm)

50

50

            63

             63



Inspiratory tube diameter (mm)

63

63

            76

              76



Applicable equipment

All kinds of extrusion and injection molding machine, various mixing machine
