Introduction:

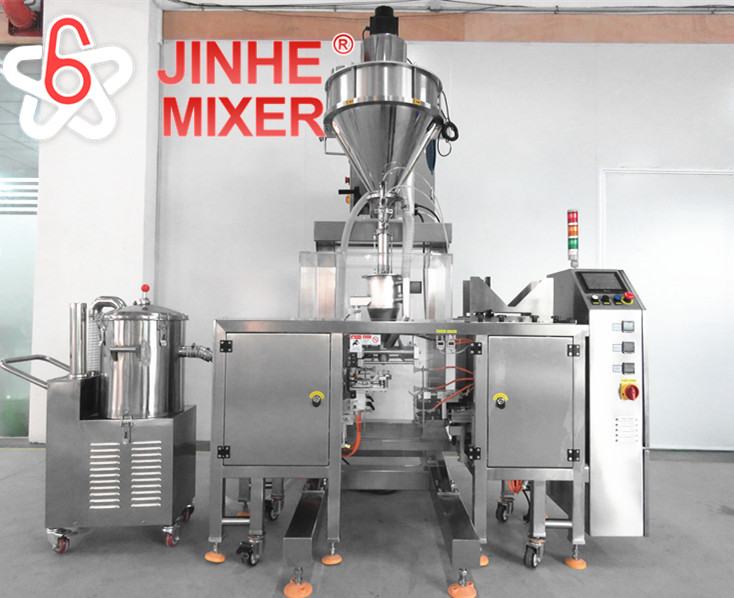

Combined parts:
•Screw Conveyor      •Auger Filler (Dynamic Weight System) with Stand on MDP Machine
 Spoon Dispenser     Mini Doypack Machine
Technical parameter:

Packing Speed : 5-8 bags/min\
\
\
\
Model No.     JHZP-1 JHZP-2
Bag Width 130-280mm       130-300mm
Bag Length 130-300mm       130-400mm
Bag Type Stand-up bag, pillow bag Stand-up bag, pillow bag
Power Supply 220V, 50HZ 220V, 50HZ
Air Consumption 7.0 CFM@80 PSI 7.0 CFM@80 PSI
Pneumatic Parts PIAB Vacuum Generator, Pneumatics component Airtac from Taiwan PIAB Vacuum Generator, Pneumatics component Airtac from Taiwan

Applications:
*Humanism design, easy dismantle, no need any tools could dismantle the contact parts to clean,
*No any dead angle could leave so very suit for grocery industry. This whole process only one person one minute will be finished, save labor and high efficiency.
*The hopper with arch breaker device, help you to shoot bridge problem.

*Update Device: Polished screw, side-opening tube.

Optional accessories:
*Standard control box *Safety Net *Vibration Sieve *Hopper cover *Dust cover * Blender for anti-bridge.

Main Technical Specification:
Technical Specifications
Model No JHSC1 JHSC2 JHSC3
Capacity 3-5m3/h 5-7m3/h 8-10m3/h
Hopper Size 230L
Discharging Height ≤3000mm(optional)
Material Stainless Steel 304
A 970mm
B 910mm
Power 3-phase 380V 50Hz,0.75-5.5KW
Machine Weight 70-350Kg


Unique hopper design is our one of scientific and technological achievements for studying many years in powder packaging industryand access to national utility model patents, in line with GMP certification requirements
*There are economical and convenient hopper type can be selected. Economy model the cone hopper is one set, have to remove the cone then can be cleaned; convenient model: the front half hopper could be opened horizontally, as easy as opening doors and windows, cleaning faster and easier.
*Whole machine set used SUS304, waterproof motor (IP65), could wash with water, and meet the food industry requirements.
Optional Parts:*Spinner: suit for free flow product * Closure: suit for too free flow product* Dust Collector: suit for flying powder.
*
 Bag Clamping Weighing Function: suit for high accuracy requests, the accuracy could do ≤±2g

Technical Specifications
Model No JHAF -350
Metering Model By auger or load cell feedback(optional function)
Dosing Range 1000g
Dosing Accuracy ± 0.3-1%(depend on actual product and speed)
Container Model Can or Bag
Hopper 25L
Filling Speed Max: ≤20bags/min
Power & Output Single-phase 220V  50/60Hz ,3KW
Machined Size 780L*730W*1690Hmm
\
